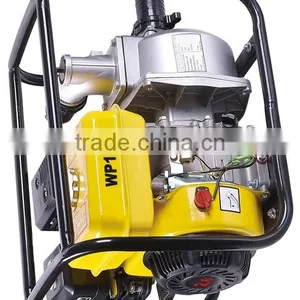

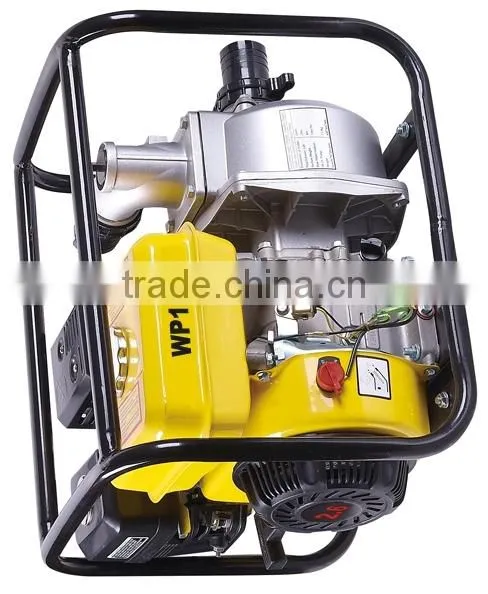

Honda engine 5.5HP 1.5inch gasoline wp15 water pump
Feature
1.Powered by HONDA engine,the strong and lightweight die-cast aluminium pump delivers high
volume of water.
2. Economical, reliable and durable
3. CE, SONCAP, ISO certification approved
4. One year warranty
Specification
Honda engine 5.5HP 1.5inch gasoline wp15 water pump

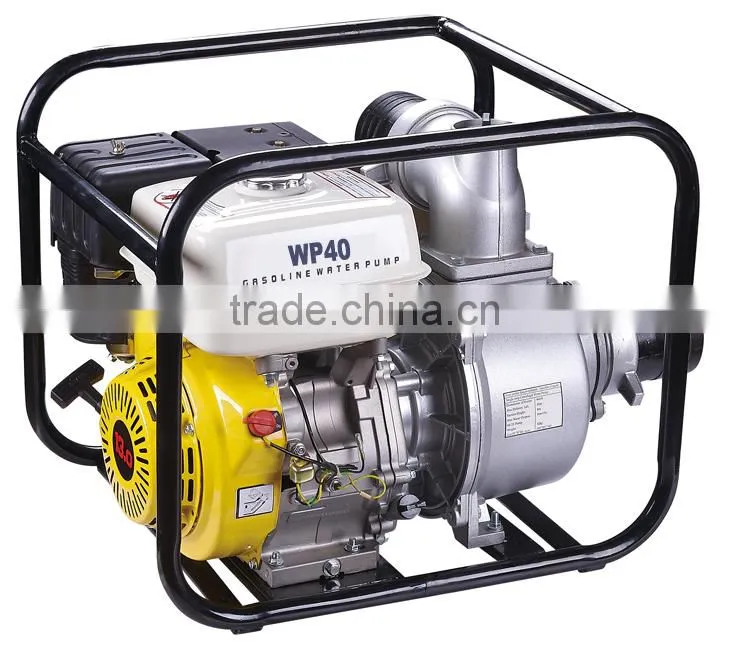

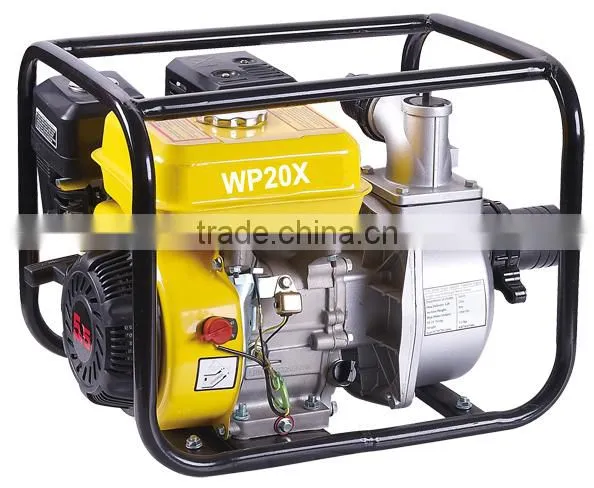

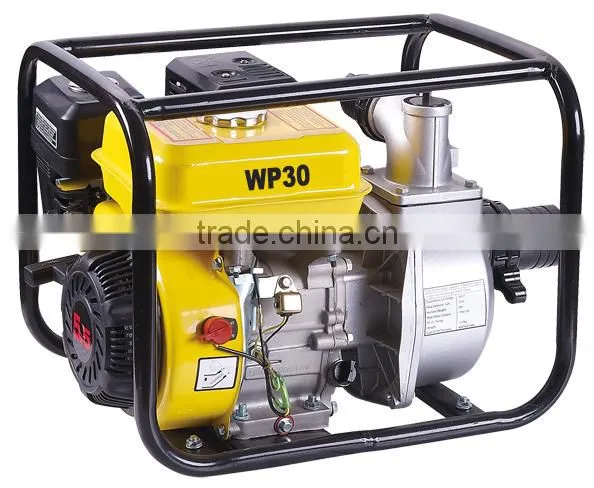

Type | WP15B | WP20 | WP30 | WP40 |
| Outlet Size(mm) | 40(1.5inch) | 50(2inch) | 80(3inch) | 100(4inch) |
| Inlet size(mm) | 40(1.5inch) | 50(2inch) | 80(3inch) | 100(4inch) |
| Speed (rpm) | 3600 | 3600 | 3600 | 3600 |
| Displacement Q.max(m3/h) | 18 | 30 | 60 | 90 |
| Lift H.max(m) | 14 | 25 | 28 | 25 |
| Suction(m) | 6 | 7 | 7 | 7 |
| Engine Model | 154F | 168F | 168F-1 | 188F |
| Engine Type | ||||
| Bore x Stroke(mm) | 54*38 | 68x45 | 68x54 | 88x64 |
| Displacement(cm3) | 87 | 163 | 196 | 389 |
| Compression Ratio | 7.7:1 | 8.5:1 | 8.5:1 | 8.0:1 |
| Max Power Output(HP/rmp) | 2.5/3600 | 5.5/3600 | 6.5/3600 | 13/3600 |
| Max Torque(Nm) | 3.5 | 10.8 | 13.2 | 26.5 |
| Start Model | Recoil and hand -operated | |||
| Air Cleaner | semi-dry | |||
| Fuel Tank Capacity (L) | 1.6 | 3.6 | 3.6 | 6.5 |
| Min Fuel Consumption(g/Kw.h) | 360 | 360 | 360 | 325 |
| Oil Capacity(L) | 0.37 | 0.6 | 0.6 | 1.1 |
| Packing Dimensions (mm) | 450*345*360 | 485x385x380 | 510x385x425 | 635x455x545 |
| G.W/N.W(Kg) | 17 | 22 | 23 | 43/42 |
About US
TAIZHOU NEWLAND MACHINERY CO.,LTD,exports gasoline generator,
diesel generator, pumps, engines, gasoline high pressure washer,air compressor, etc, based on over ten years’s export experience. Fast-delivery time (15-20days for new customers, 7-10days for old customers) and the monthly output ( over 30000 units ) ensure Newland to become one of the best choice for all customers.
Company Show
Workshop
Spare parts Testing
Production

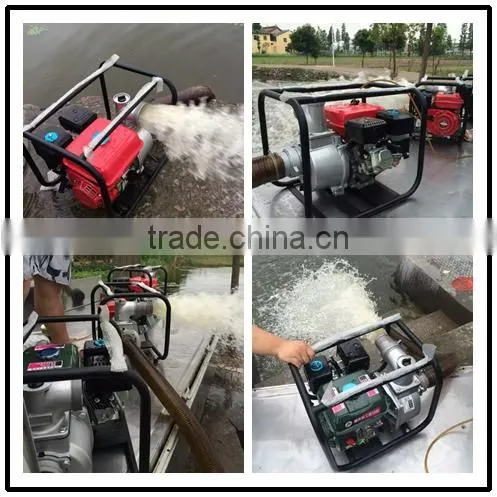

Product Testing
Warehouse
Loading
1Q: What is the Trade terms? What’s the nearest port?
A: EXW, FOB, CFR, CIF.(Taizhou)
2Q: What is your MOQ of this item?
A: 50 sets
3.Q: Are you manufactory or Trading Company?
A: We are manufactory in Zhejiang province, China
4Q: Is it all right to make customer's own brand name
A: Sure, with your authorization of brand
5Q: What are your payment terms?
A: T/T 30% deposit, 70% balance should be paid against the B/L copy.
T/T 30% deposit,70% balance irrevocable L/C at sight
6Q: How long is your warranty?
A: One year or 500hours (accord to whichever reach first) from Ex-Factory date.
7Q: What is the delivery time?
A: 15~20 days after receiving your deposit or original L/C.
8.Q: What is your company production capacity?
A: 20000-30000 Sets per month against your orders
