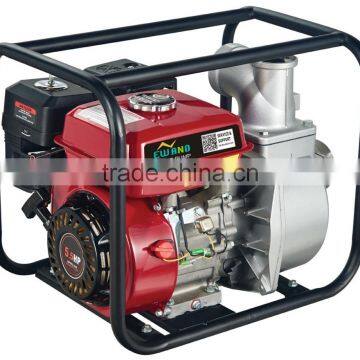

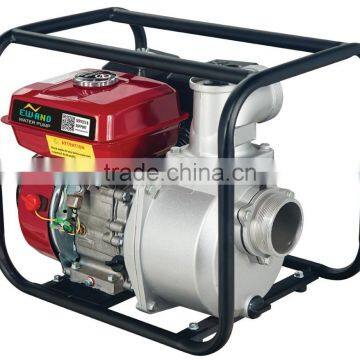

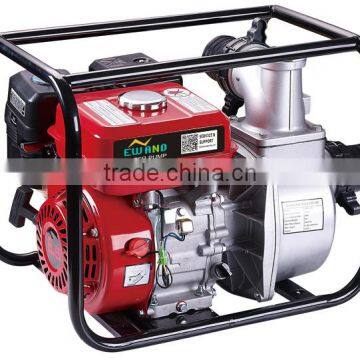

Honda engine 5.5HP WP15 1.5inch gasoline water pump
Feature
1.Powered by HONDA engine,the strong and lightweight die-cast aluminium pump delivers high
volume of water.
2. Economical, reliable and durable
3. CE, SONCAP, ISO certification approved
4. One year warranty
Specification

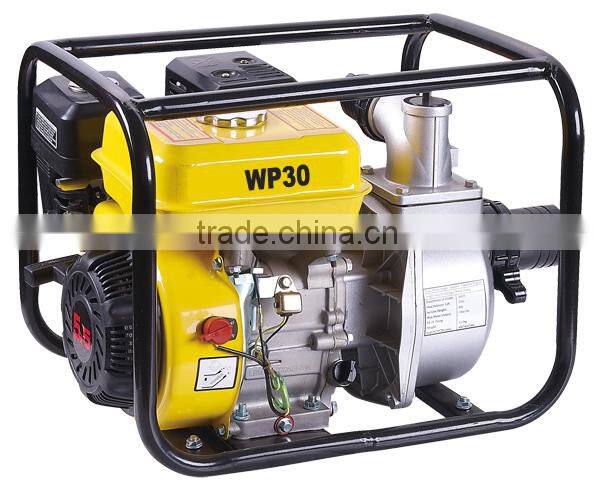

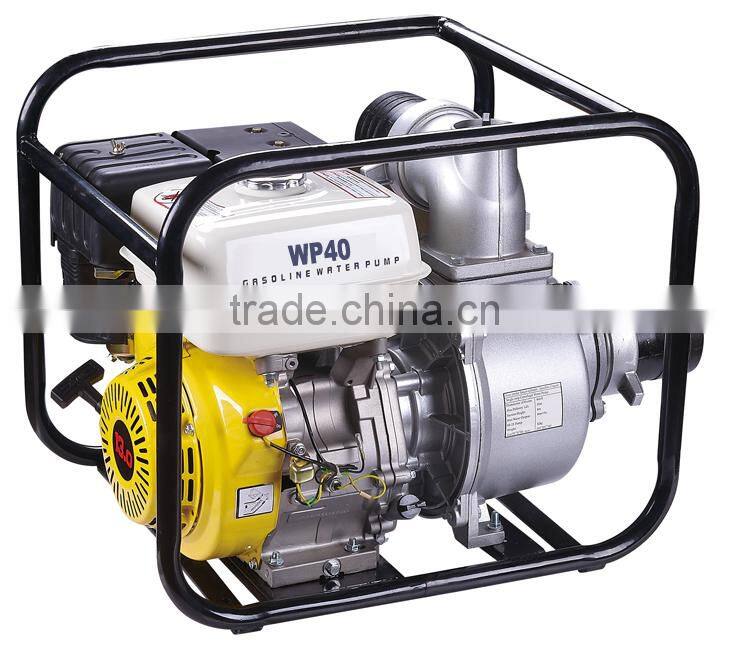

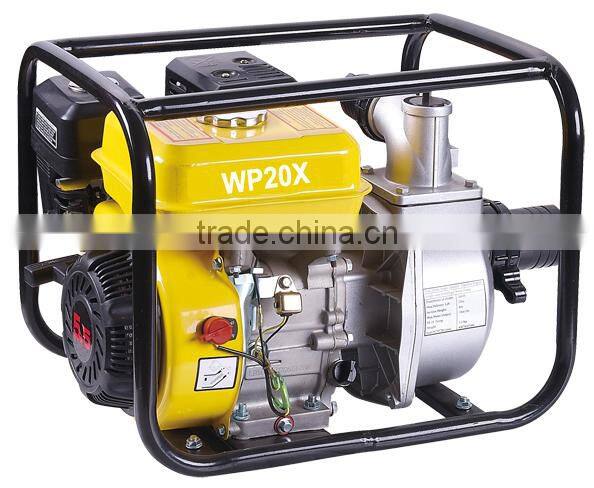

Type | WP15B | WP20 | WP30 | WP40 |
| Outlet Size(mm) | 40(1.5inch) | 50(2inch) | 80(3inch) | 100(4inch) |
| Inlet size(mm) | 40(1.5inch) | 50(2inch) | 80(3inch) | 100(4inch) |
| Speed (rpm) | 3600 | 3600 | 3600 | 3600 |
| Displacement Q.max(m3/h) | 18 | 30 | 60 | 90 |
| Lift H.max(m) | 14 | 25 | 28 | 25 |
| Suction(m) | 6 | 7 | 7 | 7 |
| Engine Model | 154F | 168F | 168F-1 | 188F |
| Engine Type | ||||
| Bore x Stroke(mm) | 54*38 | 68x45 | 68x54 | 88x64 |
| Displacement(cm3) | 87 | 163 | 196 | 389 |
| Compression Ratio | 7.7:1 | 8.5:1 | 8.5:1 | 8.0:1 |
| Max Power Output(HP/rmp) | 2.5/3600 | 5.5/3600 | 6.5/3600 | 13/3600 |
| Max Torque(Nm) | 3.5 | 10.8 | 13.2 | 26.5 |
| Start Model | Recoil and hand -operated | |||
| Air Cleaner | semi-dry | |||
| Fuel Tank Capacity (L) | 1.6 | 3.6 | 3.6 | 6.5 |
| Min Fuel Consumption(g/Kw.h) | 360 | 360 | 360 | 325 |
| Oil Capacity(L) | 0.37 | 0.6 | 0.6 | 1.1 |
| Packing Dimensions (mm) | 450*345*360 | 485x385x380 | 510x385x425 | 635x455x545 |
| G.W/N.W(Kg) | 17 | 22 | 23 | 43/42 |
About US
TAIZHOU NEWLAND MACHINERY CO.,LTD,exports gasoline generator,
diesel generator, pumps, engines, gasoline high pressure washer,air compressor, etc, based on over ten years’s export experience. Fast-delivery time (15-20days for new customers, 7-10days for old customers) and the monthly output ( over 30000 units ) ensure Newland to become one of the best choice for all customers.
Company Show
Workshop
Spare parts Testing
Production
Product Testing
Warehouse

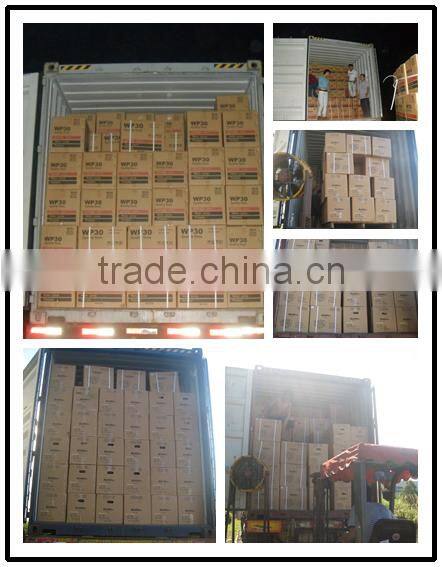

Loading
1Q: What is the Trade terms? What’s the nearest port?
A: EXW, FOB, CFR, CIF.(Taizhou)
2Q: What is your MOQ of this item?
A: 50 sets
3.Q: Are you manufactory or Trading Company?
A: We are manufactory in Zhejiang province, China
4Q: Is it all right to make customer's own brand name
A: Sure, with your authorization of brand
5Q: What are your payment terms?
A: T/T 30% deposit, 70% balance should be paid against the B/L copy.
T/T 30% deposit,70% balance irrevocable L/C at sight
6Q: How long is your warranty?
A: One year or 500hours (accord to whichever reach first) from Ex-Factory date.
7Q: What is the delivery time?
A: 15~20 days after receiving your deposit or original L/C.
8.Q: What is your company production capacity?
A: 20000-30000 Sets per month against your orders
