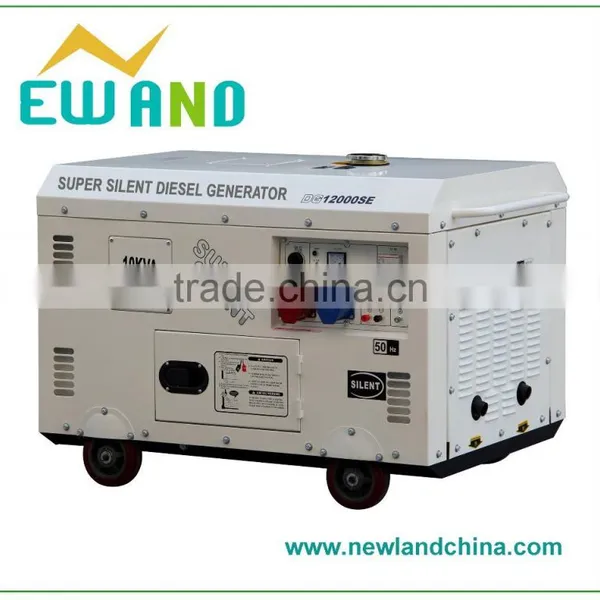

9-11KW E- start 2 cylider sound proof generator diesel
Feature
1. Overload and low oil warning for safe running.
2. AVR alternator provides stable voltage and current.
3. Powered by 4-stroke air-cooled diesel engine.
4. Large-capacity mufflers for super silent operation.
5. Portable, easy to fit wheels and handle.
6. One year warranty with free spare parts.
Specification
| 9-11KW E- start 2 cylider sound proof generator diesel | |||||||||||
| DG4500SE-A/B/S | DG6500SE-A/B/S | DG7500SE-A/B/S | DG8500SE-A/B/S | DG12000SE | DG15000SE | ||||||
| GENERATOR | |||||||||||
| Frequency (HZ) | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | |||||
| Max.output (KW) | 3.3/3.5 | 5/5.5 | 5.5/6 | 6.5/7 | 9/9.5 | 10/11 | |||||
| Rated output(KW) | 3/3.3 | 4.6/5 | 5/5.5 | 6/6.5 | 8.5/9 | 9/10 | |||||
| Rated AC Voltage(V) | 120,220,230,120/240,220/380 | ||||||||||
| Power Factor | 1 | 1 | 1 | 1 | 1 | 1 | |||||
| DC output (V) | 12V/8.3A | ||||||||||
| Phase | Single Phase | ||||||||||
| Alternator Type | Self-excited,2-pole, Single alternator | Self-excited | |||||||||
| Starting System | electric | ||||||||||
| Noise Level (dB(A/7m) | 68-72 | 86dB | |||||||||
| Fuel Tank Capacity (L) | 16 | 16/30 | 30 | 30 | |||||||
| Continuous Running Time (hr) | 8.5/7.8 | 8.5/7.8 | 8.5/7.8 | 8.5/7.8 | 9.4/8.4 | 9.4/8.4 | |||||
| ENGINE | |||||||||||
| Engine Model | 178F | 186FA | 188FA | 192FB | 2V86 | 2V88 | |||||
| Engine Type | single-cylinder, vertical,4-stroke, air-cooled diesel engine | two-cylinder, vertical,4-stroke air-cooled diesel engine | |||||||||
| Bore×Stroke | 78×64 | 86×72 | 88×75 | 92×75 | 86×72 | 88×72 | |||||
| Fuel Consumption rate g/kw/h | ≤295 | ≤280 | ≤280 | ≤280 | ≤268 | ≤268 | |||||
| Fuel | 0# or -10# light diesel oil | ||||||||||
| Lubrication Oil Volume (L) | 1.65 | 1.7 | |||||||||
| Combustion System | Direct Injection | ||||||||||
| STANDARD FEATURES | |||||||||||
| Voltmeter | YES | ||||||||||
| AC Output Socket | 2 | 2 | 2 | 2 | 2 | 2 | |||||
| AC Circuit Breaker | YES | YES | YES | YES | YES | YES | |||||
| Oil warning Light | YES | YES | YES | YES | YES | YES | |||||
| Oil Alert | YES | YES | YES | YES | YES | YES | |||||
| OPTIONAL FEATURES | |||||||||||
| DC circuit breaker | OPTIONAL | ||||||||||
| Four sides wheel | OPTIONAL | ||||||||||
| Three phase voltage | OPTIONAL | ||||||||||
| Digital meter | OPTIONAL | ||||||||||
| ATS | OPTIONAL | ||||||||||
| Remote control | OPTIONAL | ||||||||||
| Welding | OPTIONAL | ||||||||||
| PACKING | |||||||||||
| Dimention(LxWxH)(cm) | 85*56*76 | 95*56*76 | 95*56*76 | 95*56*76 | 123*75*84 | 123*75*84 | |||||
| Net Weight(kgs) | 144 | 155 | 156 | 156 | 265 | 265 | |||||
| Container quantity 20GP | 72 | 72 | 72 | 72 | 26 | 26 | |||||
| 40HQ | 144 | 144 | 72 | 72 | 52 | 52 | |||||
TAIZHOU NEWLAND MACHINERY CO.,LTD,exports gasoline generator,
diesel generator, pumps, engines, gasoline high pressure washer,air compressor, etc, based on over ten years’s export experience. Fast-delivery time (15-20days for new customers, 7-10days for old customers) and the monthly output ( over 30000 units ) ensure Newland to become one of the best choice for all customers.
Company Show
Spare parts Testing
Production
Product Testing
Warehouse
Loading
1.Q: What is the Trade terms? What’s the nearest port?
A: EXW, FOB, CFR, CIF.(Taizhou)
2.Q: What is your MOQ of this item?
A: 10 sets
3.Q: Are you manufactory or Trading Company?
A: We are trading company based on our own factory
in Zhejiang province, China
4.Q: Is it all right to make customer's own brand name
A: Sure, with your authorization of brand.
We have over 10 years OEM/ODM experience.
5.Q: What are your payment terms?
A: T/T 30% deposit, 70% balance should be paid against the B/L copy.
D/P for regular good reputation customers.
6.Q: How long is your warranty?
A: One year or 500hours (accord to whichever reach first) from Ex-Factory date.
7.Q: What is the delivery time?
A: 20-25days after receiving your deposit or original L/C.
8.Q: What is your company production capacity?
A: 20000-30000 Sets per month against your orders
9.Q: Which engine type about your products?
A: 1-Cylinder;4-stroke,air-cooled diesel engine
10.Q: Is your rotor and stator aluminum wire or copper wire?
A: 100% copper
