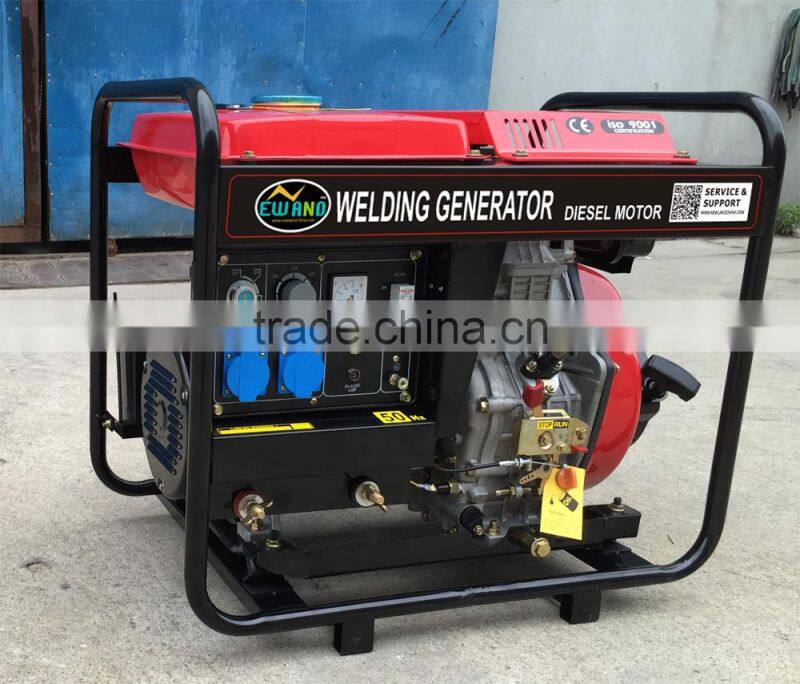

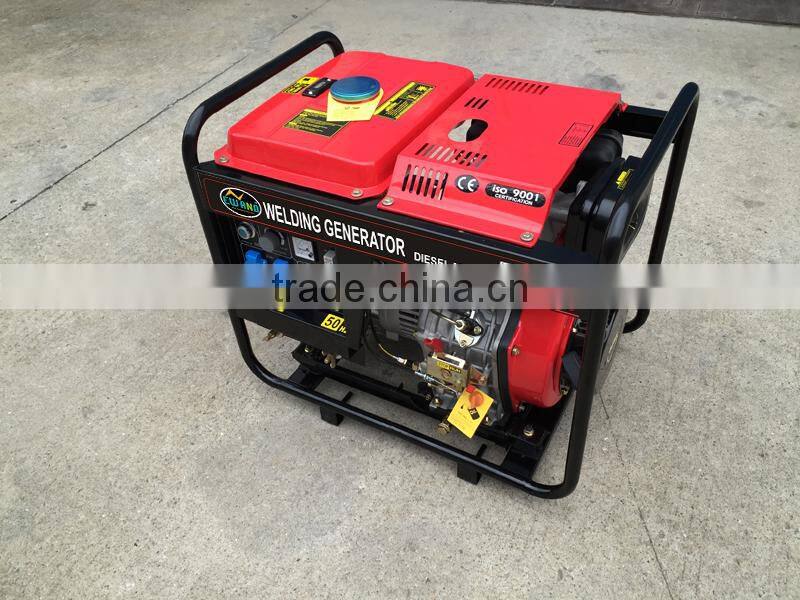

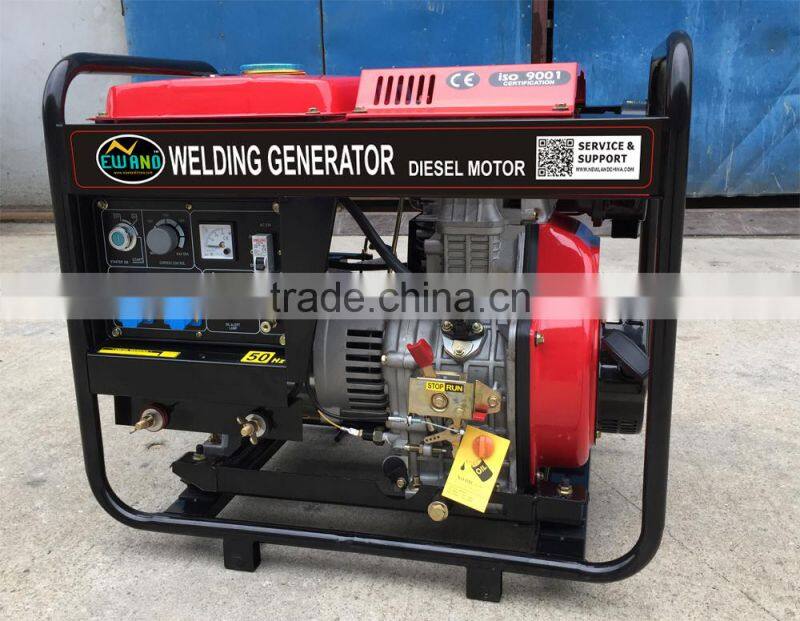

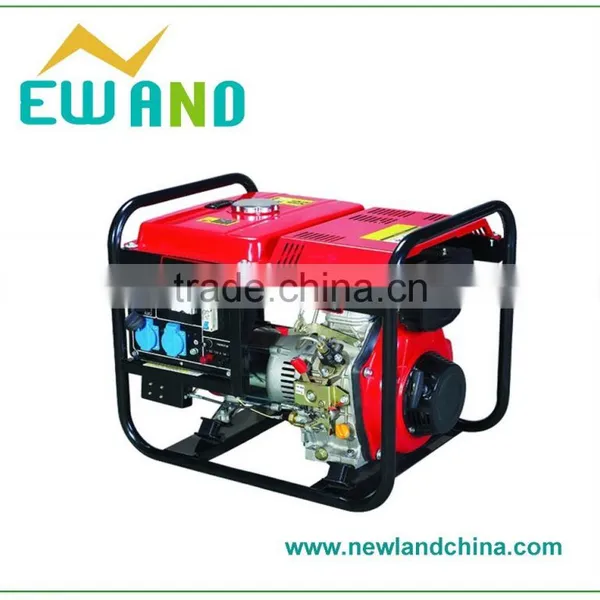

open frame 5KW electric single phase diesel welding generator
Feature
1. Overload and low oil warning for safe running.
2. AVR alternator provides stable voltage and current.
3. Powered by 4-stroke air-cooled diesel engine.
4. Large-capacity mufflers for super silent operation.
5. Portable, easy to fit wheels and handle.
6. One year warranty with free spare parts.
Specification
open type 5KW electric single phase diesel welding generator | ||
| DG6000EW | DG6500SEW | |
| GENERATOR | ||
| Frequency(HZ) | 50/60HZ | |
| Rated.AC voltage(V) | 230,240 | |
| Rated Current (A) | 7.8/9.2 | |
| Rated output(kva) | 1.8/2.2 | |
| Rated speed (rpm) | 3000/3600 | |
| Welder | ||
| Welding no-load voltage (V) | 55-65 | |
| Working voltage (V) | 26-30 | |
| Rated Current (A) | 160 | |
| Range of current (A) | 0-180 | |
| Welding efficiency | 60% | |
| Power factor (cos) | 1 | |
| Phase | 1 | |
| Noise level(at 7m) | 80-85db | |
| ENGINE | ||
| Model | HR186FA | |
| Engine type | single-cylinder, vertical,4-stroke air-cooled diesel engine | |
| Bore×stroke (mm) | 86×72 | |
| Displacement Capacity (cc) | 418cc | |
| Fuel | 0# or -10# light diesel oil | |
| Lubrication oil volume (L) | 1.65 | |
| Combustion system | Direct Injection | |
| STANDARD FEATURES | ||
| Voltmeter | YES | |
| AC Output Socket | 2 | |
| Ac circuit breaker | ||
| OPTIONAL FEATURES | ||
| Oil warning light | YES | |
| Oil alert | YES | |
| Dccircuit breaker | OPTIONAL | |
| Calculagraph | OPTIONAL | |
| Big wheel | OPTIONAL | |
| Three phase voltage | OPTIONAL | |
| DIMENSIONS | ||
| Dimention(LxWxH)(cm) | 70*47*60 | 925x525x680 |
| Net Weight(kgs) | 102 | 170 |
| 20FT loading pcs | 102 | 72 |
TAIZHOU NEWLAND MACHINERY CO.,LTD,exports gasoline generator,
diesel generator, pumps, engines, gasoline high pressure washer,air compressor, etc, based on over ten years’s export experience. Fast-delivery time (15-20days for new customers, 7-10days for old customers) and the monthly output ( over 30000 units ) ensure Newland to become one of the best choice for all customers.
Company Show
Spare parts Testing
Production
Product Testing
Warehouse
Loading
1.Q: What is the Trade terms? What’s the nearest port?
A: EXW, FOB, CFR, CIF.(Taizhou)
2.Q: What is your MOQ of this item?
A: 10 sets
3.Q: Are you manufactory or Trading Company?
A: We are trading company based on our own factory
in Zhejiang province, China
4.Q: Is it all right to make customer's own brand name
A: Sure, with your authorization of brand.
We have over 10 years OEM/ODM experience.
5.Q: What are your payment terms?
A: T/T 30% deposit, 70% balance should be paid against the B/L copy.
D/P for regular good reputation customers.
6.Q: How long is your warranty?
A: One year or 500hours (accord to whichever reach first) from Ex-Factory date.
7.Q: What is the delivery time?
A: 20-25days after receiving your deposit or original L/C.
8.Q: What is your company production capacity?
A: 20000-30000 Sets per month against your orders
9.Q: Which engine type about your products?
A: 1-Cylinder;4-stroke,air-cooled diesel engine
10.Q: Is your rotor and stator aluminum wire or copper wire?
A: 100% copper
