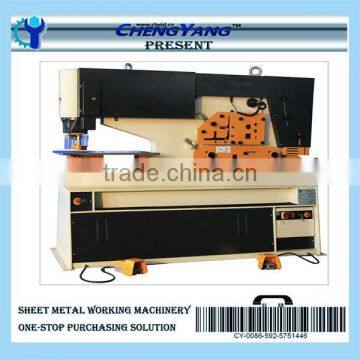

Multi 80 mild steel Hydraulic Ironworker Specification and Technical Data
- 20 Set / Sets per Month
- Xiamen Port China
- T/T
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic | Place of Origin | Fujian, China | |
| Brand Name | cheng yang | Model Number | Multi 80 | |
| Power(W) | 7.5 KW | Weight | 1925 KG |
Product Description
Multi 80 Hydraulic Ironworker Specification and Technical Data
Punching:
Max. Capacity: 28 * 20mm
Diameter*Thickness: 57 * 10 mm
Stroke Length: 55 mm
Throat Depth: 305 mm
Deep Throat model (optional): 625mm
Largest hole (standard): 57mm
Largest hole (optional): 160mm
Shearing:
Flat bar - Max. thickness: 300 * 20mm
Flat bar – Max. width: 450 * 15mm
Angle Flange trim max. 45°: 100 * 15mm
Angle Bar Cutting:
90°cutting: 150*13
45°cutting: 70 * 10
Section Cutting:
Round / Square: 45 mm
Channel / Beam (optional): 130 * 65mm
Tee (optional): 90 * 12 mm
Notching:
Material thickness: 12 mm
Width - Rectangle: 40 mm
Depth - Rectangle: 90 mm
Depth - Vee (optional): 60 mm
Technical Data:
Motor: 7.5 KW
Net weight: 1925 KG
