Metal Circular Saw Machine for Round and Square Bar
Specifications
1. Easy manual press
2. Quick adjusting vise for angular cuts the saw frame swivels
3. The HSS saw blade of our circular saw is highly efficient and durable.
4. The 24V low-voltage controlled hand switch is convenient for operation
5. The double clamp structure of CS-315 can quickly clamp materials and rotate 45°from side to side for cutting.
6. Our circular saw features a double speed motor and with low noise can slow down through worm and gear.
7. The safety hood of saw blade opens or closes according to the cutting needs, making it safety.
8. The cooling system of circular saw can prolong the service life of saw blade and improve the precision of the workpiece.
Main Specification
Item No. |
388019 |
388020 |
|
Model |
CS-315 |
CS-350 |
|
Max. blade size |
315mm |
350mm |
|
Capacity |
Circular @90° |
100mm(4’’) |
120mm(4.7’’) |
Rectangular @90° |
140x90mm(5.5”x3.5”) |
140x100mm(5.5”x4”) |
|
Circular @45° |
90mm(3.5”) |
105mm(4.1”) |
|
Rectangular @45° |
100x0mm(4”x3.5”) |
100x100mm(4”x4”) |
|
Blade speed @50HZ |
18,36rpm |
18,36rpm |
|
Vice opening |
145mm(5.7”) |
145mm(5.7”) |
|
Motor power |
750W 1HP/1.3kW 1.7HP(3PH) 1.1KW 1.5HP(1PH) |
||
Drive |
Gear |
Gear |
|
Packing size |
98x62x90cm(body) 77x58x47cm(stand) |
98x62x95cm(body) 77x58x47cm(stand) |
|
N.W/G.W |
185/207kg |
190/212kg |
|

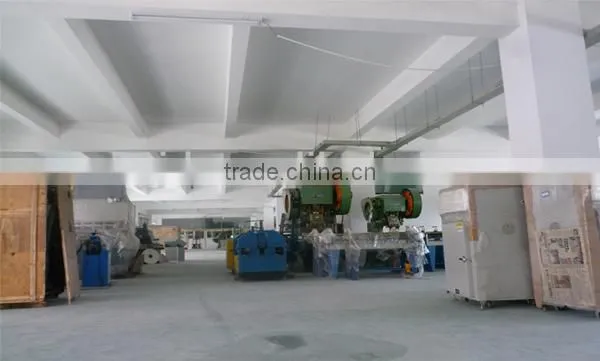

Company Environment
