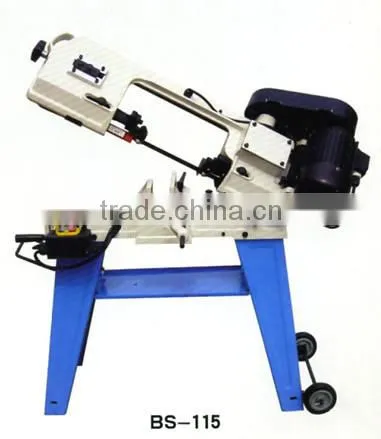

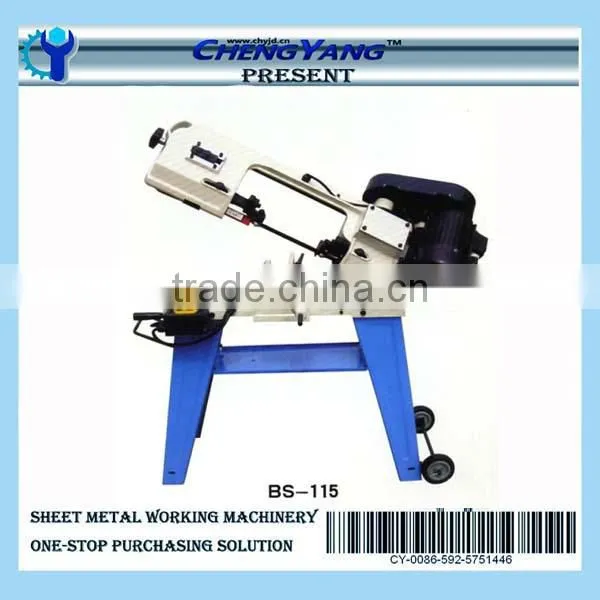

Mini Metal cutting band saw BS-115
Features
1. The maximum processing capacity is 115 mm (4.5”).
2. Light-weight design, suitable for field and construction site application
3. This band saw features a belt drive and 3-speed conversion.
4. The saw bow can rotate from 0° to 45°, and can be used vertically and horizontally.
5. It features quick and fixed clamping and is equipped with a block feeder (with fixed sawing length)
6. With a sizing device, machine will stop automatically after sawing materials.
Mini Metal cutting band saw BS-115 main Technical Specifications
Item No. |
388002 |
388003 |
|
Model |
BS-115 |
BS-115A |
|
Capacity |
Circular @90° |
115mm(4.5") |
115mm(4.5") |
Rectangular @90 ° |
100x150mm(4"x6") |
100x150mm(4"x6") |
|
Circular @45° |
100mm(4") |
100mm(4") |
|
Rectangular @45 ° |
60x100mm(2.4"x4") |
60x100mm(2.4"x4") |
|
Blade speed |
@ 60HZ |
24,35,61MPM |
24,35,61MPM |
@ 50HZ |
20,29,50MPM |
20,29,50MPM |
|
Blade size(MM) |
13x0.6x1538 |
13x0.6x1638 |
|
Motor power |
375W 1/2HP(3PH),550W 3/4HP(2PH) |
||
Drive |
V-belt |
V-belt |
|
Packing size(cm) |
97x46x46 |
108x48x56 |
|
N.W./G.W.(kg) |
68/72 |
76/95 |
|
Metal cuttiing band saw form our company
