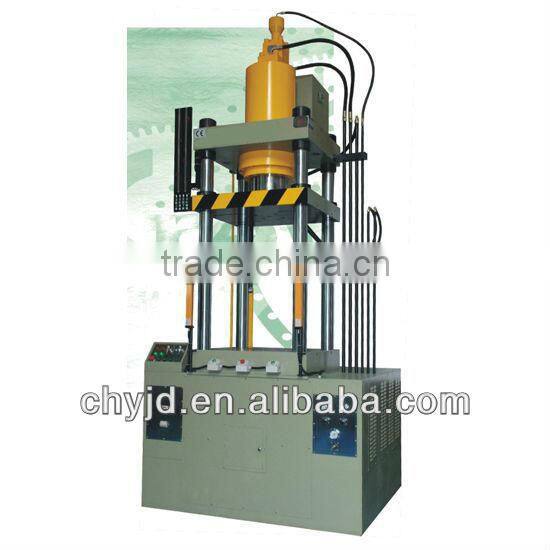

Y28 1300 Ton Double Action Drawing Press Machine

Y28 1300 Ton Double Action Drawing Press Machine thumbnail-1
Y28 1300 Ton Double Action Drawing Press Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Chengyang
Model Number:
Y28-1300
Contact Supplier Request Quote Chat Now
Xiamen Chengyang Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Chengyang
Model Number Y28-1300
Condition New

Y28 Series Double action Drawing Press Machine

Y28 1300 ton double action drawing press machine

One. Product Description

Y28 Series of models for sheet metal stretching, forming, straightening etc. process. For example: tableware, lighting, metal sheel, container vessel and other stretching and forming.



This serie of products, of professional design, selection of brand-name, imported hydraulic components, electrical control components, high precision, high speed, lower energy, lower noise, easy to operate, is the ideal equipment of hardware appliance industries.



Two. Main Parameter

Items Unit Y28-65 Y28-100 Y28-150 Y28-200 Y28-350 Y28-500 Y28-500L Y28-600 Y28-1300
Nominal Pressure ton 65 100 150 200 350 500 500 600 1300
Main Cylinder Capacity ton 35 35 100 150 250 350 350 200X2 1000
Bottom Cylinder Capacity ton 25 25 50 50 100 150 150 200 300
Push-off Capacity ton 5 5 5 10 15 20 30 30 30
Slide Max.Stroke mm 300 250 500 550 600 650 700 700 1050
Lower Cylinder Stroke mm 100   250 280 300 330 400 400 600
Push-off Cylinder Stroke mm 50 100 180 200 200 200 200 200 200
Bolster Height mm 750 1030 1000 1128 1200 1550 900 1630 1200
Working Area Height mm 600 860 900 950 1120 1300 1200 1200 1500
Slide Speed Fast forward mm/s 130 150 170 150 150 150 150 150 150
working mm/s 20 20 25 25 25 25 10 10 10
Fast Backward mm/s 160 150 180 180 160 160 150 150 160
Available Bolster Dimension L.R mm 400 550 650 700 800 1000 2100 1900 1600
F.B mm 450 600 750 900 900 1200 1600 1400 1400
Hydraulic System Pressure Mpa 20 22 22 22 22 22 21 21 21
Motor Capacity Kw 7.5 11 15 22 22 30 30 30 65
Over-all Dimension L.R mm 1300 1620 1730 1800 1950 2400 3300 3125 4065
F.B mm 1100 1300 1420 1600 1640 1850 2200 2080 1885
Height mm 2400 3400 3550 3700 3800 4500 4915 4500 6300
Weight kg 3200 4150 6200 8500 12500 20000 43500 35000 66000
