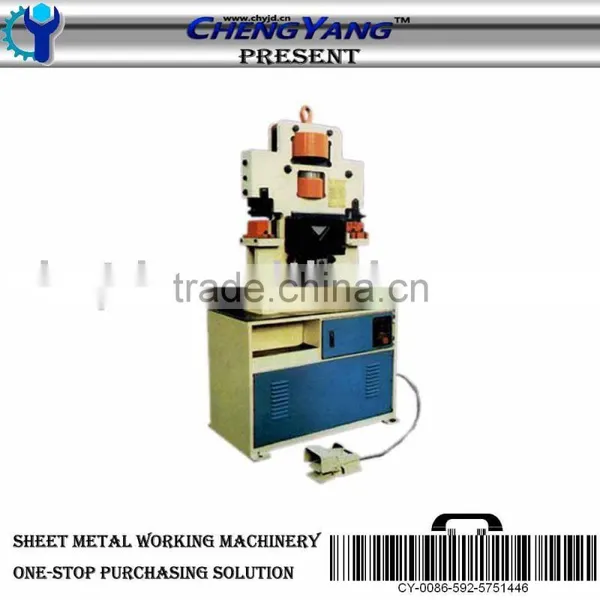

Efficient Punching & Shearing Machine with Notch
Brief Introduction:

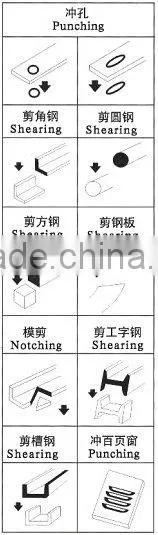

The Hydraulic Combined Punching and hearing machine has functions for hole punching, sheet shearing, angle steel cutting, metal shape cutting. The advantages of this machine are: little noise, samll dimensions and light weight. It is the necessary equipment for the modern machinery manufacturing industry sua as bridge, tractor, vehicle ,ship, metallurgy,telecommunication and electric power industries.
Parameters |
Uint |
Q35Y-12 |
SGEARING |
|
|
Flat bar(W*T) |
mm |
330×12 |
Square bar |
mm |
30×30 |
Round bar |
mm |
Φ40 |
Joist(Type) |
|
10# |
Channel(Type) |
|
10# |
Cutting of angle steel at 90 |
mm |
160×160×14 |
Cutting of angle steel at 45 |
mm |
80×80×10 |
Punching(D*T) |
mm |
Φ30×12 |
Angle flange(L*W*H) |
mm |
80×50×10 |
Punching force |
kn |
600 |
Depth of throat |
mm |
175 |
Max. length stroke |
mm |
32 |
Stroke times |
time/min |
8-16 |
Motor power |
kw |
4 |
Net weight |
kg |
700 |
Overall dimensions (L*W*H) |
mm |
960×550×1785 |
Packing department dimensions(L*W*H) |
mm |
1260×670×1840 |
