Product Details
| Condition | New | Place of Origin | Fujian, China | |
| Brand Name | chengyang | Model Number | QNC-1000W-1.5 | |
| Voltage | 220 | Rated Power | 50 | |
| Dimension(L*W*H) | 2m*1.7m*0.3m | Weight | 106 | |
| Certification | CE |
Product Description

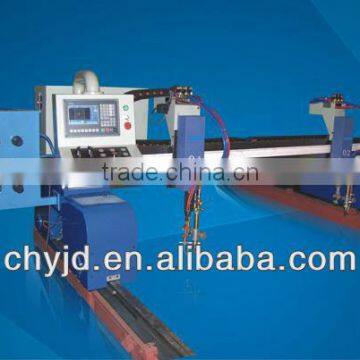

Portable CNC Flame Cutting Machine
Features
This machine with a large gantry CNC cutting machine, like any complex parts can be cut.
Cutting range: (1000 ~ 1200) * (1500 ~ 6000)
Host vertical and horizontal rails are made of imported dual-axis precision linear guide, linear degrees, and walking stability, high accuracy.
Can cut any complex plane figure, for better oxygen gas flame cutting, plasma cutting machine,
free moving, does not occupy a fixed site.
Affordable, practical and suitable for self-employed, small scale manufacturing and light industrial machinery and other industries.
This portable cutter can be used to programmable cut steel parts with such plane pictures as
straight lines and circular arcs, to cut any complex curved bevel, and to cut length-fixing cut profiles.
Plasma cutting machine working Conditions:
(1) Temperature: 5-45
(2) Moisture: 20-85%RH, no condensation
Cutting Forms:
Flame, plasma
Parameter
Model | Valid cutting bound | Supply voltage | Cutting speed | Travel speed | Outline | Cutting speed | |
mm | mm | mm/min | mm/min | L*H*W (m) | mm/min | ||
QNC-1000W-1.5 | 1000*1500 | AC220/50 | 50-750 | 3000 | 2*1.7*0.3 | 86(Q) | 106 |
QNC-1000W-2 | 1200*2000 | AC220/50 | 50-750 | 3000 | 2.5*1.9*0.33 | 100(Q) | 120 |
QNC-1000W-2.5 | 1200*2500 | AC220/50 | 50-750 | 3000 | 3*1.9*0.33 | 113(Q) | 133 |
QNC-1000W-3 | 1200*3000 | AC220/50 | 50-750 | 3000 | 3.5*1.9*0.33 | 126(Q) | 146 |
QNC-1000W-4 | 1200*4000 | AC220/50 | 50-750 | 3000 | 4.5*1.9*0.33 | 156(Q) | 173 |
QNC-1000W-5 | 1200*5000 | AC220/50 | 50-750 | 3000 | 5.5*1.9*0.55 | 200 | |
QNC-1000W-6 | 1200*600 | AC220/50 | 50-750 | 3000 | 6.5*1.9*0.55 | 260 | |
