PCM-3100*2 Plasma Automatic Cutting Machine for cut thin mental sheets
- 10 Set / Sets per Month
- Xiamen Port China
- T/T
You May Like
-
BY-NC6000 Bouble Sides Drive CNC Flame/Plasma Plate Cutter machine
-
chengyang PCM-6000 Plasma Automatic Cutting Machine for cut thin mental sheet
-
PCM-5000 Plasma Automatic Cutting Machine
-
CNC Plasma Cutting Machine for Thin Plate
-
CNC Plasma & Flame Cutting Machine
-
Plasma Automatic Cutting Machine for cut thin mental sheets
Product Details
| Condition | New | Place of Origin | Fujian, China | |
| Brand Name | chengyang | Model Number | PCM-3100*2 | |
| Rated Power | 6 | Dimension(L*W*H) | 7700*1845*1250 | |
| Weight | 2200 |
Product Description

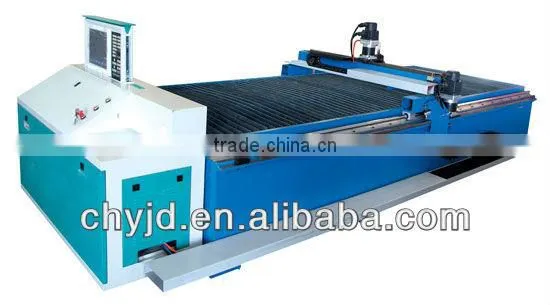

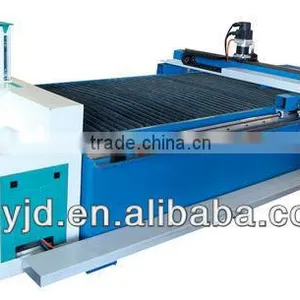

PCM-3100*2 Plasma Automatic Cutting Machine
Main Performance Characteristics
Plasma AutomaticCutting Machine is mainly used to cut thin metal sheets. It simplifies the cutting process for duct, thus dramatically liberates labor force, improves the working efficiency and saves material. It mainly consists of a cutting table, a computer system plasma generator and specific duct software.
According to the size of the cutting table, our products are of four types:
PCM-5100, PCM-6000, and PCM-3100*2. The plasma cutting machine is equipped with: THERMAL DYNAMICS plasma generator and specific duct software developed by LANTEK.
The plasma cutting machine is also compatible with: universal sheet cutting software Fast CAM.
The plasma system: The computer is of suitable performance. China and English operation prompts can be easily converted. The industrial computer, which is compatible to standard CNC language can display fittings and simulate cuttings. It can also be programmed.
Main Technical Parameter
Model | Cutting Table | Capacity | Cutting Speed | Motor | Weight | Dimension |
PCM-3100*2 | 1250*3100*2 mm | 0.5-6 mm | 10 m/min | 6 kw | 2200 kg | 7700*1845*1250 mm |
