Home > Products > Cuplock Scaffolding > Highly Demanded Of Ganlvnized Steel Cuplock Scaffolding
Highly Demanded Of Ganlvnized Steel Cuplock Scaffolding
- 10000 Piece / Pieces per Month
- QINGDAO
- T/T Credit Card
- Cup-lock Scaffolding / Cup-lock System, Scaffolding
- Painted/Galvanized Cuplock Scaffolding System,Construction Scaffolding System
- High Quality Steel Tubular Scaffolding Cuplock Scaffolding
- Cuplock Scaffolding /Scaffolding System Scaffold/Construction Scaffolding
- Cuplock Scaffold for Scaffold System
- Scaffold Materials Cuplock/Cuplock Scaffolding For Construction
Product Details
Place of Origin: | Shandong, China | Brand Name: | QUEEN | Model Number: | CQ |
Type: | Scaffolding Parts | Scaffolding Part Type: | Scaffolding Frames |
Packaging Details
by Steel pallet
Product Description
Specifications
Highly Demanded Of Ganlvnized Steel Cuplock Scaffolding1)Raw material:Q235/Q345
2)Size of pipe:48.3*3.25mm
3)Finished:Powder
Highly Demanded Of Ganlvnized Steel Cuplock Scaffolding
Product Description:
Cuplock scaffolding system is the most widely used scaffolding system. This kind scaffolding is 20% lighter and 30% faster than the traditional ones. It is compoesd of ledger, standard, cross brace and scaffolding accessories. The standard contains up bowl, bottom bowl and the fixed pin.
Specification:
1. Cuplock scaffolding system has high flexibility and high loading capacity. And it is mainly used to build bridges, tunnels, metro stations, and etc.
2. Cuplock scffolding is made by Q235 steel which is strong and durable.
3. A complete cuplock scaffolding system includes standards, ledgers, or diagonal braces.
4. The accessories of cuplock scaffolding system are cantilever bracket, side bracket, ladder bracket, ladder, intermediate, and etc.
5. One standard is welded an up cup and a bottom cup in every 500mm to join ledgers at different
heights.
6. One ledger is welded a ledger blade on both ends.
Item Name | Cuplock Scaffolding | |
Brand Name | Queen | |
Raw Material | Q235 /Q345steel Grade | |
Components | Standard.Ledger .Diagonal brace. Top/Bottop Cup/ Ledge Blade | |
Surface finish | Electric Galvanized/HDG/Powder coated | |
Size | Pipe size:48.3mm | |
Thickness:3.25mm | ||
Usage | Widely used in Bridge .Tunnel.Peterifaction.Shipbuilding .railway,Airport. Dock Industry and Civil Building | |
Packing | By Steel pallet or bulk | |
Standard | 48.3*3.25*500mm | 3.5kg |
48.3*3.25*1000mm | 5.6kg | |
48.3*3.25*1300mm | 8.0kg | |
48.3*3.25*1500mm | 8.75kg | |
48.3*3.25*1800mm | 10.6kg | |
48.3*3.25*2000mm | 11.4kg | |
48.3*3.25*2500mm | 14.0kg | |
48.3*3.25*3000mm | 16.70kg | |
8.3*3.25*4000mm | 20.36kg | |
Ledger | 48.3*3.25*650mm | 2.54kg |
48.3*3.25*914mm | 3.6kg | |
48.3*3.25*1065mm | 4.10kg | |
48.3*3.25*1150mm | 4.7kg | |
48.3*3.25*1570mm | 5.76kg | |
48.3*3.25*1829mm | 6.62kg | |
48.3*3.25*2130mm | 7.62kg | |
48.3*3.25*2438mm | 8.24kg | |
48.3*3.25*3050mm | 10.68kg | |
Diagonal brace | 48.3*3.25*915mm | 3.4kg |
48.3*3.25*1150mm | 4.04kg | |
48.3*3.25*1572mm | 5.34kg | |
48.3*3.25*1829mm | 6.13kg | |
48.3*3.25*2130mm | 7.06kg | |
48.3*3.25*2438mm | 8.01kg | |
48.3*3.25*3050mm | 9.90kg | |
Steel Plank | 210*45*1.2*1000/2000/3000/4000 | |
250*50*1.2*1000/2000/3000/4000 | ||
Screw jack base | 38*4.0*500mm | 3.35kg |
38*4.0*600mm | 3.65kg | |
48*4.0*600mm | 4.4kg | |
35*500mm | 4.5kg |

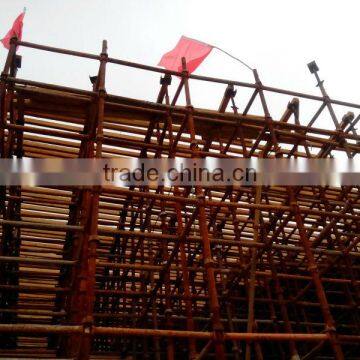

Product Display:
Workshop:
Packing& Shipping:
Main Business:
1 Scaffolding:
We can supply you: Kwikstage scaffolding and accessories, Ringlock scaffolding and accessories, Cup lock scaffolding and accessories; Frame scaffolding and accessories and Four-way scaffolding and accessories.
2 Couplers/Clamps:
The couplers we can manufacture include: British type couplers, Italian type couplers, German type couplers, American type couplers, and many other kinds of couplers as per your drawings.
3 Props
Quality shoring props of different specifications can be manufactured in our factory.
4 Others
We can also manufacture fences, ladders, steel trays and other related products that are needed in the construction of scaffolding.
About Us:
We specialize in the field of scaffolding systems for 10 years and we can supply many kinds of the Scaffolding, such like Ringlock scaffolding, Cuplock scaffolding, Kwikstage scaffolding and so on.We just want to emphasize that we earn the good reputation in the market due to the competitive price and the high quality. Please do not hesitate to contact us and we are confident and committed to providing you with the best quality and service all the time.
WELCOME TO OUR FACTORY.
Company Profile
Since 2000, we has been specialized in manufacturing scaffoldings, kwik stage/ringlock/cuplock/frame scaffoldings, steel planks, couplers, accessories & formwork parts, and hardware, ratchet wrench tools, garden tools, sockets and accessories. We expand our products to hand tools, automotive tools, etc. We have more than 10 years of production and export experience. Each tool produced by Queen is in the best quality, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
We have a highly experienced producing team, which maintains top level of every stage of the producing progress. Each team of workers is led by supervisor who monitors day to day works. Automated welding and robot systems are widely used.
Today, we have customers in over 35 countries around the world. Our products are engineered for safety, strength and flexibility to meet international standards within this industry. It is important for structural engineers, scaffolding factories and formwork specialists. In terms of working processes, we have expertise in iron casting, steel forging and thread rolling. We have a complete quality control system, which guarantees the high quality of our products and makes sure all progress is made to schedule.
With all our technical knowledge and capacity, if you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients in the near future.
Contact Us
- Linyi Queen Imp. & Exp. Co., Ltd.
- Contact nameFeeling Lau
- Phone86-0539-7977907
- Address1712 IEC Shanghai Road Lanshan District Linyi,Shandong
- safe cuplock scaffolding, cuplcok scaffolding system
- Painted metal cuplock construction scaffolding
- Q235 Highly Damage Resistant Galvanized Steel Cuplock Scaffolding Ledger
- Q235 Highly Damage Resistant Galvanized Steel Cuplock Scaffold bottom cup
- Q235 Highly Damage Resistant Galvanized Steel Cuplock Scaffold Brace
- Q235 Highly Damage Resistant Galvanized Cuplock Scaffolding Brace
- Q235 Highly Damage Resistant Galvanized Cuplock Ledger Blade
- Q235 Highly Damage Resistant Galvanized Cuplock Scaffolding fittings
- Highly Damage Resistant Galvanized Cuplock Scaffolding System
- Highly Damage Resistant Galvanized andamios cuplock Scaffolding Manual
- Highly Damage Resistant Galvanized Cuplock System Scaffolding Manual
- Highly Damage Resistant Galvanized Cuplock System Scaffolding Manual
- Galvanized Cuplock Scaffolding Bracket System
- Cuplock scaffolding ledger horizontal
- Q235 Tube Steel Cuplock Scaffolding for Construction
- Steel Galvanized Cuplock Scaffolding system
- Scaffolding cuplock top cup
- Scaffolding Cuplock system for Brige building
- Powder Coated Q235 steel Versatile Low maintenance Cup Lock system
- cuplock system scaffolding vertical/standard
- Q235 Cuplock scaffolding accessories ledger blade
- Cuplock scaffold standard and ledger for Construction
- Galvanized Durability Horizontal Cuplock System Scaffolding Ledgers 1.8m
- Used Cuplock 3 Board Omega Hop Up Bracket
