Specifications

cuplock scaffolding /scaffolding system scaffold/construction scaffolding
1)Raw materia:Q235/Q345
2)Size of pipe:48.3*3.25mm

  Cuplock Scaffolding /Scaffolding System Scaffold/construction Scaffolding

Product Description:

Cuplock scaffolding system is the most widely used scaffolding system. This kind scaffolding is 20% lighter and 30% faster than the traditional ones. It is compoesd of ledger, standard, cross brace and scaffolding accessories. The standard contains  up bowl, bottom bowl and the fixed pin.



Specification:

1)Raw material:Q235/Q345

2)Size of pipe:48.3*3.25mm

3)Surface finish:Powder coated/galvanized/HDG

Item Name	Cuplock Scaffolding
Brand Name	Queen
Raw Material	Q235 /Q345steel Grade
Components	Standard.Ledger .Diagonal brace. Top/Bottop Cup/ Ledge Blade
Surface finish	Electric Galvanized/HDG/Powder coated
Size	Pipe size:48.3mm
	Thickness:3.25mm
Usage	Widely used in Bridge .Tunnel.Peterifaction.Shipbuilding .railway,Airport. Dock Industry and Civil Building
Packing	By Steel pallet or bulk
Standard	48.3*3.25*500mm	3.5kg
	48.3*3.25*1000mm	5.6kg
	48.3*3.25*1300mm	8.0kg
	48.3*3.25*1500mm	8.75kg
	48.3*3.25*1800mm	10.6kg
	48.3*3.25*2000mm	11.4kg
	48.3*3.25*2500mm	14.0kg
	48.3*3.25*3000mm	16.70kg
	8.3*3.25*4000mm	20.36kg
Ledger	48.3*3.25*650mm	2.54kg
	48.3*3.25*914mm	3.6kg
	48.3*3.25*1065mm	4.10kg
	48.3*3.25*1150mm	4.7kg
	48.3*3.25*1570mm	5.76kg
	48.3*3.25*1829mm	6.62kg
	48.3*3.25*2130mm	7.62kg
	48.3*3.25*2438mm	8.24kg
	48.3*3.25*3050mm	10.68kg
Diagonal brace	48.3*3.25*915mm	3.4kg
	48.3*3.25*1150mm	4.04kg
	48.3*3.25*1572mm	5.34kg
	48.3*3.25*1829mm	6.13kg
	48.3*3.25*2130mm	7.06kg
	48.3*3.25*2438mm	8.01kg
	48.3*3.25*3050mm	9.90kg
Steel Plank	210*45*1.2*1000/2000/3000/4000
	250*50*1.2*1000/2000/3000/4000
Screw jack base	38*4.0*500mm	3.35kg
	38*4.0*600mm	3.65kg
	48*4.0*600mm	4.4kg
	35*500mm	4.5kg

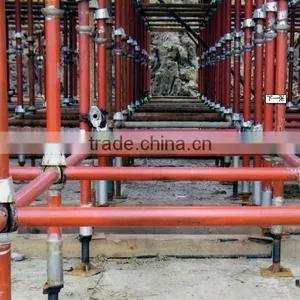

Product Display:

Workshop:

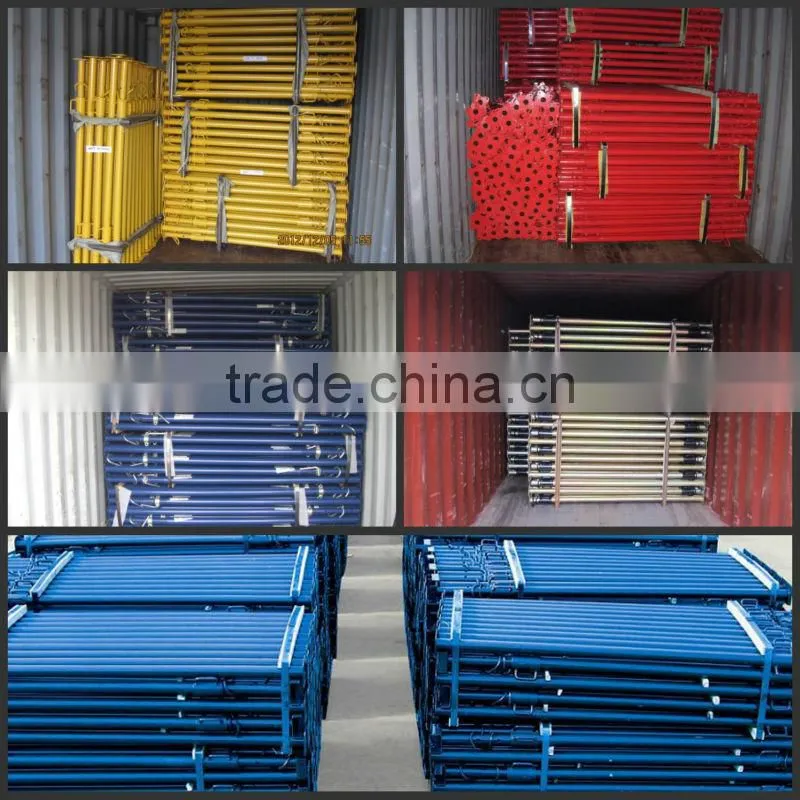

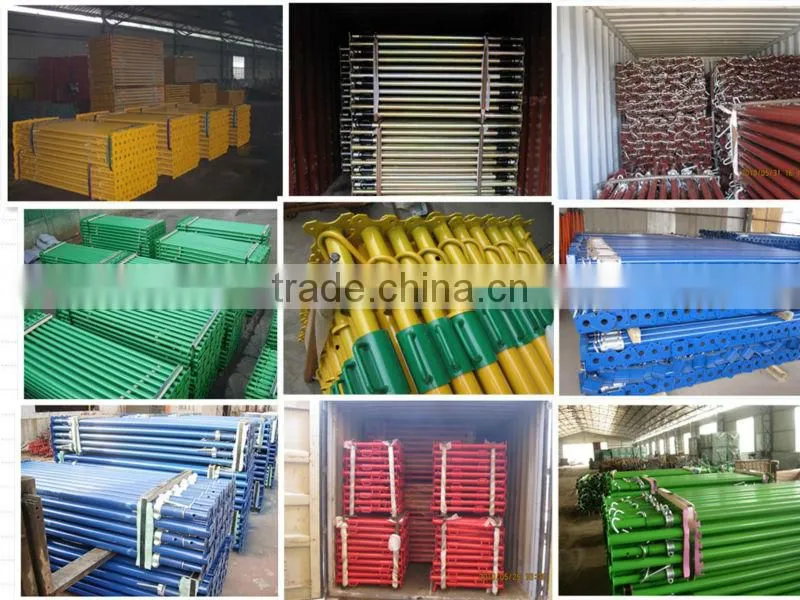

Packing& Shipping:

Main Business:

1 Scaffolding:

We can supply you: Kwikstage scaffolding and accessories, Ringlock scaffolding and accessories, Cup lock scaffolding and accessories; Frame scaffolding and accessories and Four-way scaffolding and accessories.

2 Couplers/Clamps:

The couplers we can manufacture include: British type couplers, Italian type couplers, German type couplers, American type couplers, and many other kinds of couplers as per your drawings.

3 Props

Quality shoring props of different specifications can be manufactured in our factory.

4 Others

We can also manufacture fences, ladders, steel trays and other related products that are needed in the construction of scaffolding.

About Us:

      We specialize in the field of scaffolding systems for 10 years and we can supply many kinds of the Scaffolding, such like Ringlock scaffolding, Cuplock scaffolding, Kwikstage scaffolding and so on.We just want to emphasize that we earn the good reputation in the market due to the competitive price and the high quality. Please do not hesitate to contact us and we are confident and committed to providing you with the best quality and service all the time.
