Microtube Reduction Connector (Reducer)
- Shanghai Ningbo etc.
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Reepure | |
| Model Number | Microtube Reduction Connector MRC-10/8-7/5.5 |
Product Description

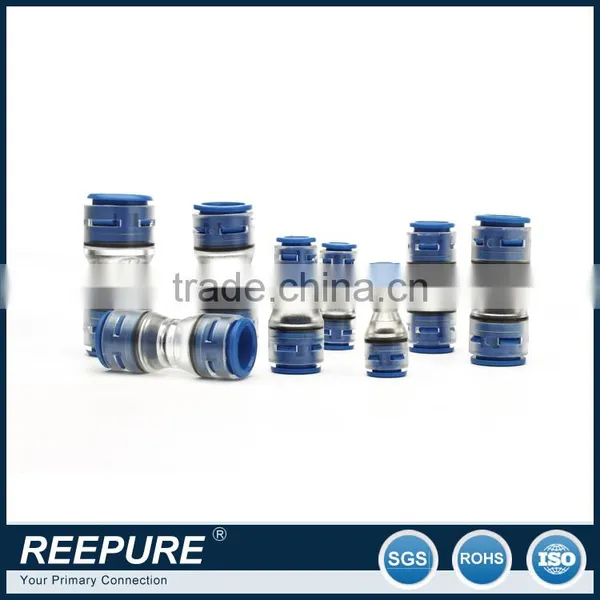

Microtube Reduction Connector
The Microtube Reduction Connectors make splicing MicroDuct fast and easy. Simply push the MicroDucts into the center of the Microtube Reduction Connector. No tools are required. The Microtube Reduction Connectors can be connected and disconnected 10 times and still maintain the high performance requirements for air blown installation systems.
Microtube Reduction Connectors operate at 15 BAR (218 psi) with a maximum permissible leakage rate of 1cc/min. This is equivalent to 1 bubble every 3 seconds. Higher pressures have been used in the field with no increase in leakage rate. Quick Burst rating is 25 BARS (363 psi).
Microtube Reduction Connector Feature:
Body Material: | PC, impact resistant |
Collect Material: | POM, stainless steel teeth |
O-rings Material: | Nitrile rubber |
Blowing Pressure: | 16 bar |
Burst Pressure: | 25 bar |
Temperature Range: | -10 ~ 60°C |
Insertion force: | 50N max (5kg) |
Microtube Reduction Connector Specification:
Reepure code | Description |
MRC-5/3.5-3/2.1 | 5-3mm straight connector, bore 2.1mm |
MRC-7/5.5-3/2.1 | 7-3mm straight connector, bore 2.1mm |
MRC-7/5.5-5/3.5 | 7-5mm straight connector, bore 3.5mm |
MRC-8/6-3/2.1 | 8-3mm straight connector, bore 2.1mm |
MRC-8/6-5/3.5 | 8-5mm straight connector, bore 3.5mm |
MRC-10/8-7/5.5 | 10-7mm straight connector, bore 5.5mm |
MRC-10/8-8/6 | 10-8mm straight connector, bore 6mm |
MRC-12/10-7/5.5 | 12-7mm straight connector, bore 5.5mm |
MRC-12/10-8/6 | 12-8mm straight connector, bore 6mm |
MRC-12/10-10/8 | 12-10mm straight connector, bore 8mm |
MRC-12.7/10-10/8 | 12.7-10mm straight connector, bore 8mm |
MRC-14/12-10/8 | 14-10mm straight connector, bore 8mm |
MRC-14/12-12/10 | 14-12mm straight connector, bore 10mm |
MRC-16/12-12/10 | 16-12mm straight connector, bore 10mm |
MRC-16/12-14/10 | 16-1414mm straight connector, bore 10mm |
MRC-18/14-14/10 | 18-14mm straight connector, bore 10mm |
