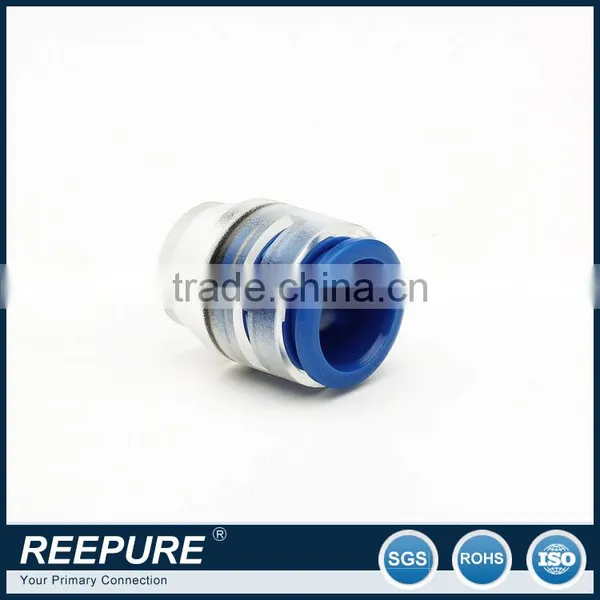

Micro Duct Endcap
To keep Micro Duct networks free of debris, seal the system with micro duct endcaps. With the same functionality as the Push-Fit Connectors, installation simply involves pushing the Micro Duct into the micro duct endcap. The micro duct endcap can be attached and removed 10 times while still maintaining the same high performance characteristics.
Micro duct endcaps operate at 16 BAR (218 psi) with a maximum permissible leakage rate of 1cc/min. This is equivalent to 1 bubble every 3 seconds. Higher pressures have been used in the field with no increase in leakage rate. Quick Burst rating is 25 BARS (363 psi).
Micro duct endcap Feature:
Body Material: |
PC, impact resistant |
Collect Material: |
POM, stainless steel teeth |
O-rings Material: |
Nitrile rubber |
Blowing Pressure: |
16 bar |
Burst Pressure: |
25 bar |
Temperature Range: |
-10 ~ 60°C |
Insertion force: |
50N max (5kg) |
Micro duct endcap Specification:
Reepure code |
Description |
MEC-3 |
3mm micro duct endcap |
MEC-4 |
4mm micro duct endcap |
MEC -5 |
5mm micro duct endcap |
MEC -6 |
6mm micro duct endcap |
MEC -7 |
7mm micro duct endcap |
MEC -8 |
8mm micro duct endcap |
MEC -10 |
10mm micro duct endcap |
MEC -12 |
12mm micro duct endcap |
MEC -12.7 |
12.7mm micro duct endcap |
MEC -14 |
14mm micro duct endcap |
MEC -16 |
16mm micro duct endcap |
MEC -18 |
18mm micro duct endcap |
