Push Fit End Plug/endplug
- Shanghai Ningbo etc.
- T/T L/C D/P D/A Money Gram Credit Card
You May Like
Product Details
| Material | Plastic | Technics | Casting | |
| Type | Cap | Place of Origin | Zhejiang, China | |
| Model Number | micro duct end plug MEC -18 | Brand Name | Reepure | |
| Connection | Male | Shape | Equal | |
| Head Code | Square |
Product Description

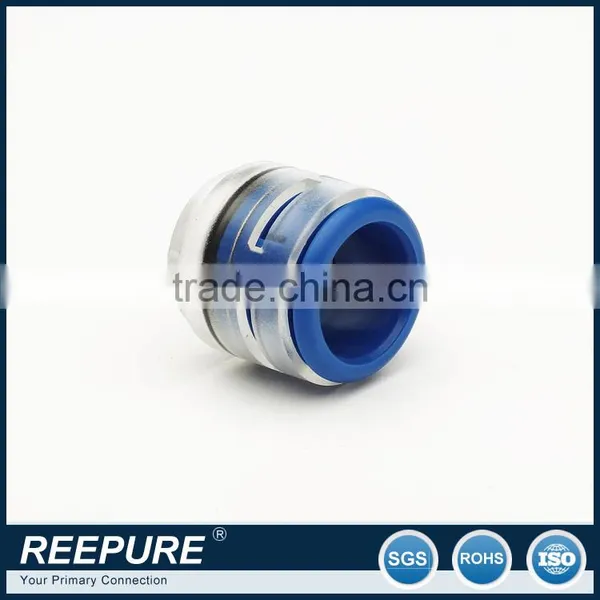

Micro duct end plug
To keep Micro Duct networks free of debris, seal the system with micro duct end plug. With the same functionality as the Push-Fit Connectors, installation simply involves pushing the MicroDuct into the micro duct end plug. The micro duct end plug can be attached and removed 10 times while still maintaining the same high performance characteristics.
Mcro duct end plug s operate at 16 BAR (218 psi) with a maximum permissible leakage rate of 1cc/min. This is equivalent to 1 bubble every 3 seconds. Higher pressures have been used in the field with no increase in leakage rate. Quick Burst rating is 25 BARS (363 psi).
micro duct end plug's Feature:
Body Material: | PC, impact resistant |
Collect Material: | POM, stainless steel teeth |
O-rings Material: | Nitrile rubber |
Blowing Pressure: | 16 bar |
Burst Pressure: | 25 bar |
Temperature Range: | -10 ~ 60°C |
Insertion force: | 50N max (5kg) |
micro duct end plug's Specification:
Reepure code | Description |
MEC-3 | 3mm micro duct end plug |
MEC-4 | 4mm micro duct end plug |
MEC -5 | 5mm micro duct end plug |
MEC -6 | 6mm micro duct end plug |
MEC -7 | 7mm micro duct end plug |
MEC -8 | 8mm micro duct end plug |
MEC -10 | 10mm micro duct end plug |
MEC -12 | 12mm micro duct end plug |
MEC -12.7 | 12.7mm micro duct end plug |
MEC -14 | 14mm micro duct end plug |
MEC -16 | 16mm micro duct end plug |
MEC -18 | 18mm micro duct end plug |
FAQ
1. Can I get some samples?
Yes, Sample order is available for quality test and market test .But you have to pay the postage. And we can return to you when you place formal order.
2. What’s delivery time?
It usually takes about 3-5 working days for small order and 10 days for big order when receiving your purchasing order.
3. What’s your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4. What’s your warranty terms?
We offer 12 months warranty time .
5. Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be quickly produced according to your order .
6. Can I mix different power in one container ?
Yes ,Different models can be mixed up in one container ,even one order .
7. How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packing and shipping .
8. I would like to know if you have a partner for export?
Yes .Reepure have the right to export and can sell product all over the world .
9. How can I trust you ?
The core of Reepure is honesty and loyalty. our company has been audited and approved ISO9001,Rohs certification. Assessment report will could be sent to you by e-mail. Now we have clients all around the world .
