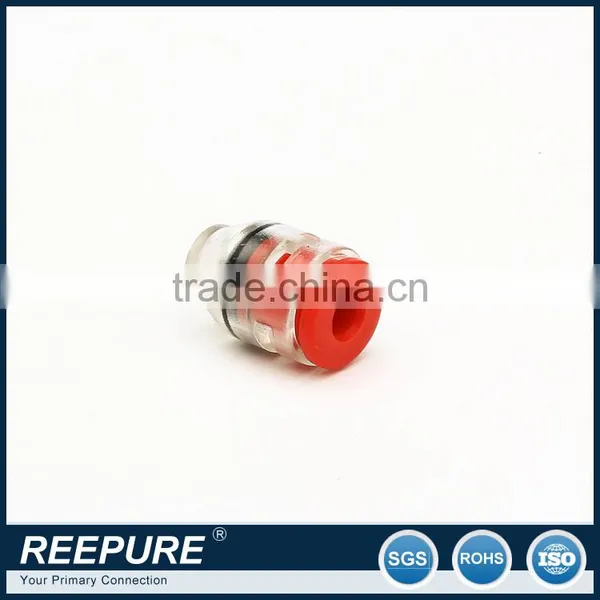

Micro-duct endplug
To keep MicroDuct networks free of debris, seal the system with Micro-duct endplugs. With the same functionality as the Push-Fit Connectors, installation simply involves pushing the MicroDuct into the Micro-duct endplug. The Micro-duct endplug can be attached and removed 10 times while still maintaining the same high performance characteristics.
Micro-duct endplugs operate at 15 BAR (218 psi) with a maximum permissible leakage rate of 1cc/min. This is equivalent to 1 bubble every 3 seconds. Higher pressures have been used in the field with no increase in leakage rate. Quick Burst rating is 25 BARS (363 psi).
Micro-duct endplug Feature:
Body Material: |
PC, impact resistant |
Collect Material: |
POM, stainless steel teeth |
O-rings Material: |
Nitrile rubber |
Blowing Pressure: |
16 bar |
Burst Pressure: |
25 bar |
Temperature Range: |
-10 ~ 60°C |
Insertion force: |
50N max (5kg) |
Micro-duct endplug Specification:
Reepure code |
Description |
MEC-3 |
3mm end connector |
MEC-4 |
4mm end connector |
MEC -5 |
5mm end connector |
MEC -6 |
6mm end connector |
MEC -7 |
7mm end connector |
MEC -8 |
8mm end connector |
MEC -10 |
10mm end connector |
MEC -12 |
12mm end connector |
MEC -12.7 |
12.7mm end connector |
MEC -14 |
14mm end connector |
MEC -16 |
16mm end connector |
MEC -18 |
18mm end connector |
