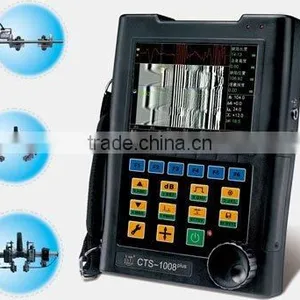

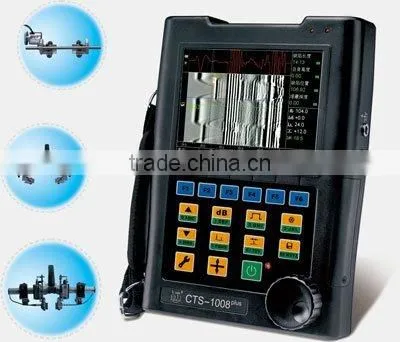

Help CenterUltrasonic Flaw Detector
US$ 4,600 - 7,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KBD
Model Number:
CTS-1008PLUS
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
KBD
Model Number
CTS-1008PLUS
Power
Electronic
Usage
Deformation Testing Machine
Specifications
WE CAN SUPPLY Ultrasonic Flaw Detector
| TOFD imaging technology (More details please refer to the technical specifications) |
| Support TOFD recheck after normal PE testing, accurately measure the size and profile of defects, evaluate the characteristics and direction of defects. Support PE rechecks after TOFD imaging |
| Sampling frequency up to 640MHz, 0.1mm measurement resolution, minimum display range is 2mm |
| Frequency 0.5 ~ 20MHz, sensitivity up to 62dB, low frequency provides better signal-to-noise rate |
| Bright, excellent resolution color TFT LCD to optimize the test result |
| High performance square wave pulser with tuning option allows the operator to tune the pulse width of the square wave pulser to optimize transducer performance. This maximizes signal-to-noise and penetration in difficult materials such as highly-attenuated materials or thin work-pieces. +ve or –ve square wave or –ve square wave plus –ve spike pulse options |
| Small size, lightweight, use Li-battery with more than 6 hours’ battery life |
| LAN interface for data transfer and remote control |
| Two-dimensional incremental encoder interface realizes accurate position-detecting imaging (B-scan, C-scan, D-scan) |
| Synchronous analogue RF waveform output with impedance 50 Ohm make it a good signal source of data collection and transducer test |
| High-speed USB interface allows data storage on USB drive and PC communication. To interface with a mouse to secure accurate analysis on image |
| Internal charger, auto switch between “charge” and “work”. Power supplied by battery or AC mains. The operating time of onboard Li battery is more than 6 hours |
| Multi-software functions to meet all inspection needs, unique keypad organization and rotary knob operation make the inspection much easier. It has a user-friendly design for menu, English/Chinese language menu options and English/Chinese input options |
| Automatically test the transducer frequency, tune the pulse width of square wave pulse to optimize transducer performance |
| Thickness alarm function, continuous storage function of waveform and various measurement modes of waveforms |
| Automatically calibrate instrument specifications and search the peak value |
| Set-in API 5UE and AWS D1.1 |
