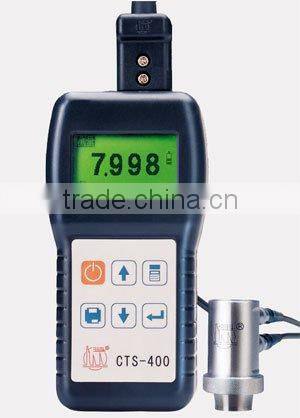

Ultrasonic Flaw Detector CTS-400+

US$ 4,600 - 7,500 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

KBD

Model Number:

CTS-400+

KBD Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name KBD

Model Number CTS-400+

Power Electronic

Usage Deformation Testing Machine

Specifications

WE CAN SUPPLY Ultrasonic Flaw Detector

Operating Principle	Pulse echo with dual element transducers
Units	Selectable: mm or inch
Measuring Range	1 mm to 300 mm (0.039” to 11.81”)
Thickness Display Resolution	mm - 0.001, 0.01, 0.1; inch – 0.001, 0.01
Measurement Accuracy	0.5%H+0.08mm(H – Thickness of the tested material)
Material Velocity Range	1000 to 9999m/s
Measuring Range for Steel Pipes	Min. 20 diameter, 2.0mm thickness
Probe Zero Adjustment	1 or 2 point calibration option included
V-path Correction	Automatic
Operating Mode	Normal mode, minimum capture mode, differential mode, HI / LO thickness limits
Pulse Repetition Frequency	4Hz in normal measurement mode;16Hz in minimum capture mode
Display	Large LCD with backlit; 128×64 dot-matrix
Dialog Languages	English, Chinese
Coupling Status Indicating	Coupling status symbol indicates whether satisfactory acoustic coupling between the transducer and test piece has been achieved
Customizable Menu	To meet the operator’s usual practice and measuring needs
Battery	Two 5# AA alkaline batteries
Battery Life	200 hours (with backlight off)
Low Battery Indicator	Continuously indicates battery status
Auto Shut-off	After 3 minutes of non-use
Data Logger	Up to 2000 readings
Interface	USB port allows communication with PC
Application Software	Communication software
Dimensions	138mm×70mm×34mm
Weight	230g with battery
