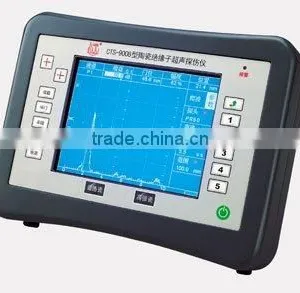

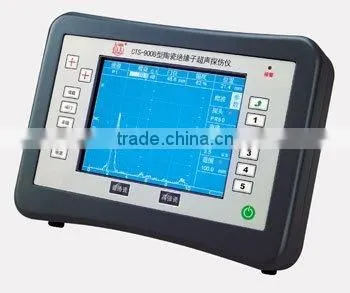

Help CenterUltrasonic Flaw Detector
US$ 4,600 - 7,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KBD
Model Number:
CTS-9008
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
KBD
Model Number
CTS-9008
Power
Electronic
Usage
Deformation Testing Machine
Specifications
WE CAN SUPPLY Ultrasonic Flaw Detector
| Operation Frequency | 0.5~20MHz |
| Gain Adjustment | 0.0~110.0dB, 4 step increments: 0.1, 1.0, 2.0, 6.0dB, provides intelligent acceleration adjustment function |
| Test Range | 2.0~10000mm (longitudinal wave in steel), continuously adjustable |
| Sound Velocity Range | 500~15000m/s, continuously adjustable |
| Pulse Shift | -20~3000us |
| Dynamic Range | ≥32dB |
| Vertical Linearity Error | ≤3% |
| Horizontal Linearity Error | ≤0.1% |
| Resolution | ≥36dB |
| Surplus Sensitivity | ≥60dB( 200mm 2 flat bottom hole) |
| Electric Noise Level | ≤10% |
| Data Storage | 1000 sets of test reports |
| Display | 6.5" ultra-large color TFT display with high-resolution( 640×480) , high-brightness and 262144 colors |
| Power Supply | Two modes: Large-capacity lithium batteries without any memory effect for 6 hours' non-stop work AC 220V( with adapter) |
| Environmental Temperature | -30~60°C |
| Dimension | 250mm×186mm×59mm |
| Weight | Approximately 2Kg |
