Digital Multimeter

KBD Tools Co., Ltd.

US$ 20 - 30 MOQ: 5 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

ms8268

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name MS

Model Number ms8268

Measuring Current Range 400μ/4000μ/40m/400mA

Measuring Voltage Range DC voltage: 400m/4/40/400V±0.7%, 1000V±0.8%

Measuring Resistance Range 400/4k/40k/400k/4MΩ±1.2%, 40MΩ±2.0%

Measuring Capacitance Range 4nF±5.0%, 40n/400n/4μ/40μ/200μF±3.0%

Operating Temperature 0-40degree

Dimensions 195mm x 92mm x 55mm

Specifications

High quality digital multimeter can be supplied to our customers

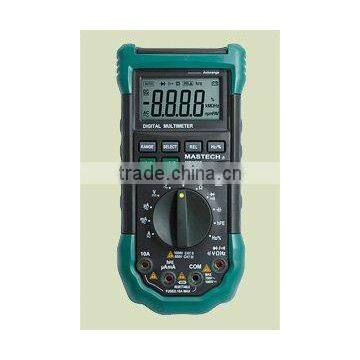

MS8268

3 3/4 AUTORANGE DIGITAL MULTIMETER

FEATURES

	Conform to the IEC1010-1 standard CAT III 600V and CAT II 1000V
	Sound & light warning for the incorrect inserting the input plug
	SMT application
	Display: 3999 counts
	DC voltage: 400m/4/40/400V±0.7%, 1000V±0.8%
	AC voltage: 400mV±3.0%, 4/40/400V±0.8%, 750V±1.0%
	DC current: 400μ/4000μ/40m/400mA±1.2%, 10A±2.0%
	AC current: 400μ/4000μ/40m/400mA±1.5%, 10A±3.0%
	Resistance: 400/4k/40k/400k/4MΩ±1.2%, 40MΩ±2.0%
	Capacitance: 4nF±5.0%, 40n/400n/4μ/40μ/200μF±3.0%
	Frequency: 10/100/1000/10k/200kHz±2.0%
	hFE: 1~1000
	Diode test
	Continuity test
	Duty cycle test
	Relative measurement
	Auto power off
	Resettable fuse inside
	Data hold
	Back light
	Power: AAA (1.5V) x 3
	Size: 195mm x 92mm x 55mm
	Weight: Approx. 380g(including battery)
