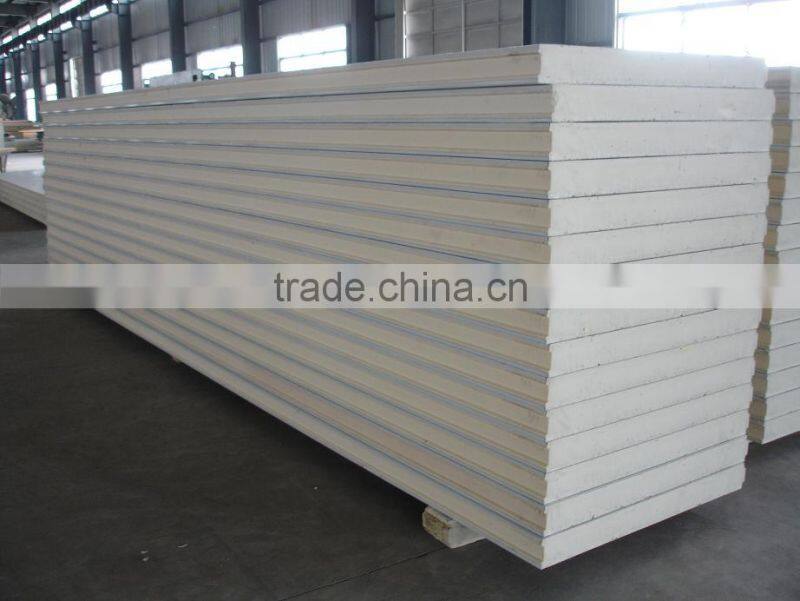

Help CenterPolyurethane Sandwich Panel
Related Products
-
Pu Locking Panel for Cold StorageNegotiableMOQ: 1000 Square Meters -
PU Cold Storage DoorUS$ 14.7 - 31.02MOQ: 1000 Square Meters
-
PU Panel With Cam LockUS$ 15.1 - 34.5MOQ: 500 Square Meters
-
PU Cold Storage BoardUS$ 14.7 - 31.02MOQ: 1000 Square Meters
-
PU Panel With Cam LockNegotiableMOQ: 1000 Square Meters
Specifications
Good -quality color steel or aluminum foil board,filled with high-density polyurethane (The density can reach 42kg/m3)polyurethane panel:
Focus on researching and manufacturing of various polyurethane color steel panel,widely used in house,freezing house,clean room,garage door,roof ,wall,antifire,sound abosrbing etc,with good performance on erergy conservation,environmental protection and constrution.We brought in a worldclass continuous producting line from Germany,we can produce 2000 square meters every day.
Our PU panels have acquired "Chinese Green Environmental Protection Product" Title.
* Thinckness is 50 - 200mm
The standard width of the cold storage panel is 0.985m.
* PU color steel cold storage panel systems (PU cold storage Panel)
1. Fire Rating. PU reaches Grade B2 fire rating.
2. Heat & Sound Insulation. Temperature suitable for PU ranges from -200+150. Low Temperature Brittleness does not occur to PU sandwich panel, so it is the ideal insulated material for freezer.
3. Good chemical resistance, waterproof, anti-corrosion, insect-free etc.
4. Advanced Tech. Automatic rolling machines make the whole process of manufacture time-effective and cost-effective.
5. Easy Installation. PU sandwich panel has male and female edges to make it easier to install on site, so it saves the construction time and periord and cost. It can be pre-manufactured in factory and assembled on site, so it saves the cost of labor considerably.
PU Properties
Density(kg/m³): over 42
Thermal Conductivity Rate(W/mk) : less than 0.020
Impact Strength (Kpa): over 150
Water Absorption Rate: less than 0.118
(sec)Self-distinguishing: less than 5
Temperature Range: -200+150 Specs
Factory, warehouse, large-span roof panel, temperory houses, shopping mall, info booth, prefabricated houses, roof and wall panels, ceiling
residential and commercial buildings, villas, prefabricated houses etc.
