Home > Construction & Decoration > Decoration Materials > Sandwich Panel > 27 in X 97 in ClarkDietrich Galvanized Paper Backed Metal Lath
27 in X 97 in ClarkDietrich Galvanized Paper Backed Metal Lath
US$ 2.00
500 - 999 Pieces
US$ 1.90
1000 - 4999 Pieces
US$ 1.80
≥5000 Pieces
Key Specifications
Get Latest Price
Warranty:
More Than 5 Years
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return and Replacement
Weight:
1.75Ibs,2.5Ibs,3.4Ibs
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
27"X96" Diamond Galvanized Expanded Metal Lath Wall Plaster Mesh 2.5lbs Stucco Wall LathUS$ 1.80 - 2.00MOQ: 500 Pieces -
Wall Reinforcement 3/4" Metal High Rib Lath Galvanized Expanded Metal Lath ManufacturerUS$ 1.80 - 2.00MOQ: 500 Pieces
-
27 in X 97 in Paper-Backed Metal Lath Galvanized Diamond Mesh Lath SupplierUS$ 0.85 - 2.85MOQ: 1 Piece
-
Galvanized Wire Lath for Stucco Chinese Manufacturers Paper Backed LathUS$ 0.85 - 2.85MOQ: 1 Piece
-
Wholesale 27in X 97in Paper-back Diamond Metal Lath 1.75lb 2.50lb 3.40lb Expanded Stucco Metal Lath for Cement Plaster WallsUS$ 1.7 - 3.2MOQ: 1 Piece
Warranty
More Than 5 Years
After-sale Service
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return and Replacement
Weight
1.75Ibs,2.5Ibs,3.4Ibs
Alloy Or Not
Non-Alloy
Secondary Or Not
Non-secondary
Project Solution Capability
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
Application
Outdoor
Design Style
European
Place of Origin
Hebei, China
Brand Name
LONGEN
Model Number
Metal Lath
Product name
Metal Lath
Weight per Square Yard
1.75Ibs,2.5Ibs,3.4Ibs
Yards/Pallet
500
Packing
Steel pallet packing
Product Description
Specification
Expanded Metal Lath Specifications |
||||||
Weight per Square Yard
(lb/yd2)
|
Sheet Size |
Pieces/Bundle |
Yards/Pallet |
|||
1.75 |
27"×96" |
10 |
500 |
|||
2.5 |
27"×96" |
10 |
500 |
|||
3.4 |
27"×96" |
10 |
500 |
|||

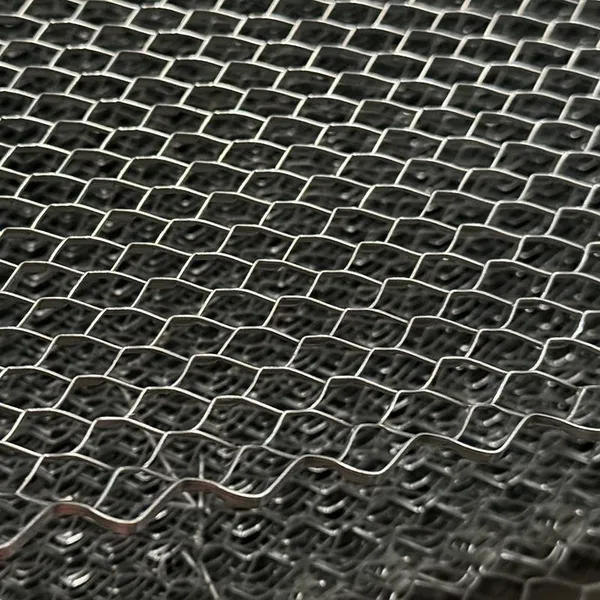

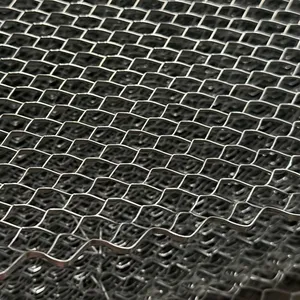

Flat Diamond Metal Lath
Flat diamond metal lath is manufactured by slitting and stretching galvanized steel sheets to form small openings, thereby allowing the plaster keys to be bonded to the lath and offering better crack resistance and higher strength. Each sheet has square ends and smooth parallel edges for fast, easy handling and installation.
Flat diamond metal lath is used as plaster base and reinforcement on almost all type of walls, ceilings, over wood or steel framing, flat or curved surfaces. The large number of openings provide better stucco bonding property.
Paper-Backed Lath
Paper-backed lath is a kind of metal lath with asphalt saturated kraft building paper applied on the back to control moisture, air flow and reduce air infiltration, thereby providing improved energy efficiency. It is easy to install and is an ideal choice for serving as a base for stone, ceramic tile and traditional stucco.
The paper is waterproof. It provides sheathing protection against moisture during curing and forms a vertical surface behind the exterior wall cladding (stucco, brick, siding, etc.) to allow moisture safely drain out of the wall system.
Self-Furring Dimpled Metal Lath
Self-furred dimpled metal lath is manufactured with evenly spaced indentations that hold the metal lath 1/4" away from the surface to be plastered to allow the plaster or stucco to be embedded more thoroughly into the lath and provide excellent mechanical bonding over the surface to be plastered.
Self-furring dimpled metal lath is extensively used in plaster works and serves as plaster reinforcement over interior masonry walls and in steel column fireproofing, or functions as a reinforcement for base coat in ceramic tile works.
Self-furring dimpled metal lath is also available with asphalt paper backing.
Self-Furring V-Groove Metal Lath
Self-furring v-groove metal lath is manufactured with 1/4" deep grooves and 5 grooves per sheet. These grooves are spaced 6" on the center along the length of the sheet and allow a thorough embedment into and behind the lath for superior mechanical bonding.
Self-furring v-groove metal lath is easily shaped for curved or contoured surfaces. It helps maintain consistent plaster depths and eliminates the need for added furring strips. To maintain the furring characteristics of v grooves, fasteners must be applied within the v-cavity.
Self-furring v-groove metal lath is widely used in plastering over surfaces such as concrete, cement board, column fireproofing, masonry surfaces as well as replastering over old surfaces. In addition, self-furring v-groove metal lath is available with asphalt paper backing.
Rib lath without paper
Rib lath without paper has herringbone mesh patterns and 7 longitudinal solid steel ribs with a depth of 3/8" at an interval of 3-7/8" across the sheet.
Rib lath provides a maximum span of 24" on center. It can be used both vertically and horizontally to provide superior strength and exceptional rigidity. It is widely used in ceiling, wall and column plaster works.
Rib lath provides a maximum span of 24" on center. It can be used both vertically and horizontally to provide superior strength and exceptional rigidity. It is widely used in ceiling, wall and column plaster works.
Kraft paper-backed rib lath
Compared with rib lath without paper, kraft paper-backed rib lath not only provides superior strength and exceptional rigidity, but also limits the loss of plaster when being applied on open framing.
Product Display
Packing & Delivery
Application
For brick walls
For concrete walls
For ceilings
