Double Sided Aluminum foil PIR foam duct panel
- 10000 Square Meter / Square Meters per Month
- Qingdao
- T/T D/P D/A
Product Details
Place of Origin: | Shandong, China | Brand Name: | Huahai | Model Number: | HH-TZ2 |
Panel Material: | Metal | Type: | PIR Sandwich Panels |
Product Description
Specifications
Double Sided Aluminum foil PIR foam duct panel1.light weight
2.highly thermal resistance
3.low vapour permeability
Double sided Aluminum foil PIR foam duct panel
PRODUCT INTRODUCTION
PIR foam air duct panel is used for air distribution in central air conditioning. Faced on both sides with a protective low vapour permeability 80micron aluminum foil. They are completely CFC(chlorofluorocarbon) and HCFC(hydrochlorofluorocarbon) free, and are of highly thermal resistance. This panel is especially suit for using in air-conditioning and heating system installations.
PRODUCT SPECIFICATION
Aluminum Foil Thick : 60-80 micron
Bending Strength : 1.05MPa
Fire proof Performance : Class"B"
Water Absorption : 1.9%
Smoke Density : 2%
Working Temperature : -150°C to 150°C
Certificates : ISO 9001:2008 ISO 14001:2004
PRODUCT SPECIFICATION
Fireproofing,Light , not burning in the naked light ,smoke-free ,harmless ,no dripping , widely temperature used (-150~+200),have acquired National Fireproofing Materials Quality Supervention center GB8624-1997,fireproofing and non-combustible A standard ,certificate emission E1 standard ( can be use in the room directly ), according with the green environmental protection requirements.
PRODUCT ADVANTAGES
Light weight, easy for installation
Fire proof , flame resistant
Thermal insulation
Energy and system saving
Approved by ISO 9001:2008
PRODUCT USAGES
Be used to make the air conditioning heat preservation ventilating duct's material,it widely uses in market,hospital,supermarket, stadium, hotel, workshop, guesthouse, airport, pure project food store, and so on.

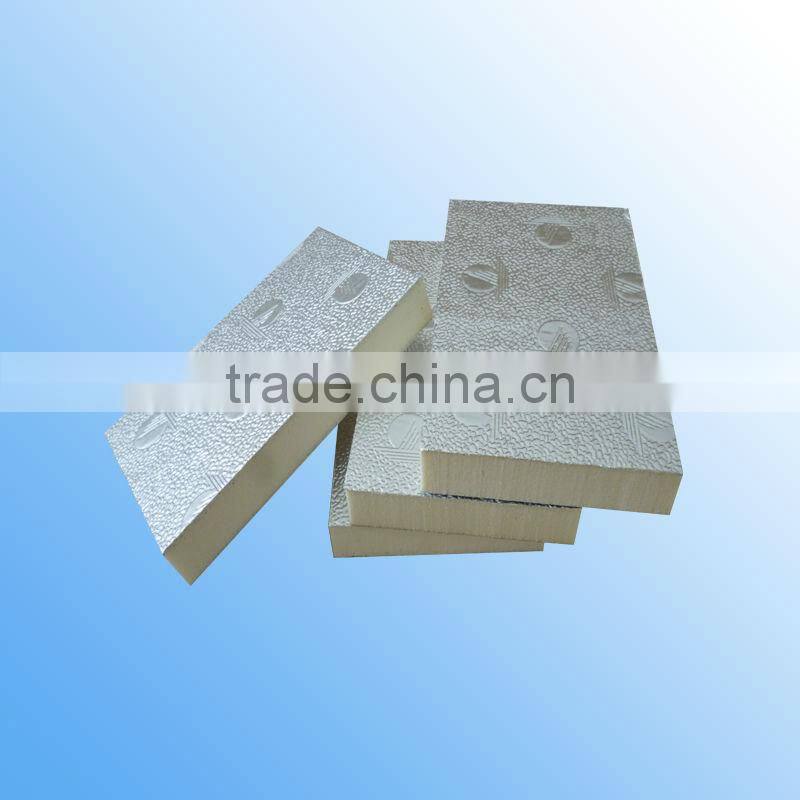

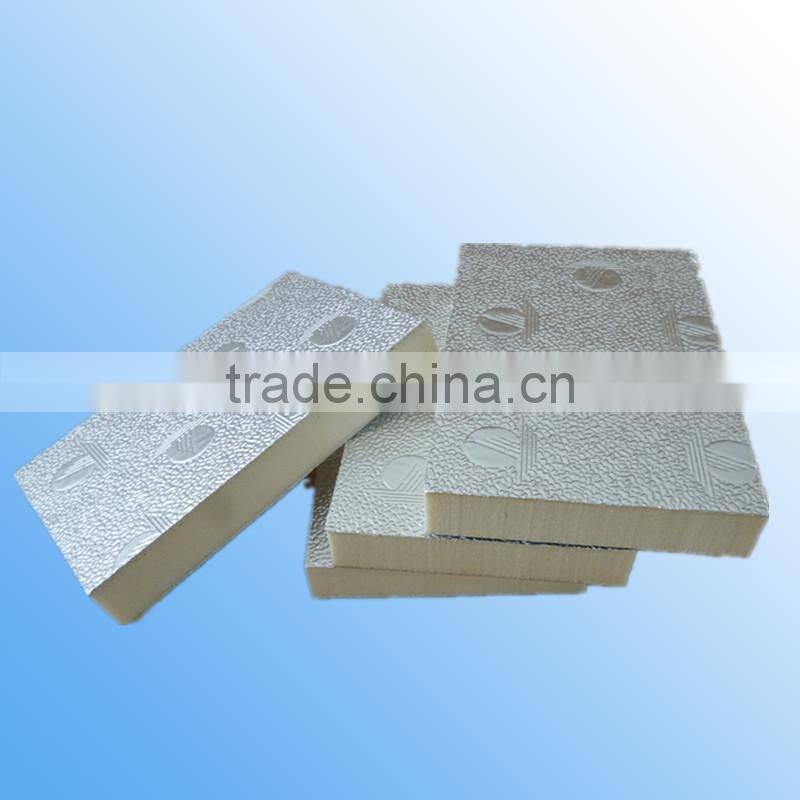

PRODUCT PICTURES
HUAHAI HVAC Air Duct Panel Type:
1.Aluminum foil /Galvanized Iron /Color steel Phenolic air duct panel
2.Aluminum foil /Galvanized Iron/Color steel PUR air duct panel
3.Aluminum foil PIR air duct panel
