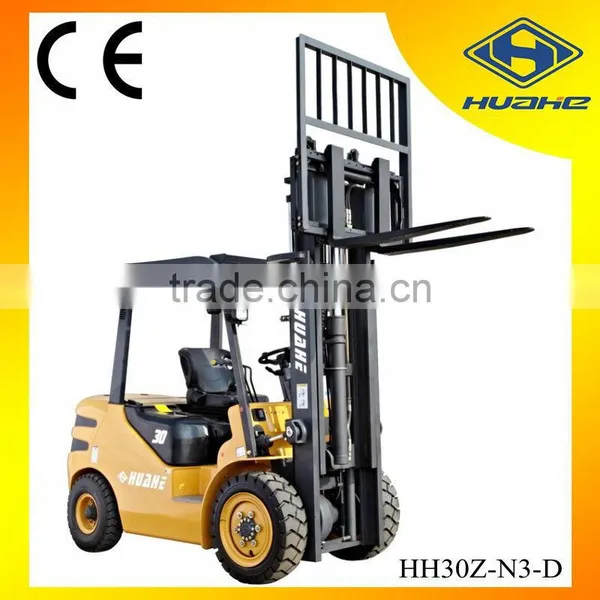

3 Ton Forklift Chinese Engine with Triplex Mast

Name: 3 Ton Forklift Chinese Engine with Triplex Mast
Brand: HUAHE
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Product Details

Condition:	New	Place of Origin:	Zhejiang, China	Brand Name:	HUAHE
Model Number:	HH30Z-N3-D	Type:	Powered Pallet Truck	Power Souce:	Diesel Engine
Rated Loading Capacity:	3000KG	Max. Lifting Height:	6000mm	Min. Lifting Height:	3000mm
Fork Length:	1070mm	Fork Width:	122mm	Overall Dimensions:	2680mm1225mm2120mm
Certification:	CE	After-sales Service Provided:	Engineers available to service machinery overseas

Generals	Model		Unit	HH30	HH30Z
	Power type			Diesel
	Rated capacity		Kg	3000
	Load center		mm	500
Dimensions	Lift height		mm	3000
	Free lift height		mm	130
	Fork size (L×W×T)		mm	1070×125×45
	Mast inclination F/R		Deg	6°/12°
	Front overhang		mm	490
	Overall Dimensions	Length to face of fork	mm	2680
		Overall width	mm	1225
		Mast lowered height	mm	2095
		Overhead guard height	mm	2120
	Turning radius		mm	2460
	Min. right angle aisle width		mm	2105
Performance	Travel speed	Unload I/II	Km/h	9/20
		Full load I/II	Km/h	8.8/18.5
	Lift speed		mm/s	480
	Max. grade ability		%	20
	Max. drawbar pull		Kn	13
	Self weight		Kg	4400
Wheels & Tires	Tires	Front		28×9-15-12PR
		Rear		6.50-10-10PR
	Tread	Front Q	mm	1000
		Rear S	mm	970
	Wheelbase		mm	1700
	Min. ground clearance (unload/full load)	Mast	mm	152/132
		Frame	mm	158/138
Drive units & Control	Battery		V/Ah	12/90
	Engine	Model		A490BPG
		Rated output	Kw/rpm	39/2650
		Rated torque	N.m/rpm	168/1800
		Displacement	cc	2980
	Transmission	Type		Hydraulic
		Shift Fwd/Rwd		1/1 Power shift
	Operating pressure		Mpa	17.5

Huahe Heavy Industries Co., Ltd.: Contact nameShi Heping; Phone86-576-82713329; AddressLibei Village, Jinqing Town, Luqiao District, Taizhou City, Zhejiang Province. China Taizhou,Zhejiang
