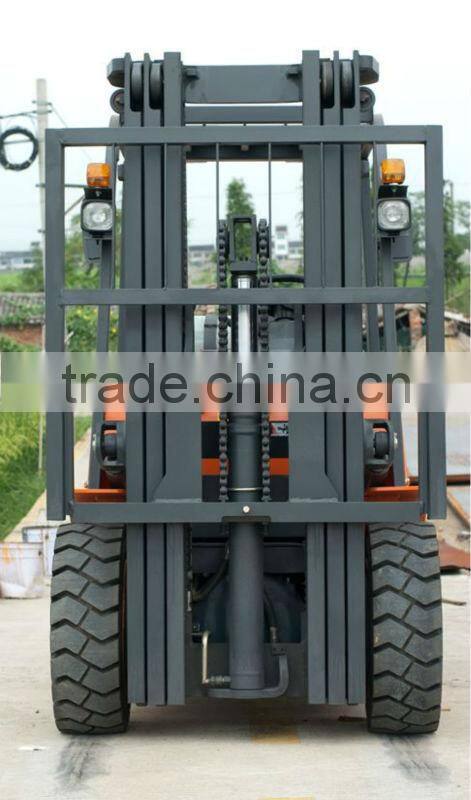

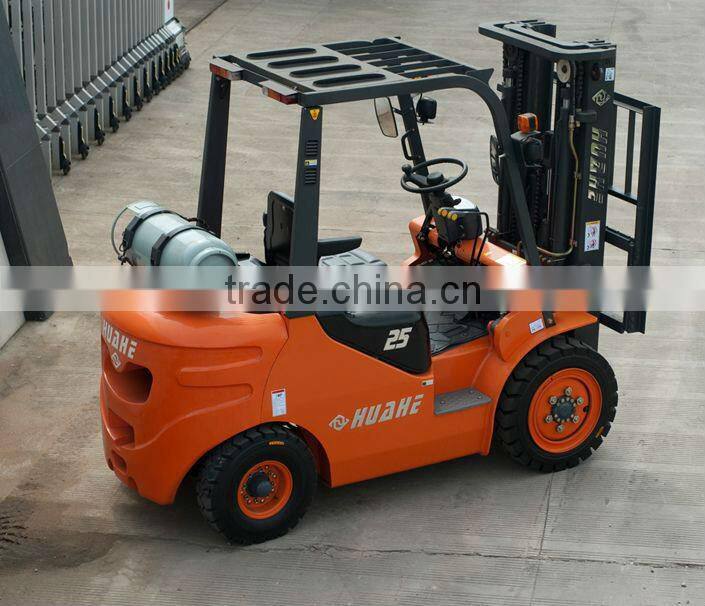

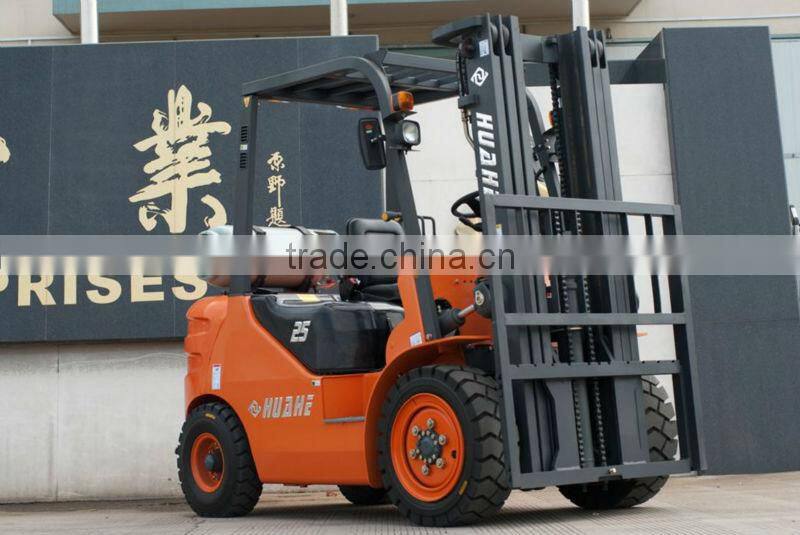

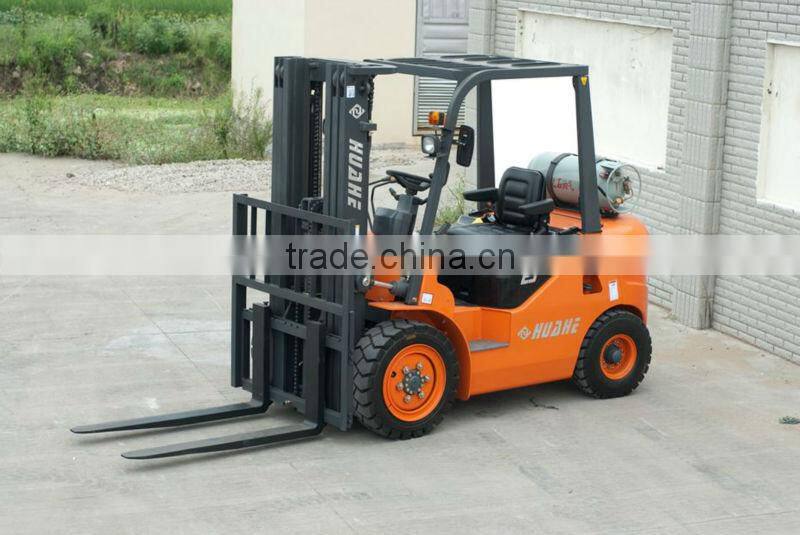

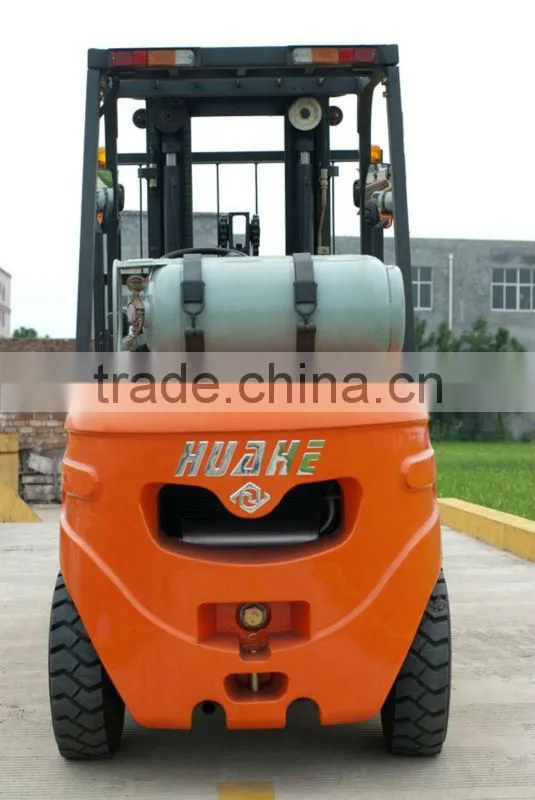

2.5T Gasoline/LPG Dual Fuel Forklift With Nissan Engine

Name: 2.5T Gasoline/LPG Dual Fuel Forklift With Nissan Engine
Brand: HUAHE
SKU: 143332784
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

HUAHE

Huahe Heavy Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name HUAHE

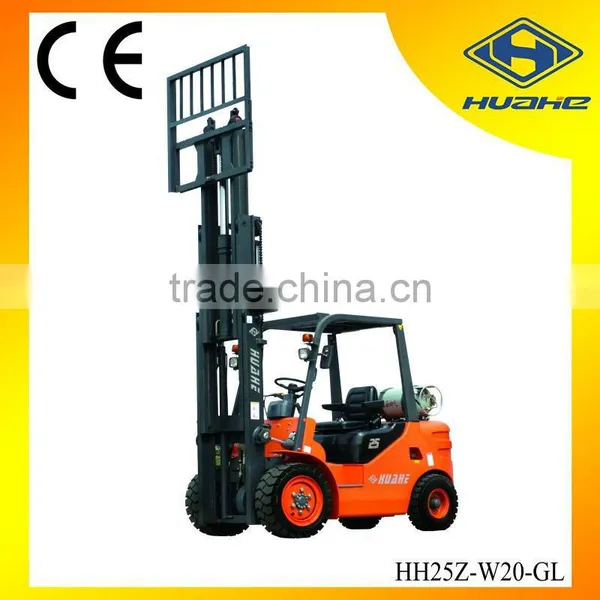

Model Number HH25Z-W20-GL

Type Powered Pallet Truck

Power Souce Gasoline Engine

Rated Loading Capacity 2500KG

Max. Lifting Height 6000mm

Min. Lifting Height 3000mm

Fork Length 1070mm

Fork Width 122mm

Overall Dimensions 2630mm*1150mm*2120mm

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Generals	Model		Unit	HH25	HH25Z
	Power type			Gasoline/LPG
	Rated capacity		Kg	2500
	Load center		mm	500
Dimensions	Lift height		mm	3000
	Free lift height		mm	130
	Fork size (L×W×T)		mm	1070×122×40
	Mast inclination F/R		Deg	6°/12°
	Front overhang		mm	482
	Overall Dimensions	Length to face of fork	mm	2630
		Overall width	mm	1150
		Mast lowered height	mm	2095
		Overhead guard height	mm	2120
	Turning radius		mm	2380
	Min. right angle aisle width		mm	2000
Performance	Travel speed	Unload I/II	Km/h	9/20
		Full load I/II	Km/h	8.8/18.5
	Lift speed		mm/s	480
	Max. grade ability		%	20
	Max. drawbar pull		Kn	14
	Self weight		Kg	4020
Wheels & Tires	Tires	Front		7.00-12-12PR
		Rear		6.00-9-10PR
	Tread	Front Q	mm	970
		Rear S	mm	970
	Wheelbase		mm	1650
	Min. ground clearance (unload/full load)	Mast	mm	152/132
		Frame	mm	158/138
Drive units & Control	Battery		V/Ah	12/90
	Engine	Model		Nissan K21
		Rated output	Kw/rpm	31.2/2250
		Rated torque	N.m/rpm	143.7/1600
		Displacement	cc	2065
	Transmission	Type		Hydraulic
		Shift Fwd/Rwd		1/1 Power shift
	Operating pressure		Mpa	17.5
