Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 5kw Silent Diesel Generator Sets,home Use Silent Three Phase Diesel Generator

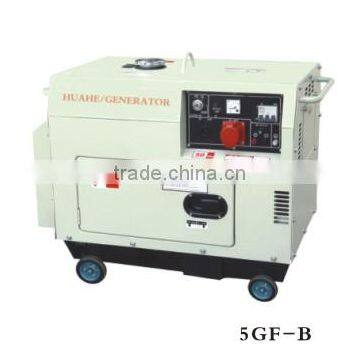

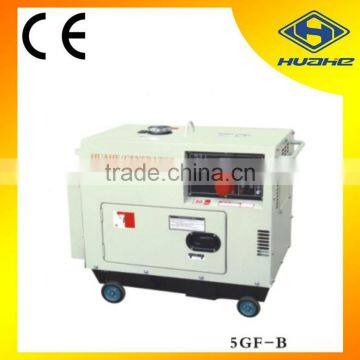

5kw Silent Diesel Generator Sets,home Use Silent Three Phase Diesel Generator
US$ 520 - 550
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HUAHE
Model Number:
5GF-B
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Silent Power Diesel Generator 5kw,air Cooling Diesel GeneratorUS$ 520 - 550MOQ: 72 Units -
China Diesel Generator 5gf ,diesel Generator 230v 50hz for IndustryUS$ 520 - 550MOQ: 72 Units
-
10kw Diesel Generator Price in India,three Phase Diesel Generator Manufacturer in ChinaNegotiableMOQ: 1 Unit
-
5kw Air-cooled Electric Start Diesel Generators,luxury Type Diesel GeneratorUS$ 405 - 410MOQ: 160 Units
-
2000w ac Diesel Generator Air Cooled,220 Volt Diesel GeneratorUS$ 270 - 275MOQ: 160 Units
Place of Origin
Zhejiang, China
Brand Name
HUAHE
Model Number
5GF-B
Output Type
AC Three Phase
Speed
1500RPM
Frequency
50/60HZ
Rated Power
5KW
Rated Voltage
230V/120V
Rated Current
18.3A
5kw silent diesel generator sets,home use silent three phase diesel generator
| Model | Economical type | Luxury type | Silent type | ||||||||||||||||
| 2GF-L | 3GF-L | 5GF-L | 2GF-LH(E) | 3GF-LH(E) | 5GF-LH(E) | 3GF-LDE | 5GF-LDE | ||||||||||||
| GENERATOR | Type | Revolving field type 2 pole generator | |||||||||||||||||
| Frequency(HZ) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | |||
| Cont.Output(KW) | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 2.8 | 3.3 | 4.2 | 5 | |||
| Voltage(A.C)(V) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | 260 | 240(120) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | |||
| Current(A.C)(A) | 7.4 | 8.3(16.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | 7.4 | 8.3(16.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | |||
| Engine Speed(r/min) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |||
| Phase | Single phase | ||||||||||||||||||
| Power factor(COS) | 1 | ||||||||||||||||||
| Excitation system | Controlled Constant Self-excitation | ||||||||||||||||||
| D.C output V/A | 12V/8.3A | ||||||||||||||||||
| Operation Capacity | 12 hour Constant Operation | ||||||||||||||||||
| Coupling Pattern | Straight shaft coupling | ||||||||||||||||||
| Model | 170FG | 178FG | 186FG | 170FG(E) | 178FG(E) | 186FG(E) | 178FG(E) | 186FG(E) | |||||||||||
| ENGINE | Type | Direct injection Vertical,4-cycle,air-cooled diesel engine | |||||||||||||||||
| Displacement(cu.in) | 211(12.88) | 296(18.06) | 406(24.78) | 211(12.88) | 296(18.06) | 406(24.78) | 296(18.06) | 406(24.78) | |||||||||||
| Max.output(KW/rpm) | 2.8 | 3.1 | 4.4 | 4.6 | 6.6 | 7.35 | 2.8 | 3.1 | 4.4 | 4.6 | 6.6 | 7.35 | 4.4 | 4.6 | 6.6 | 7.35 | |||
| Cont.output(KW/rpm) | 2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 4 | 4.4 | 5.9 | 6.6 | |||
| Starting system | Recoil | LE:Electric LH:Recoil | Electric | ||||||||||||||||
| Governor system | Centrfugal weight system | ||||||||||||||||||
| Fuel | Diesel Light fuel(BS-AL or equivalent) | ||||||||||||||||||
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 | 7.5 | 13.55 | 15 | 13.5 | 16 | |||||||||||
| Lube oil capacity(L) | 0.8 | 1.1 | 1.65 | 0.8 | 1.1 | 1.65 | 1.1 | 1.65 | |||||||||||
| Bore x Stroke(mm) | 70×55 | 78×62 | 86×70 | 70×55 | 78×62 | 86×70 | 78×62 | 86×70 | |||||||||||
| Protection System | Low oil,Warning System/Stop Device(not for L-series) | ||||||||||||||||||
| UNIT | Noise level at 7m dB(A) | 79 | 82 | 85 | 79 | 82 | 85 | 70 | |||||||||||
| Dimensions(L×W×H)mm | 575×400×500 | 640×480×530 | 720×480×580 | 575×400×500 | 640×480×530 | 720×480×580 | 840×520×640 | 905×520×680 | |||||||||||
| Dry weight(kg) | 46 | 61 | 95 | LE:70LH:65 | LE:85LH:80 | LE:100LH:95 | 126 | 165 | |||||||||||
1,Selling Points of the product:
1, Low fuel consumption
2, Silent Type
3, Can be widely used in highways, railways, airports, factories, hospitals
4, 60% spare parts are produced by ourselves, such as crankcase, behind frame, fan case, back cover, recoil starter, fuel tank and
2, Factory Show

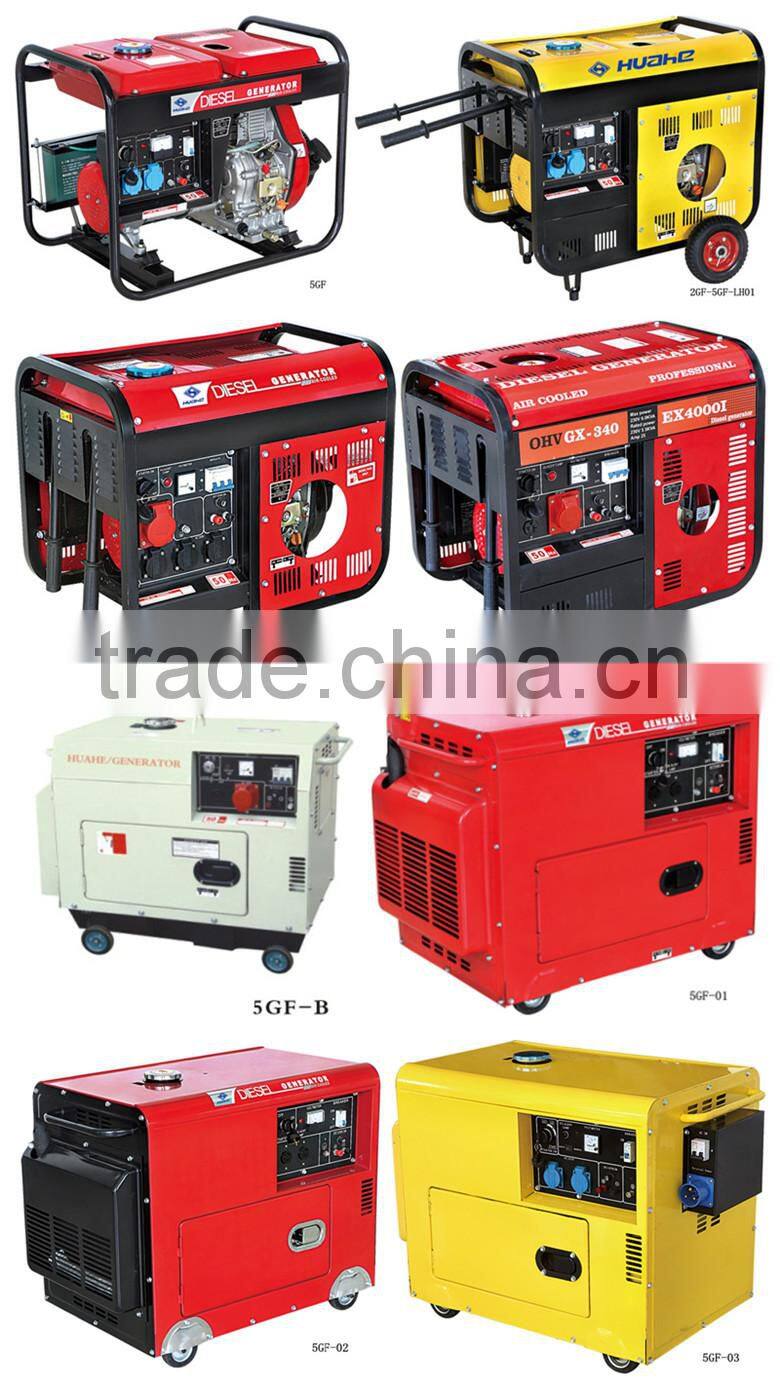

3, The other series
4, Packing

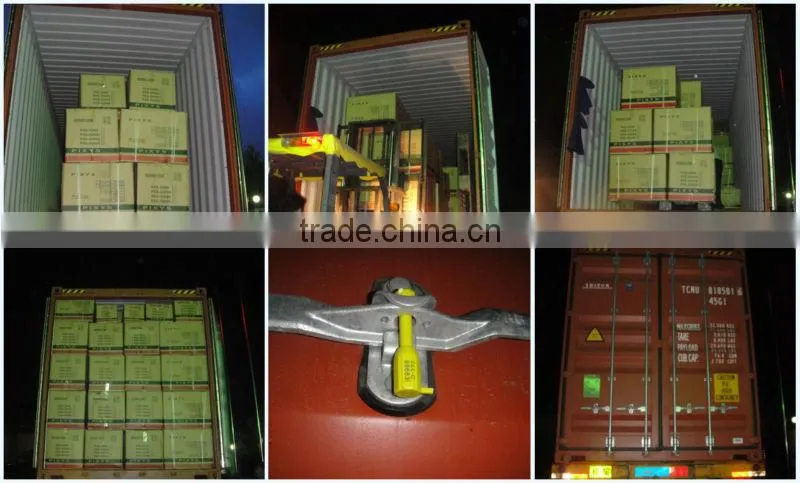

5, Loading
6,Successive exhibition photos
7,Our factory and Product certificate
Advantages:
1.We specialized in all kinds of generators and forklift for 24 years.
2.A well-organized leader team.
3.The reliable service after sales
4.OEM is avaliable.
5.Trade manager is almost online 24 hours
