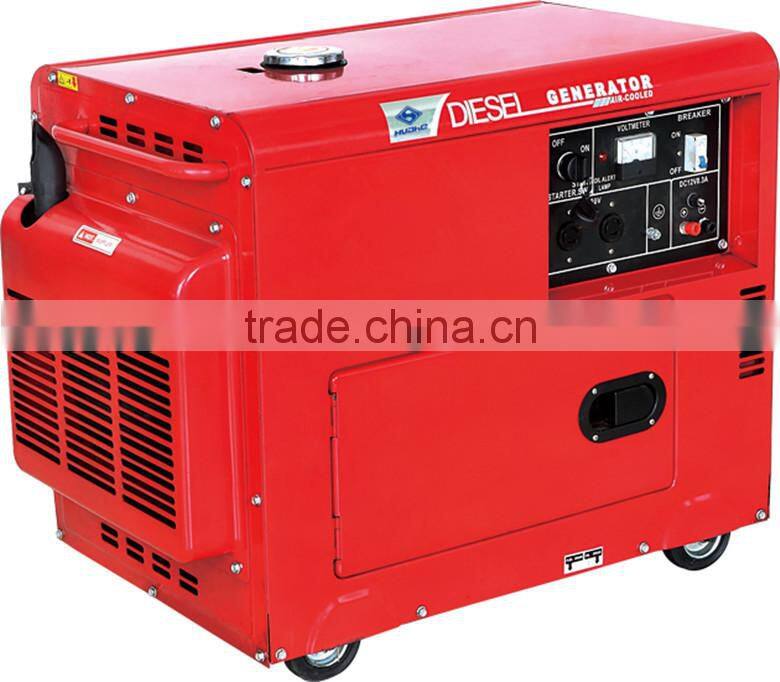

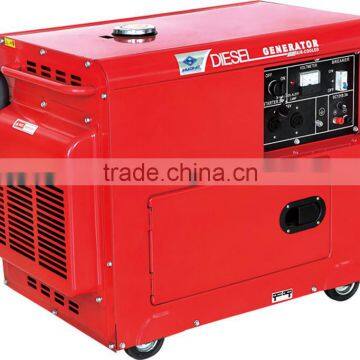

china diesel generator 5gf ,diesel generator 230v 50hz for industry
Model | Silent type | ||
5GF | |||
Generator
| Type | Revolving field type 2 pole generator | |
Frequency (Hz) | 50 | 60 | |
Cont. Output (KW) | 4.2 | 5 | |
Voltage (A.C)(V) | 230 | 240 (120) | |
Current (A.C)(A) | 18.3 | 20.8 (41.7) | |
Engine speed (r/min) | 3000 | 3600 | |
Phase | Single phase | ||
Power factor (COSΦ) | 1 | ||
Excitation system | Controlled constant self-excitation | ||
D.C output V/A | 12V/8.3A | ||
Operation capacity | 12 hour constant operation | ||
Coupling pattern | Straight shaft coupling | ||
Model | 186FG(E) | ||
Engine
| Type | Direct injection vertical, 4-cycle, air-cooled diesel engine | |
Displacement cc (cu.in) | 406 (24.78) | ||
Max. output (KW/rpm) | 6.6 | 7.35 | |
Cont. output (KW/rpm) | 5.9 | 6.6 | |
Starting system | Electric start | ||
Governor system | Centrifugal weight system | ||
Fuel | Diesel light fuel (BS-AL or equivalent) | ||
Fuel tank capacity (L) | 16 | ||
Lube oil capacity (L) | 1.65 | ||
Bore×Stroke | 86×75 | ||
Protection system | Low oil, warning system/Stop device (not for L-series) | ||
Unit
| Noise level at 7m dB (A) | 770 | |
Dimension (L×W×H) (mm) | 950×580×740 | ||
Dry weight (kg) | 157 | ||
1,Selling Points of the product:
1, Low fuel consumption
2, Ultra-low-noise
3, Can be widely used in highways, railways, airports, factories, hospitals
2, Factory Show
3, The same series
4, Packing
5, Loading
6,Successive exhibition photos
7,Our factory and Product certificate
Advantages:
1.We specialized in all kinds of generators and forklift for 24 years.
2.A well-organized leader team.
3.The reliable service after sales
4.OEM is avaliable.
5.Trade manager is almost online 24 hours
