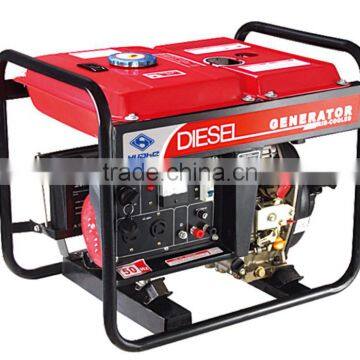

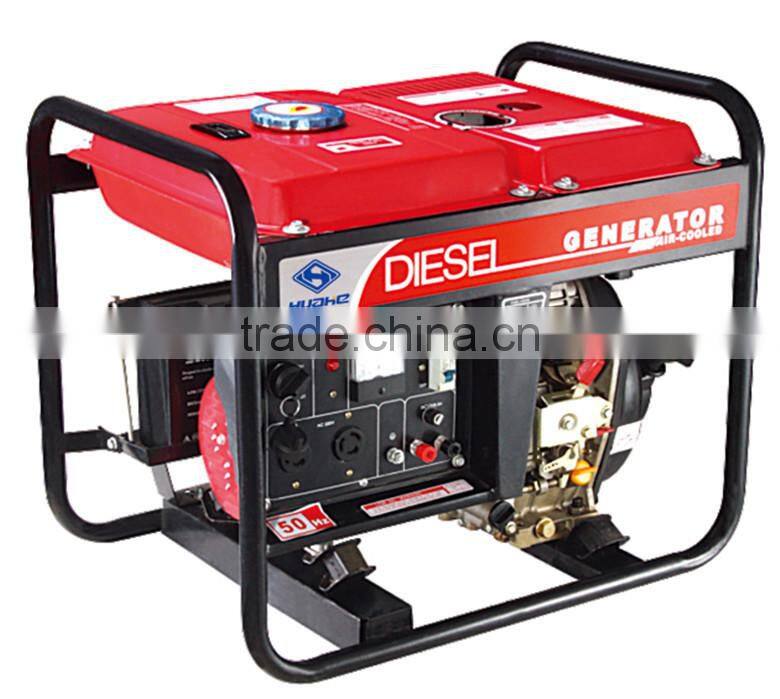

2000w ac diesel generator air cooled,220 volt diesel generator
Brief Introduction:
1. With 24 years' manufacture & sales experience, we prefer LONG-TERM COORPORATION WITH YOU!
2. Main Product Lines:
a.Gasoline Generator Series: 0.65--5KW ,gasoline engine, recoil or electric start.OEM Offered . CE certificates.
b.Diesel Generator Series: 5--720KW. CE certificates.
c.Engine Series : 168,168F,170F,177F,182,188F.CE certifications.
d.Water Pump Series: 1.5',2',3', 4' Water pumps. CE certificates.
e.Pressure Washer Series: 2--10HP. diesel/ gasoline pressure washer.CE certificates.
f. Tiller Series: Garden,small farm,large field,ect.
g.IC Forklift Series
h.Electric Pallet Truck Series
i.Electric Stacker Series
j.Accessories:OEM Offered .
Discription Of Product
Model | Economical type | ||
2GF | |||
Generator
| Type | Revolving field type 2 pole generator | |
Frequency (Hz) | 50 | 60 | |
Cont. Output (KW) | 1.7 | 2 | |
Voltage (A.C)(V) | 230 | 240 (120) | |
Current (A.C)(A) | 7.4 | 8.3 (16.7) | |
Engine speed (r/min) | 3000 | 3600 | |
Phase | Single phase | ||
Power factor (COSΦ) | 1 | ||
Excitation system | Controlled constant self-excitation | ||
D.C output V/A | 12V/8.3A | ||
Operation capacity | 12 hour constant operation | ||
Coupling pattern | Straight shaft coupling | ||
Model | 170FG | ||
Engine
| Type | Direct injection vertical, 4-cycle, air-cooled diesel engine | |
Displacement cc (cu.in) | 211 (12.88) | ||
Max. output (KW/rpm) | 2.8 | 3.1 | |
Cont. output (KW/rpm) | 2.5 | 2.8 | |
Starting system | Recoil start/ Electric start | ||
Governor system | Centrifugal weight system | ||
Fuel | Diesel light fuel (BS-AL or equivalent) | ||
Fuel tank capacity (L) | 12.5 | ||
Lube oil capacity (L) | 0.8 | ||
Bore×Stroke | 70×55 | ||
Protection system | Low oil, warning system/Stop device (not for L-series) | ||
Unit
| Noise level at 7m dB (A) | 79 | |
Dimension (L×W×H) (mm) | 680×470×560 | ||
Dry weight (kg) | 73 | ||
Product Option
Engine:The effective intake and combustion of overhead valve,with easy starting and automatic decompression device;quick response of speed governor;stable transistor ignition system;excellent bearing performance,low vibration of the aluminum connect rod.
Oil alert:Oil level under the level line,the engine stops working automatically.
Automatic voltage adjustor:Keeping the voltage stable is especially important for sensitive equipment.
Fuel meter:Show the varietal of fuel accurately.
Factory Show
Packing

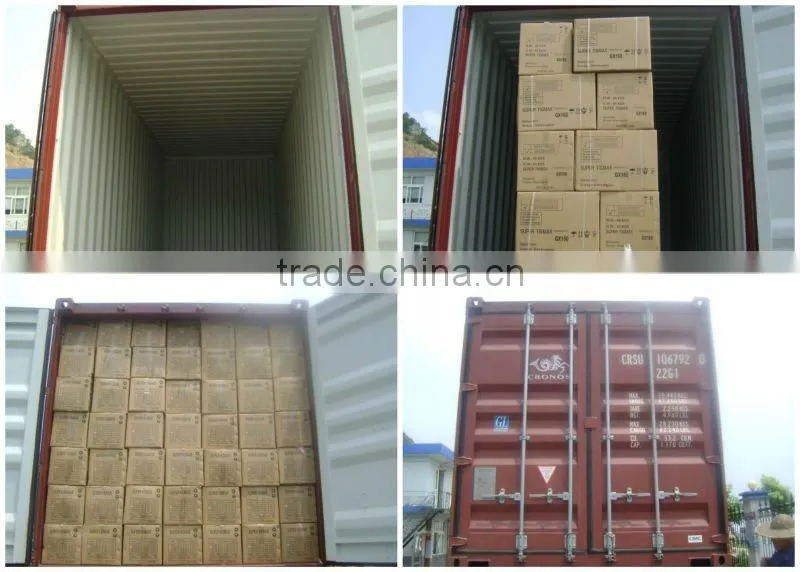

Loading
Certificate
Remarks: We can offer the OEM/ODM/Drop shipping service,can put your own brand or provide your design and tech pack to us,we make sample as your request.
As the price is quite different for your order quatities,before you place an order,pls be kindly to negotiate with us for the latest pirce!Thank you.
