5kw air cooled diesel powered generator,5kw diesel generator price
| MODEL | Economical type | Luxury type | Silent type | ||||||||||||
| 2GF | 3GF | 5GF | 2GF-5GF-LH01 | 2GF-5GF-LH02 | 2GF-5GF-LH03 | 5GF | |||||||||
| GENERATOR | Type | Revolving field type 2 pole generator | |||||||||||||
| Frequency(HZ) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | |
| Cont.Output(Kw) | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 4.2 | 5 | |
| Voltage(A.C)(V) | 230 | 240(120) | 230 | 240 (120) | 230 | 240 (120) | 230 | 240 (120) | 230 | 240 (120) | 230 | 240 (120) | 230 | 240 (120) | |
| Current(A.C)(A) | 7.4 | 8.3(16.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | 7.4 | 8.3(16.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | 18.3 | 20.8(41.7) | |
| Engine Speed(r/min) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |
| Phase | Single /three | ||||||||||||||
| Power factor(COS) | 1 | ||||||||||||||
| Excitation system | Controlled Constant Self-excitation | ||||||||||||||
| D.C output V/A | 12V/8.3A | ||||||||||||||
| Operation Capacity | 12 hour Constant Operation | ||||||||||||||
| Coupling Pattern | Straight shaft coupling | ||||||||||||||
| 170FG | 178FG | 186FG | 170FG(E) | 178FG(E) | 186FG(E) | 186FG(E) | |||||||||
| ENGINE | Type | Direct injection Vertical,4-cycle,air-cooled diesel engine | |||||||||||||
| Displacement cc(cu.in) |
211(12.88) |
29(18.06) | 406(24.78) | 211(12.88) | 296(18.06) | 406(24.78) | 406(24.78) | ||||||||
| Max.output(KW/rpm) | 2.8 | 3.1 | 4.4 | 4.6 | 6.6 | 7.35 | 2.8 | 3.1 | 4.4 | 4.6 | 6.6 | 7.35 | 6.6 | 7.35 | |
| Cont.output(KW/rpm) | 2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 5.9 | 6.6 | |
| Starting system | Recoil | Electric | Electric | ||||||||||||
| Governor system | Centrfugal weight system | ||||||||||||||
| Fuel | Diesel Light fuel(BS-AL or equivalent) | ||||||||||||||
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 | 7.5 | 15 | 13.55 | 16 | ||||||||
| Lube oil capacity(L) | 0.8 | 1.1 | 1.65 | 0.8 | 1.65 | 1.1 | 1.65 | ||||||||
| Bore x Stroke(mm) | 70×55 | 78×62 | 86×70 | 70×55 | 86×70 | 78×62 | 86×70 | ||||||||
| UNIT | Protection system | Low oil,Warning System/Stop Device(not for L-series) | |||||||||||||
| Noise level at 7m dB(A) | 79 | 82 | 85 | 79 | 82 | 85 | 70 | ||||||||
| Dimensions(L×W×H)mm | 575×400×500 | 640×480×530 | 720×480×580 | 575×400×500 | 640×480×530 | 720×480×580 | 950×580×740 | ||||||||
| Dry weight(kg) | 46 | 61 | 95 | LE:70LH:65 | LE:85LH:80 | LE:100LH:95 | 165 | ||||||||
1,Selling Points of the product
Engine:The effective intake and combustion of overhead valve,with easy starting and automatic decompression device;quick response of speed governor;stable transistor ignition system;excellent bearing performance,low vibration of the aluminum connect rod.
Silencer:Use the large silencer produced by patented technology,to minimize the noise.
Oil alert:Oil level under the level line,the engine stops working automatically.
Automatic voltage adjustor:Keeping the voltage stable is especially important for sensitive equipment.
Fuel meter:Show the varietal of fuel accurately.

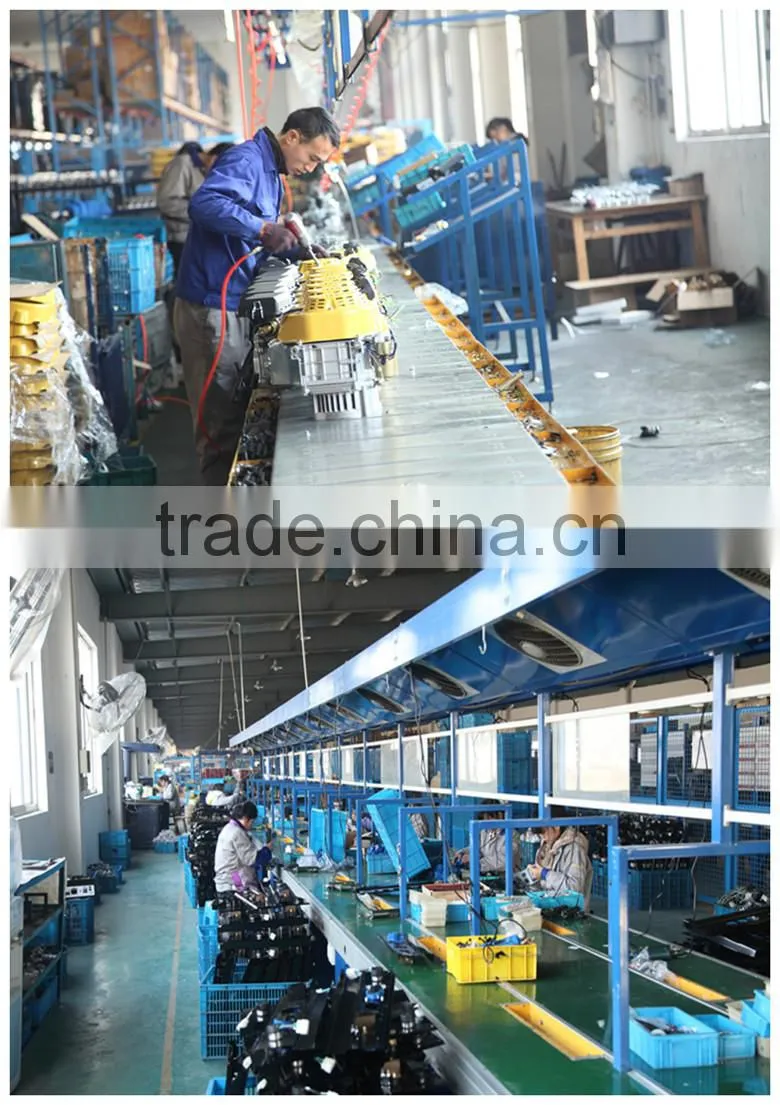

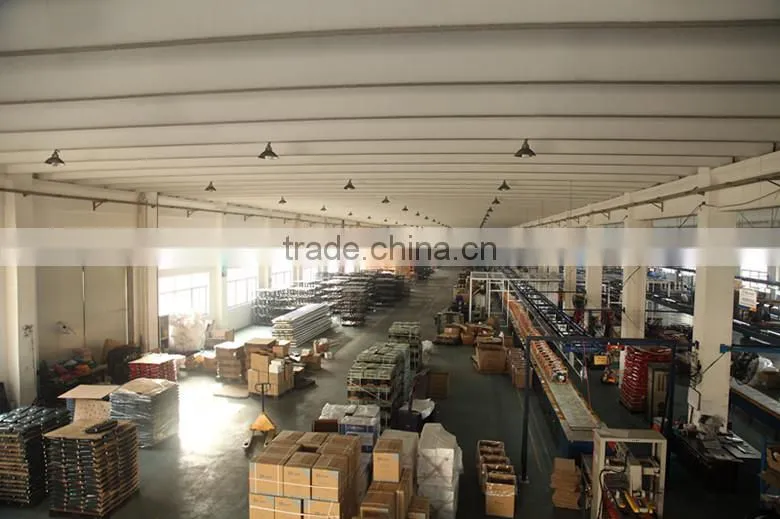

2, Factory Show
3, The same series
4, Packing
5, Loading
6, Successive exhibition photos
7, Our factory and Product certificate
Advantages:
1.We specialized in all kinds of generators and forklift for 24 years.
2.A well-organized leader team.
3.The reliable service after sales
4.OEM is avaliable.
5.Trade manager is almost online 24 hours
