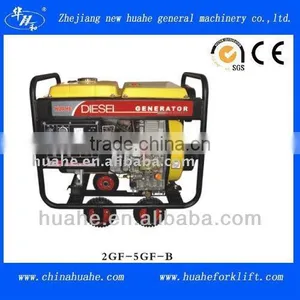

5000watts Small Diesel Generator for Sale,diesel Generator Huahe
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HUAHE
Model Number:
2GF-5GF-B
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Huahe 5000w Silent Diesel Generator Systems/china Diesel Generator Price in ZhejiangUS$ 520 - 550MOQ: 72 Pieces -
5kva 186f Silent Small Diesel Generators for Sale,diesel Generating SetUS$ 520 - 550MOQ: 1 Piece
-
10 Kva 3 Phase Portable Diesel Generator, Diesel Generating,chinese Power Diesel GeneratorNegotiableMOQ: 1 Piece
-
15kw Air-cooled Silent Diesel Generator,portable Diesel Generator With CE, ISO9001, EPA, TUVUS$ 1 - 1,200MOQ: 1 Piece
-
30kw 3-phase 50hz Diesel Generator Open Type Zhejiang Huahe,diesel Generating SetNegotiableMOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
HUAHE
Model Number
2GF-5GF-B
Output Type
AC Three Phase
Speed
3600RPM
Frequency
50/60HZ
Rated Power
2KW-5KW
Rated Voltage
230V/120V
Rated Current
7.4A-20.8A
5000watts small diesel generator for sale,diesel generator huahe
60% spare parts are produced by ourselves, such as crankcase, behind frame, fan case, back cover, recoil
- Technical Data:
Model |
Economical type | Luxury type | Silent type | ||||||||||||||
| 2GF-L | 3GF-L | 5GF-L | 2GF-LH(E) | 3GF-LH(E) | 5GF-LH(E) | 3GF-LDE | 5GF-LDE | ||||||||||
| GENERATOR | Type | Revolving field type 2 pole generator | |||||||||||||||
| Frequency(HZ) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | |
| Cont.Output(KW) | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 2.8 | 3.3 | 4.2 | 5 | |
| Voltage(A.C)(V) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | 260 | 240(120) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | |
| Current(A.C)(A) | 7.4 | 8.3(16.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | 7.4 | 8.3(16.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | |
| Engine Speed(r/min) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |
| Phase | Single phease | ||||||||||||||||
| Power factor(COS) | 1 | ||||||||||||||||
| Excitation system | Controlled Constant Self-excitation | ||||||||||||||||
| D.C output V/A | 12V/8.3A | ||||||||||||||||
| Operation Capacity | 12 hour Constant Operation | ||||||||||||||||
| Coupling Pattern | Straight shaft coupling | ||||||||||||||||
| Model | 170FG | 178FG | 186FG | 170FG(E) | 178FG(E) | 186FG(E) | 178FG(E) | 186FG(E) | |||||||||
| ENGINE | Type | Direct injection Vertical,4-cycle,air-cooled diesel engine | |||||||||||||||
| Displacement(cu.in) | 211(12.88) | 296(18.06) | 406(24.78) | 211(12.88) | 296(18.06) | 406(24.78) | 296(18.06) | 406(24.78) | |||||||||
| Max.output(KW/rpm) | 2.8 | 3.1 | 4.4 | 4.6 | 6.6 | 7.35 | 2.8 | 3.1 | 4.4 | 4.6 | 6.6 | 7.35 | 4.4 | 4.6 | 6.6 | 7.35 | |
| Cont.output(KW/rpm) | 2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 4 | 4.4 | 5.9 | 6.6 | |
| Starting system | Recoil | LE:Electric LH:Recoil | Electric | ||||||||||||||
| Governor system | Centrfugal weight system | ||||||||||||||||
| Fuel | Diesel Light fuel(BS-AL or equivalent) | ||||||||||||||||
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 | 7.5 | 13.55 | 15 | 13.5 | 16 | |||||||||
| Lube oil capacity(L) | 0.8 | 1.1 | 1.65 | 0.8 | 1.1 | 1.65 | 1.1 | 1.65 | |||||||||
| Bore x Stroke(mm) | 70×55 | 78×62 | 86×70 | 70×55 | 78×62 | 86×70 | 78×62 | 86×70 | |||||||||
| Protection System | Low oil,Warning System/Stop Device(not for L-series) | ||||||||||||||||
| UNIT | Noise level at 7m dB(A) | 79 | 82 | 85 | 79 | 82 | 85 | 70 | |||||||||
| Dimensions(L×W×H)mm | 575×400×500 | 640×480×530 | 720×480×580 | 575×400×500 | 640×480×530 | 720×480×580 | 840×520×640 | 905×520×680 | |||||||||
| Dry weight(kg) | 46 | 61 | 95 | LE:70LH:65 | LE:85LH:80 | LE:100LH:95 | 126 | 165 | |||||||||
- Factory Show

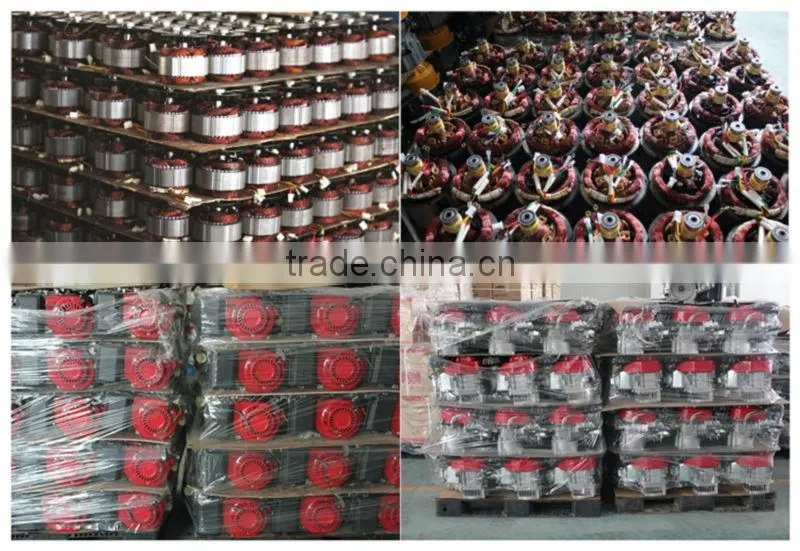

- Raw Material
- Assembly
- Packing
- Loading
- Certificate

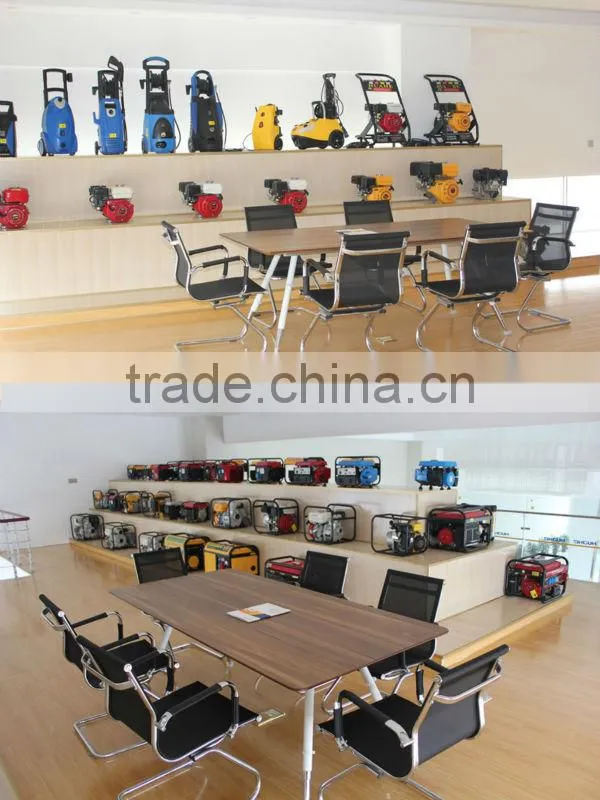

- Sample Room
- Customers
0.65 kva - 720kva gasoline generator
Professional generator manufactrurer with R&D capacity
Reliable quality, reasonable price, desirable service
Tell us your demand, provide what you want
Contact us now, let's make a deal.........
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2005
Factory Size
50,000-100,000 square meters
Total Employees
301 - 500 People
