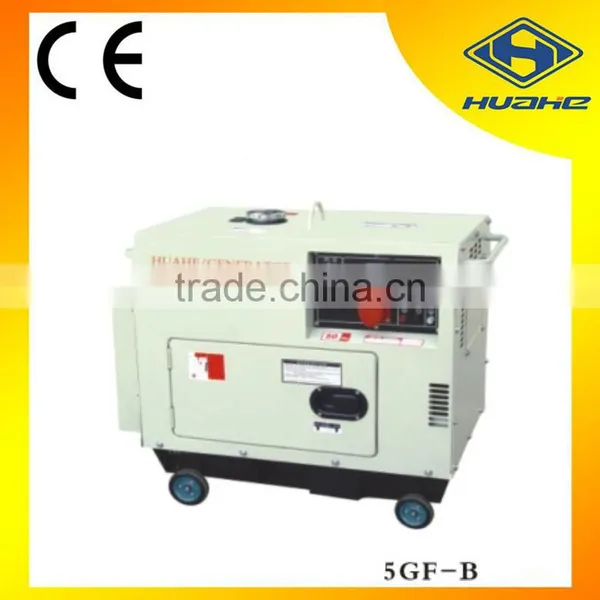

5kva 186f silent small diesel generators for sale,diesel generating set
Features

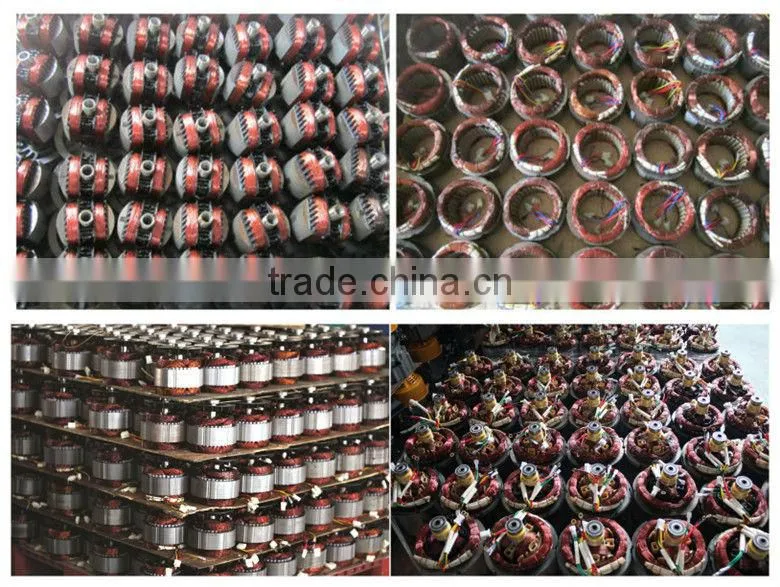

01. 60% spare parts are produced by ourselves, such as crankcase, behind frame, fan case, back cover, recoil starter, fuel tank and
02. Low fuel consumption
03. Convenient in operation
04. Long run time - up to 12.5 hours
05. Oil alert to shut down engine automatically when low oil is detected
06. Circuit breaker to stop engine automatically when overloaded
07. Can be widely used in highways, railways, airports, factories, hospitals , and much more
08. CE,ISO9001:2000 certification approved
09. One year or 500 hours warranty
10. Patent design, unique appearance and function
Specifications for this diesel generator:
| Model | Economical type | Luxury type | Silent type | ||||||||||||||
| 2GF-L | 3GF-L | 5GF-L | 2GF-LH(E) | 3GF-LH(E) | 5GF-LH(E) | 3GF-LDE | 5GF-LDE | ||||||||||
| GENERATOR | Type | Revolving field type 2 pole generator | |||||||||||||||
| Frequency(HZ) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | |
| Cont.Output(KW) | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 2.8 | 3.3 | 4.2 | 5 | |
| Voltage(A.C)(V) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | 260 | 240(120) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | |
| Current(A.C)(A) | 7.4 | 8.3(16.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | 7.4 | 8.3(16.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | |
| Engine Speed(r/min) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |
| Phase | Single phase | ||||||||||||||||
| Power factor(COS) | 1 | ||||||||||||||||
| Excitation system | Controlled Constant Self-excitation | ||||||||||||||||
| D.C output V/A | 12V/8.3A | ||||||||||||||||
| Operation Capacity | 12 hour Constant Operation | ||||||||||||||||
| Coupling Pattern | Straight shaft coupling | ||||||||||||||||
| Model | 170FG | 178FG | 186FG | 170FG(E) | 178FG(E) | 186FG(E) | 178FG(E) | 186FG(E) | |||||||||
| ENGINE | Type | Direct injection Vertical,4-cycle,air-cooled diesel engine | |||||||||||||||
| Displacement(cu.in) | 211(12.88) | 296(18.06) | 406(24.78) | 211(12.88) | 296(18.06) | 406(24.78) | 296(18.06) | 406(24.78) | |||||||||
| Max.output(KW/rpm) | 2.8 | 3.1 | 4.4 | 4.6 | 6.6 | 7.35 | 2.8 | 3.1 | 4.4 | 4.6 | 6.6 | 7.35 | 4.4 | 4.6 | 6.6 | 7.35 | |
| Cont.output(KW/rpm) | 2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 4 | 4.4 | 5.9 | 6.6 | |
| Starting system | Recoil | LE:Electric LH:Recoil | Electric | ||||||||||||||
| Governor system | Centrfugal weight system | ||||||||||||||||
| Fuel | Diesel Light fuel(BS-AL or equivalent) | ||||||||||||||||
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 | 7.5 | 13.55 | 15 | 13.5 | 16 | |||||||||
| Lube oil capacity(L) | 0.8 | 1.1 | 1.65 | 0.8 | 1.1 | 1.65 | 1.1 | 1.65 | |||||||||
| Bore x Stroke(mm) | 70×55 | 78×62 | 86×70 | 70×55 | 78×62 | 86×70 | 78×62 | 86×70 | |||||||||
| Protection System | Low oil,Warning System/Stop Device(not for L-series) | ||||||||||||||||
| UNIT | Noise level at 7m dB(A) | 79 | 82 | 85 | 79 | 82 | 85 | 70 | |||||||||
| Dimensions(L×W×H)mm | 575×400×500 | 640×480×530 | 720×480×580 | 575×400×500 | 640×480×530 | 720×480×580 | 840×520×640 | 905×520×680 | |||||||||
| Dry weight(kg) | 46 | 61 | 95 | LE:70LH:65 | LE:85LH:80 | LE:100LH:95 | 126 | 165 | |||||||||
Tell us your detailed requirement, to recommend you the right generator model
International certificates approved
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Packaging & Shipping
--------------------------------------------------------------------------------------------------------------------------------------
Each gasoline generator set is wrapped in poly bag, then into carton. With Owners Manual in it
Standard colorful carton is available, ready for retail
Our Services
---------------------------------------------------------------------------------------------------------------------------------------------------

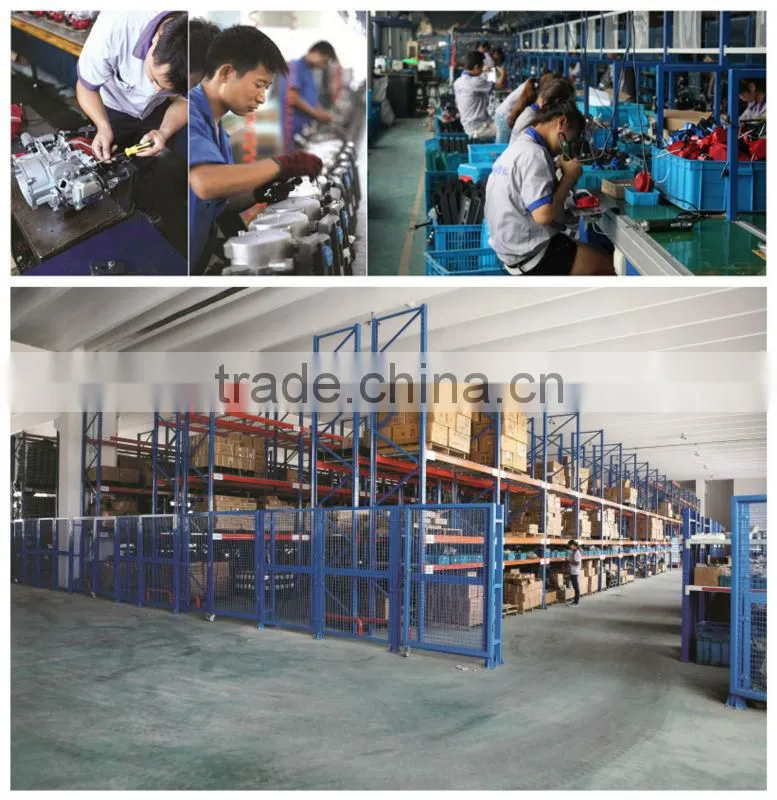

Strict quality control in the whole production, including raw metarial, production site, 100% test before packing.

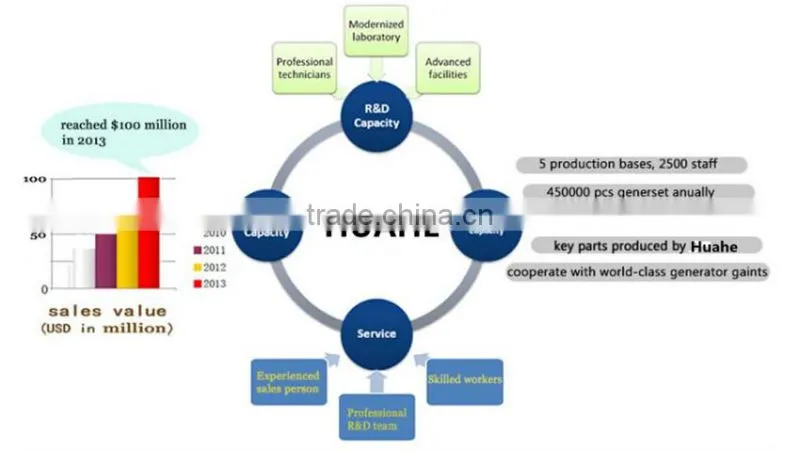

Three reasons for choosing Huahe
-----------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------
1 kva -720kva gasoline generator
Professional generator manufactrurer with R&D capacity
Reliable quality, reasonable price, desirable service
Tell us your demand, provide what you want
Contact us now, let's make a deal.........
