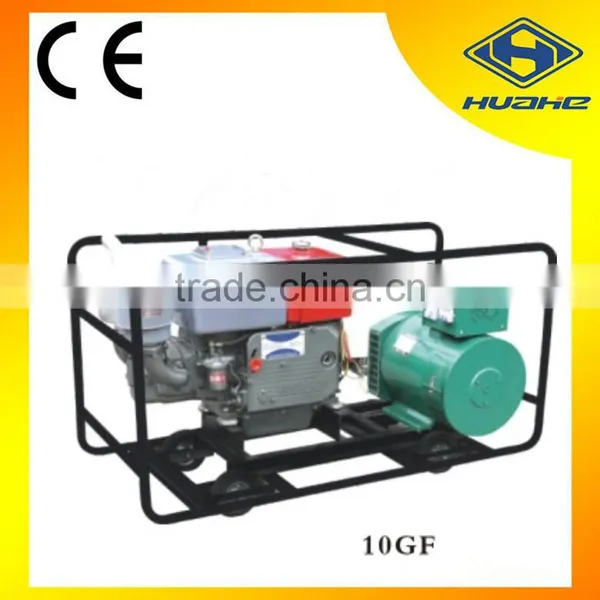

10 Kva 3 Phase Portable Diesel Generator, Diesel Generating,chinese Power Diesel Generator
10 kva 3 phase portable diesel generator, diesel generating,chinese power diesel generator
Brief Introduction:
1. With 24 years' manufacture & sales experience, we prefer LONG-TERM COORPORATION WITH YOU!
2. Main Product Lines:
a.Gasoline Generator Series: 0.65--5KW ,gasoline engine, recoil or electric start.OEM Offered . CE certificates.
b.Diesel Generator Series: 2--720KW. CE certificates.
c.Engine Series : 168,168F,170F,177F,182,188F.CE certifications.
d.Water Pump Series: 1.5‘,2',3', 4' Water pumps. CE certificates.
e.Pressure Washer Series: 2--10HP. diesel/ gasoline pressure washer.CE certificates.
f. Tiller Series: Garden,small farm,large field,ect.
g.IC Forklift Series
h.Electric Pallet Truck Series
i.Electric Stacker Series
j.Accessories:OEM Offered .
Discription Of Product
| Model of Gen-set | Unit | 1GF | 2GF | 3GF | 5GF | 8GF | 10GF | 12GF | 15GF | 20GF | 24GF | 30GF | 40GF | |
| Rated power | KW | 1 | 2 | 3 | 5 | 8 | 10 | 12 | 15 | 20 | 24 | 30 | 40 | |
| Diesel Engine | Model | 165F | 170F(D) | R175(ND) | 195(ND) | S1100(ND) | ZH1105(ND) 295D | ZH1110(ND) 295D | S1115 | 495D | 495D 4100D | 495ZD 4105D | 4100ZD-1 | |
| 12Hours Ratedoutput | kw/ps | 2.21/3 | 2.94/4 | 4.4/6 | 8.8/12 | 11/15 | 13.2/18 | 14.7/20 | 19.7/27 | 26.5/36 | 26.5/36 | 35.2/48 | 8.8/12 | |
| Fuel consumption | g/kw.h | 292.3 | 257 | 246.2 | 248.2 | 252.6 | 258.4 | 251.6 | ||||||
| Cooling Method | Air/water-cooled | Evaporation or Radiator | Water cooled | |||||||||||
| Starting Method | Hand cranking or electric starting | Electric starting | ||||||||||||
| Generator | Model | ST-1 STC-1 | ST-2 STC-2 | ST-3 STC-3 | ST-5 STC-5 | ST-8 STC-8 | ST-10 STC-10 | ST-12 STC-12 | ST-15 STC-15 | ST-20 STC-20 | ST-24 STC-24 | ST-30 STC-30 | ST-40 STC-40 | |
| Rated output | KW | 1 | 2 | 3 | 5 | 8 | 10 | 12 | 15 | 20 | 24 | 30 | 40 | |
| Rated Voltage | V | 230V/115V or 400V/230V | 230V/115V or 400V/230V | |||||||||||
| Rated Current | A | 4.34 1.8 | 8.7 3.6 | 13 5.4 | 21.8 9 | 34.8 14.4 | 43.5 18.1 | 52.1 21.7 | 27.1 | 36 | 43.3 | 54 | 72 | |
| Frequency | HZ | 50/60HZ | ||||||||||||
| Power Factor | 1 0.8 | 1 0.8 | 1 0.8 | 1 0.8 | 1 0.8 | 1 0.8 | 1 0.8 | 1 0.8 | 1 0.8 | 0.8 Lagging | ||||
| Phase Connection | 1-Phase or 3-Phase 4-wire | |||||||||||||
| Exciation | Harmonic Excitation or phase compound or brushlese | |||||||||||||
| Control Panel | Model | BF-S-12 | BF-S-15 | BF-S-20 | BF-S-24 | BF-S-30 | BF-S-40 | |||||||
| Voltage Regulation | Manual/Automatic | |||||||||||||
| Net Weight | kg | 90 | 130 | 150 | 320 | 340 | 360 | 380 | 620 | 680 | 680 | 780 | 1300 | |
| Gross Weight | kg | 110 | 150 | 170 | 360 | 380 | 400 | 420 | 680 | 760 | 760 | 830 | 1450 | |
| Packing Size L×W×H | cm | 100×52×65 | 135×71×76 | 140×71×76 | 180×73×120 | 100×52×65 | 210×75×130 | 230×75×150 | ||||||
Selling Points of the product
Strong power
High efficiency
Convenient in operation
Factory Show
Packing
Loading
Certificate
Remarks: We can offer the OEM/ODM/Drop shipping service,can put your own brand or provide your design and tech pack to us,we make sample as your request.
As the price is quite different for your order quatities,before you place an order,pls be kindly to negotiate with us for the latest pirce!Thank you.
