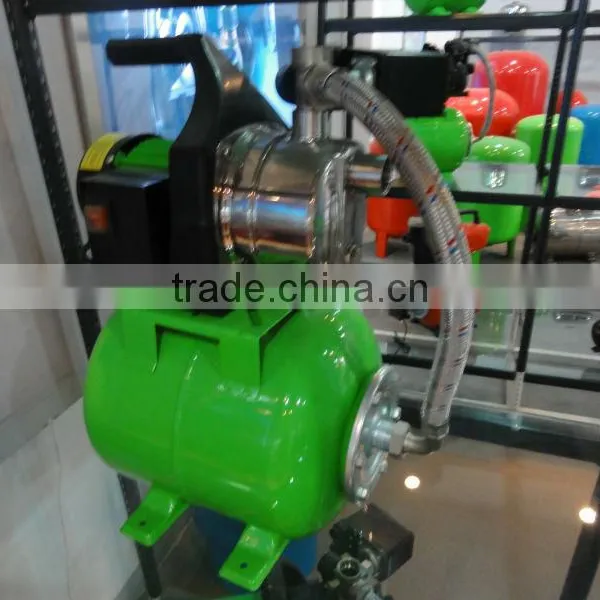

600W Water Booster Pump

Specifications

600W Water Booster Pump
Pump casing:Cast Iron
Impeller:ABS/Brass/Noryl
Diffuser:Noryl/PPO/ABS/Cast iron

600W Water Booster Pump



1. Working conditions:

Max temperature of fluid up to:     50

Max ambient temperature up to:        40

Max Pressure:                        8bar

2. Structural characteristics:

Pump casing:       Cast Iron

Impeller:           ABS/Brass/Noryl

Diffuser:           Noryl/PPO/ABS/Cast iron

Motor Housing:     Aluminum

Pump-motor adaptor:Aluminum/Cast iron

Mechanical seal:    Stainless steel(graphite to ceramic)

Shaft:             45# steel or stainless steel

Bearing:           SKF/NTN/NSK/China

Insulation class:     B/F

Protection class:    IP44 and IP54

3.Technical data(220V,50HZ)110V,115V,127V,230V,240V,110/220V,50HZ/60HZ,380V 50HZ three-phase etc.
