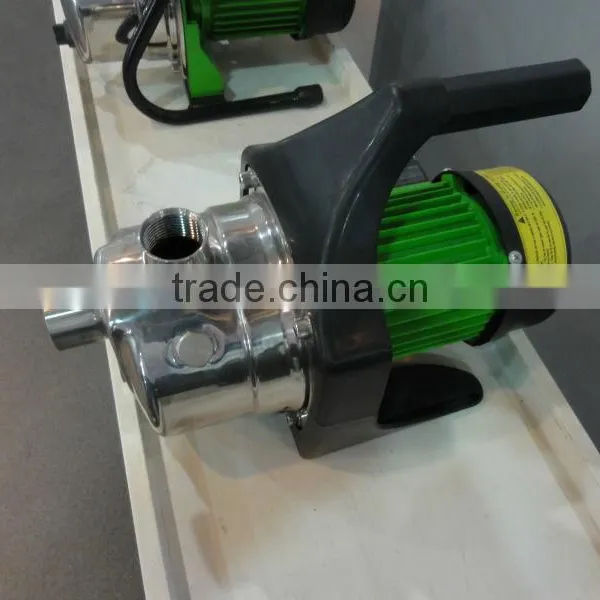

Stainless Steel Pump Body Garden Pump
USD $58 - $99
/ Piece
300 Pieces(Min.Order)
- 50000 Piece / Pieces per Month
- FOB NINGBO/FUZHOU CHINA
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Huifeng | |
| Model Number | CGP | Theory | Jet Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Electric | Pressure | Other, Max. 8bar | |
| Application | Other, Gardening |
Product Description
Specifications
Stainless Steel Pump Body Garden PumpMax.suction head:8m
Max.liquid temperature:35
Max.environment temperature:40
Stainless Steel Pump Body Garden Pump
Pump casing: Stainless steel
Impeller: ABS/Brass/Noryl
Diffuser: Noryl/PPO/ABS
Motor Housing: Aluminum
Pump-motor adaptor: Aluminum/Cast iron
Mechanical seal: Stainless steel(graphite to ceramic)
Shaft: 45# steel or stainless steel
Bearing: SKF/NTN/NSK/China
Tank: Stainless steel 20L tank.
| Rated Power | 400W | 550W | 650W | 750W | 810W | 900W | 1100W |
| V&Hz | 230V/50Hz 115V/60Hz | 230V/50Hz 115V/60Hz | 230V/50Hz 115V/60Hz | 230V/50Hz 115V/60Hz | 230V/50Hz 115V/60Hz | 230V/50Hz 115V/60Hz | 230V/50Hz 115V/60Hz |
| Max. Flow | 7500L/H | 10500L/H | 11500L/H | 13500L/H | 14500L/H | 15000L/H | 16000L/H |
| Max. Height | 5M | 7M | 7.5M | 8M | 8.5M | 9.0M | 9.5M |
| Max. Deepth | 5M | 7M | 7M | 8M | 8M | 8M | 8M |
| Max. Grain Size | 35mm | 35mm | 35mm | 35mm | 35mm | 35mm | 35mm |
| Certifications | ROHS/LVD/GS/CE/EMC | ||||||
| Dia. Of Pipe | 1"1.25"1.50" | 1"1.25"1.50" | 1"1.25"1.50" | 1"1.25"1.50" | 1"1.25"1.50" | 1"1.25"1.50" | 1"1.25"1.50" |
| Cable | H05RNF3G 0.75mm2x10 | H07RN-F3G 1.0mm2x10 | H07RN-F3G 1.0mm2x10 | H07RN-F3G 1.0mm2x10 | H07RN-F3G 1.0mm2x10 | H07RN-F3G 1.0mm2x10 | H07RN-F3G 1.0mm2x10 |
