Stainless Steel Garden Submersible Pump

Stainless Steel Garden Submersible Pump thumbnail-1
Stainless Steel Garden Submersible Pump photo-1
US$ 20 - 40 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Huifeng
Model Number:
JSP
Contact Supplier Request Quote Chat Now
Huifeng Motors Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU/NINGBO CNIHA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Huifeng
Model Number JSP
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other
Pressure Low Pressure
Application Submersible

Specifications

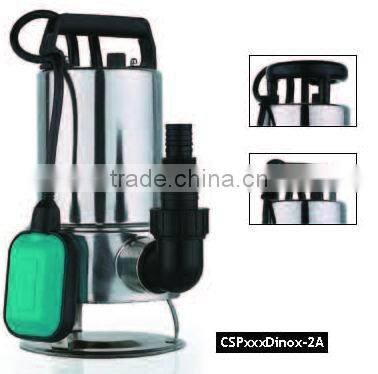

Stainless Steel Garden Submersible Pump
IPX8
1.CE, ROHS Approval
2.Copper wire

Stainless Steel Garden Submersible PumpStainless Steel Garden Submersible PumpStainless Steel Garden Submersible PumpStainless Steel Garden Submersible Pump Stainless Steel Garden Submersible Pump

IPX8
CE, ROHS Approval


Applied to pump clean/dirty water,Such as:

1.  Well / River pumping

2.  Water transfer

3.  Domestic water supply

4.  Garden / Farm Irrigation





Features

1. 100% copper wire, and automatic wiring

2. Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision

3. Demagnetization of stainless steel nuts

4. Anti-rust treatment castings and electrophoresis

5. New testing equipment



Technical data

1. Max submerged depth up to 5m

2. Liquid  temperature up to +35°C
3. Ambient temperature up to +40°C
4. PH value : 4-10





TECHNICAL DATA

Model
 rate Power(w) 250w 350w
max.height 6 7
max.depth  5m  7m
Max.flow(l/min) 5000 6000
max.grain size  5mm  5mm
dia.of pipe 1" 1-1/4"  1-1/2" 1" 1-1/4"  1-1/2"
cable H05RN-F3G0.75MM2 H05RN-F3G0.75MM2





TECHNICAL DATA

Model
 rate Power(w) 400w 500w
max.height 7.5 8.5
max.depth  7m  8m
Max.flow(l/min) 7000 9000
max.grain size  5mm  5mm
dia.of pipe 1" 1-1/4"  1-1/2" 1" 1-1/4"  1-1/2"
cable H05RN-F3G0.75MM2 H05RN-F3G0.75MM2



TECHNICAL DATA

Model
 rate Power(w) 550w 650w
max.height 9 9
max.depth  5m  7m
Max.flow(l/min) 9500 11000
max.grain size  8mm  8mm
dia.of pipe 1" 1-1/4"  1-1/2" 1" 1-1/4"  1-1/2"
cable H05RN-F3G0.75MM2 H05RN-F3G0.75MM2



TECHNICAL DATA

Model
 rate Power(w) 750w 900w
max.height 10 11
max.depth  8m  8m
Max.flow(l/min) 12000 13000
max.grain size  5mm  5mm
dia.of pipe 1" 1-1/4"  1-1/2" 1" 1-1/4"  1-1/2"
cable H05RN-F3G0.75MM2 H05RN-F3G0.75MM2

1.1HP Water Pump with Electronic Pressure Control Switch.






Stainless Steel Garden Submersible Pump
Stainless Steel Garden Submersible Pump
