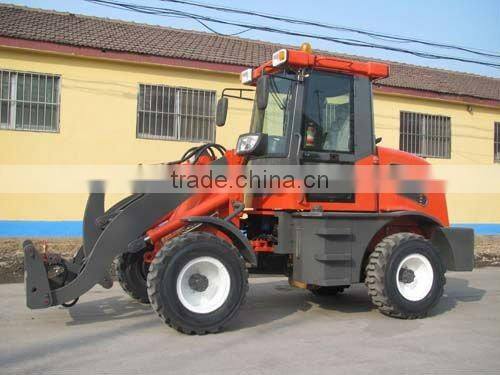

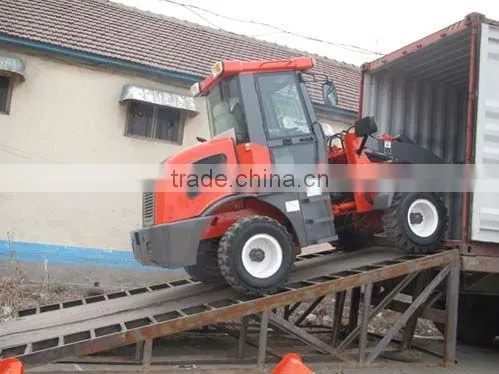

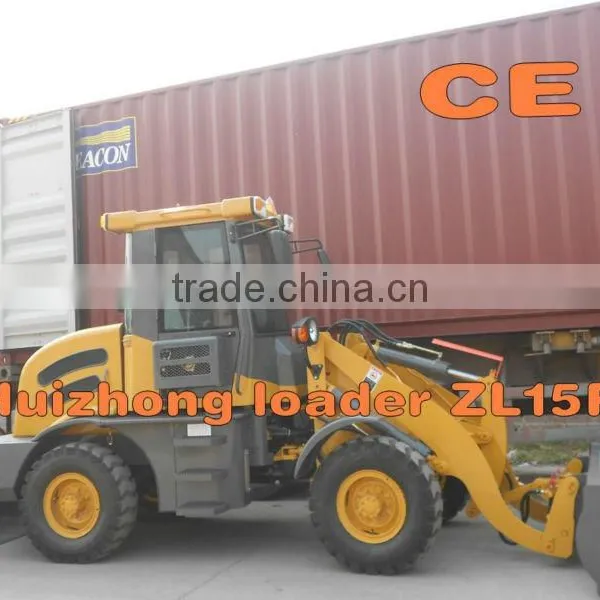

1.5t Mini Wheel Loader ZL15F With EuroIII Engine and CE

Name: 1.5t Mini Wheel Loader ZL15F With EuroIII Engine and CE
Brand: HUIZHONG
SKU: 143315494
Availability: InStock

Qingzhou Huizhong Machinery Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

HUIZHONG

Model Number:

ZL15F

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HUIZHONG

Model Number ZL15F

Place of Origin Shandong, China

Type Mini Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4760X1680X2550MM

Rated Load 1500KG

Warranty 1 year to 1.5 year

Specifications

1.5t mini wheel loader
* ZL15F with EuroIII engine
* can choice different attachments
* good market for Europe
* CE ID

Specification	overall weight(kg)	3600
	L×W×H(mm)	4760×1680×2550
	rated bucket capacity(m³)	0.7
	Rated load(kg)	1500
	Maximum dump height (mm)	2750
	Bucket indicator	Yes
	Max. breakout force(KN)	43
Engine	Model	Xinchai A498BT1(EURO III)/Changchai 4L68
	Type	In-line arrangement, Water cooling, four-stroke
	Rated power(kw)	36.8kw
	Rated speed(r/min)	2200
Transmission system	Model of torque converter	YJ240
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	ZL20B
Hydraulic system	Working pump	CBGj1045,CBGq1018
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	27±1°
	Min turning radius(mm)	3000
Brake system	Brake type	Oil brake(Vacuum booster)
Tyres	Standard tyres	12-16.5
Tyres	Optional wide tyres	14-17.5
