Help CenterHZM Popular ZL15 Mini Loader,mini Tractors With Front End Loader
Related Products
-
ER 15 III Stages Mini Wheel Loader Made in ChinaUS$ 8,000 - 12,000MOQ: 1 Set -
ZL15F Tractor Loader Attachments Log Loader and Pallet Fork LoaderNegotiableMOQ: 1 Set
-
ZL15F Wheel Loader Attachments Log Loader and Pallet Fork LoaderNegotiableMOQ: 1 Set
-
Wheel Loader China High Quality HZM915NegotiableMOQ: 1 Set
-
HZM 1.5ton Zl15 Small Loader With Xinchai490bpg EngineNegotiableMOQ: 1 Set
QINGZHOU HUIZHONG MACHINERY CO.,LTD
Specifications of HZM915 wheel loader
Specification |
overall weight(kg) |
3500 |
L×W×H(mm) |
4760×1680×2550 |
|
rated bucket capacity(m3) |
0.7 |
|
Rated load(kg) |
1500 |
|
Maximum dump height (mm) |
2750 |
|
Bucket indicator |
Yes |
|
Max. breakout force(KN) |
43 |
|
Engine |
Model |
XINCHAI 490(EURO III) |
Type |
In-line arrangement, Water cooling, four-stroke |
|
|
Rated power(kw) |
36.8kw |
|
Rated speed(r/min) |
2200 |
|
Transmission system |
Model of torque converter |
YJ240 |
Type |
single-phase single-stage radial-inward turbine triplex |
|
Gearbox type |
Fixed-spindle power shift |
|
Gear shift |
2 gears ahead,2 gear astern |
|
Hydraulic system |
Distribution of work valve |
ZL20B |
Working pump |
CBGj1045,CBGq1018 |
|
Steering system |
Type |
Articulated hydraulic steering |
Max. turning angle |
27±1° |
|
Min turning radius(mm) |
3000 |
|
Brake system |
Brake type |
Oil brake(Vacuum booster) |
Tyres |
Standard tyres |
12-16.5 |
Optional wide tyres |
20.5/70-16 |
* loader with Xinchai 4 cylinders EURO III and EPA III approved diesel engine;

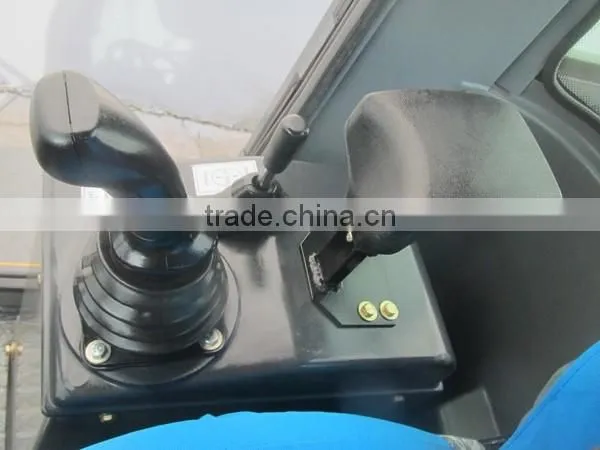

* Joystick,quick hitch

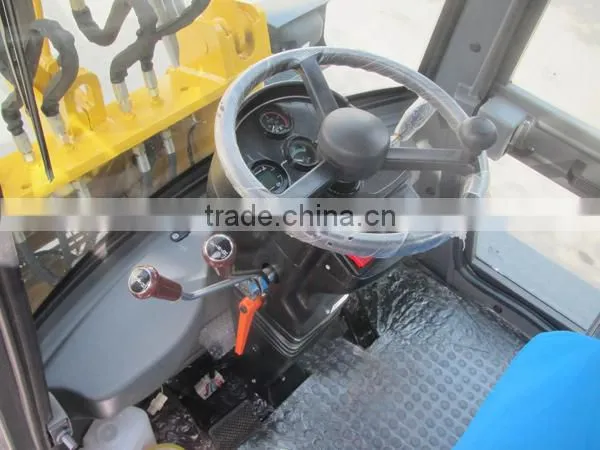

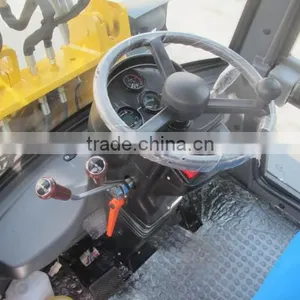

* Adjustable steering wheel
* Heater cab,New luxury seat
optioanal tools:
Pallet fork,snow shovel,multi-function bucket,grass fork,4 in 1 shovel,wide tyres.

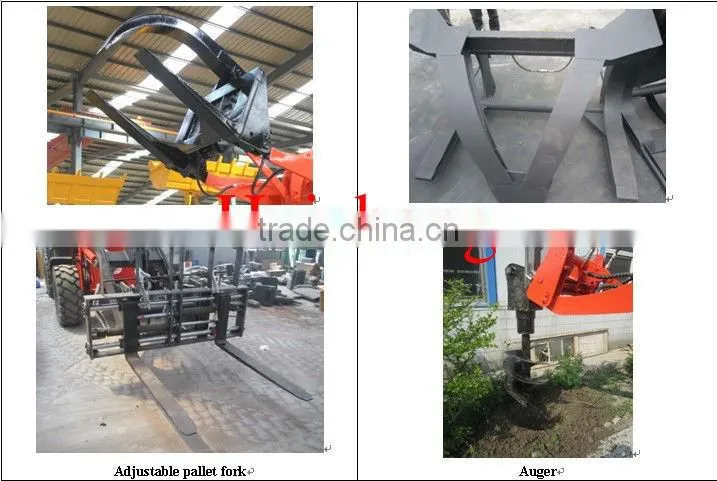

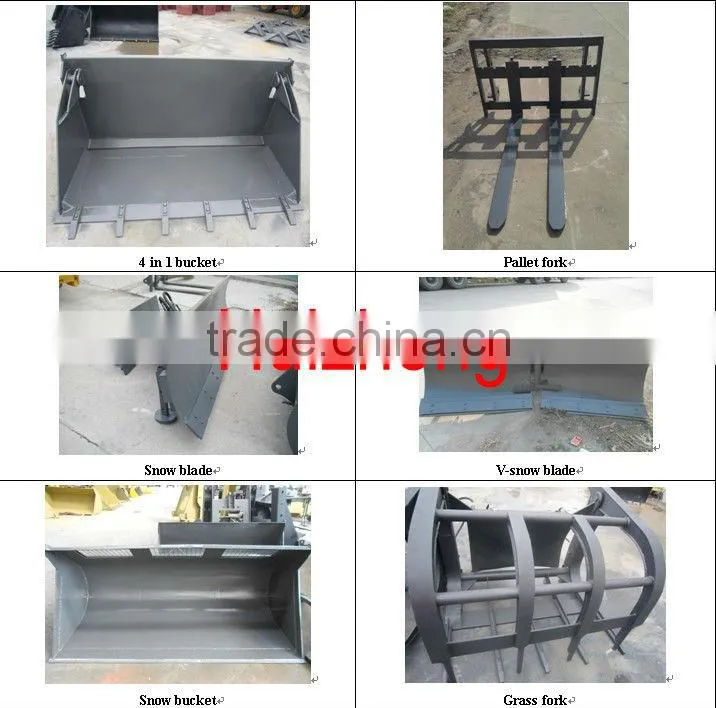

different attachments:

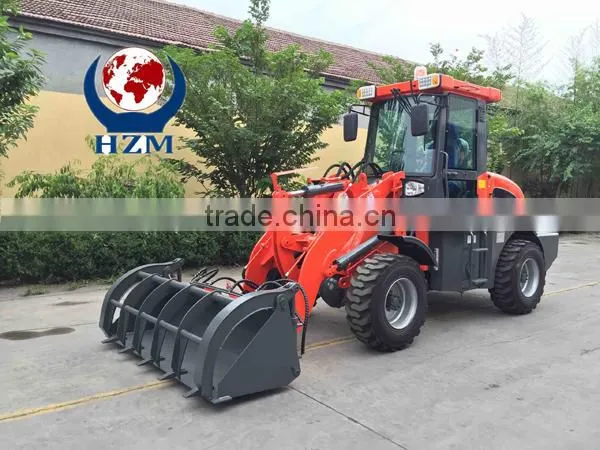

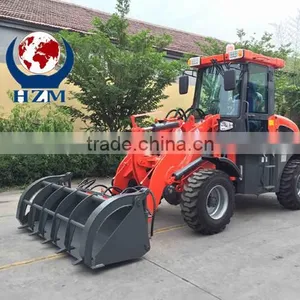

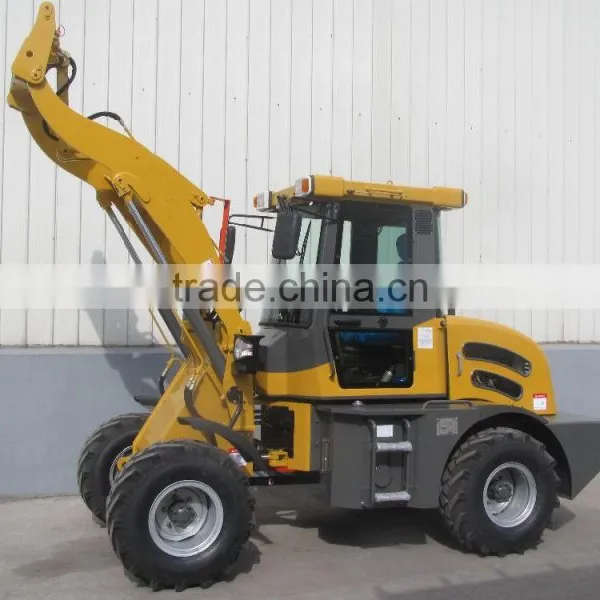

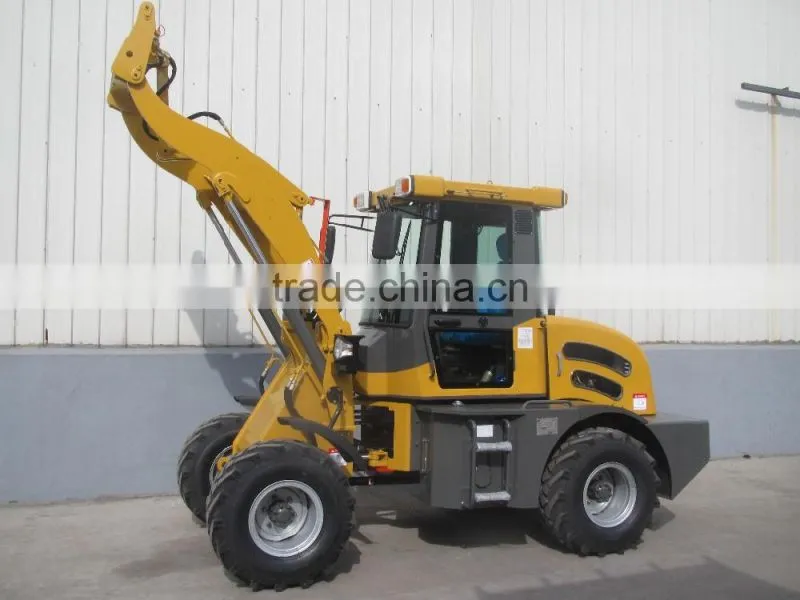

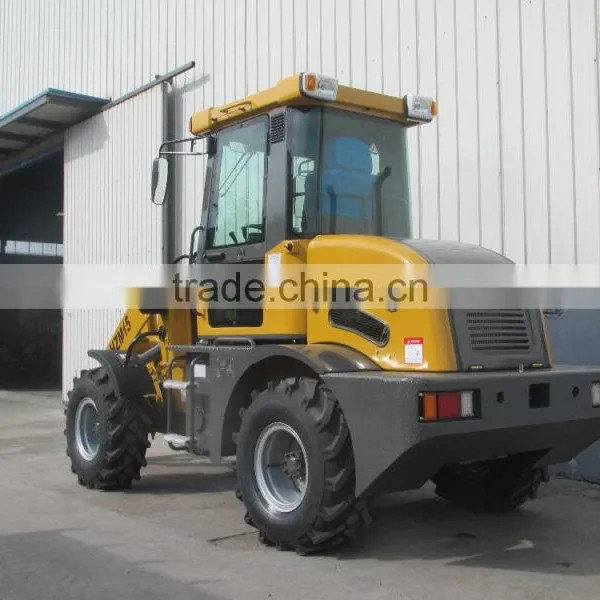

loader picture:

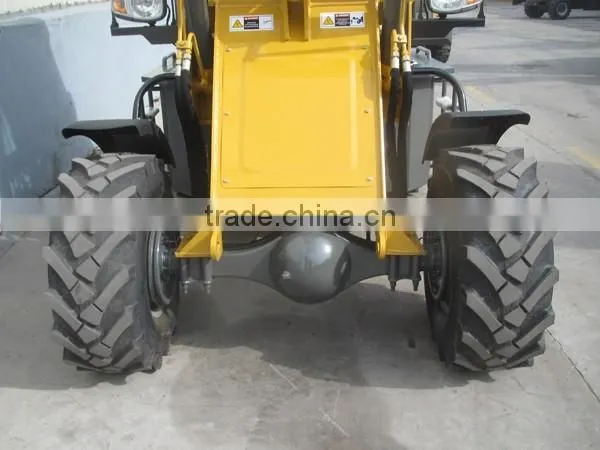

agricultural tire
1 unit in 20ft container
3 units in 40HQ container
We have 1 year warranty
if there is any part broken because of quality problem(except easy-damaged parts), sent the detailed pictures for us, then we will sent new parts for you.
We are specialized in mini wheel loaders as a professional manufacturer and exporter in China, all of our products are CE approved. We have many customers in European and American countries, now you can find our machines works in more than 32 countries.
Looking forward to provide you the most comprehensive field solutions and the most perfect products and services in the most crucial time
if need more information,please contact me.
