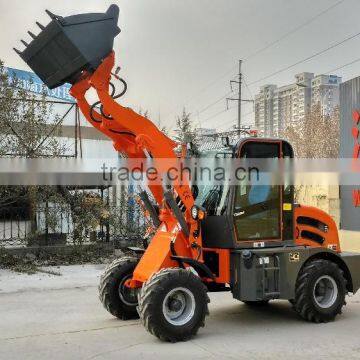

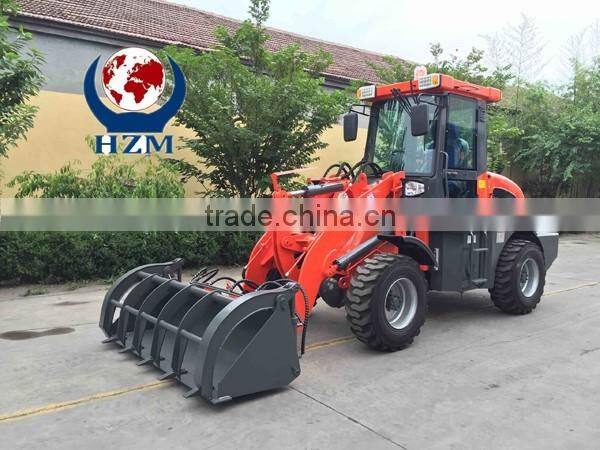

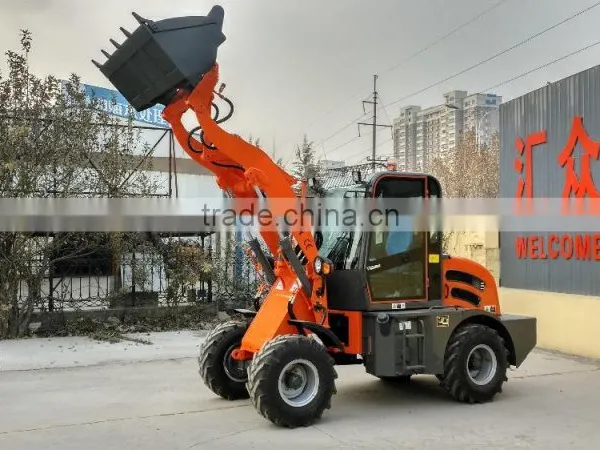

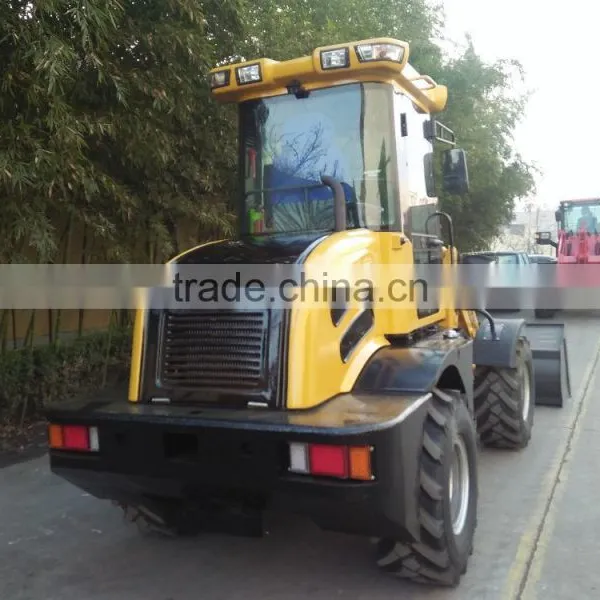

wheel loader manufacturer HZM brand Ftech loader MTL loader
- 1500 Set / Sets per Month
- Qingdao Port
- T/T
Product Details
Condition: | New | Brand Name: | HZM | Model Number: | ZL15F |
Place of Origin: | Shandong, China | Type: | Front Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 4760x1680x2550mm | Rated Load: | 1500kg | Certification: | CE / ROPS / SELO / ISO / BV and so on |
Warranty: | 1 years after received wheel loader, one year | After-sales Service Provided: | Overseas service center available |
Product Description

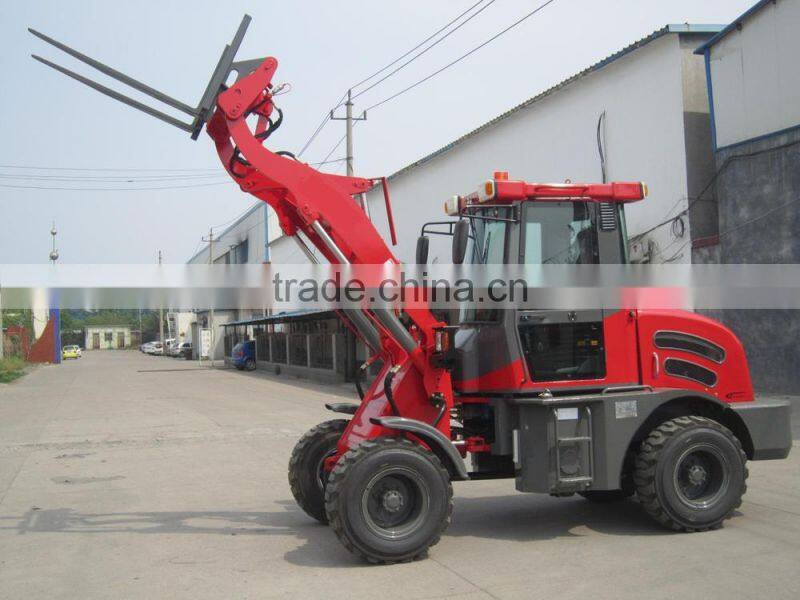

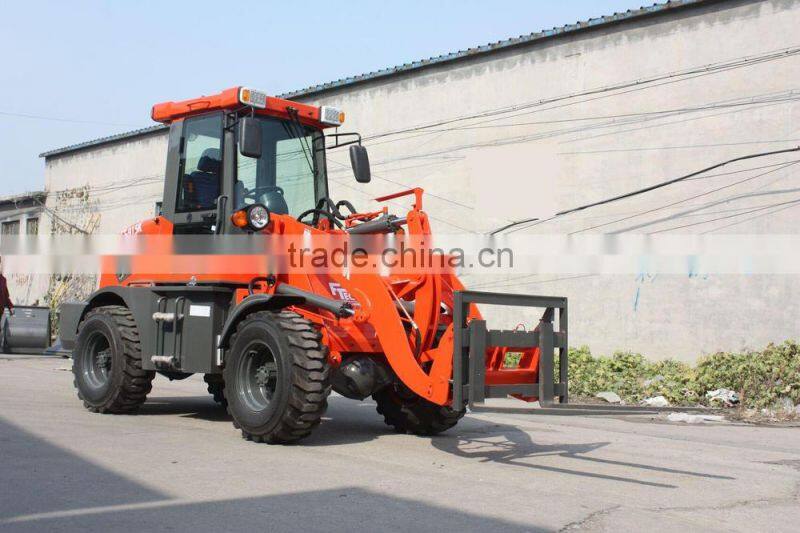

ZL15F wheel loader with log fork and pallet fork,hot sale for Europe market
l Xinchai490 engine, 37kw,Euro3 standard l 3 Control circuit l Floating function l joystick l Rearview camera l Heater in cabin l 220v preheater , LED light |
1pcs/20GP
3pcs/40HC
Specification | overall weight(kg) | 3600 |
L×W×H(mm) | 4760×1680×2550 | |
rated bucket capacity(m3) | 0.7 | |
Rated load(kg) | 1500 | |
Maximum dump height (mm) | 2750 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 43 | |
Engine | Model | Xinchai EUROIII Engine |
Type | In-line arrangement, Water cooling, four-stroke | |
Rated power(kw) |
36.8kw | |
Rated speed(r/min) | 2200 | |
Transmission system | Model of torque converter | YJ240 |
Type | single-phase single-stage radial-inward turbine triplex | |
Gearbox type | Fixed-spindle power shift | |
Gear shift | 2 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | ZL20B |
Working pump | CBGj1045,CBGq1018 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 27±1° | |
Min turning radius(mm) | 3000 | |
Brake system | Brake type | Oil brake(Vacuum booster) |
Tyres | Standard tyres | Agricultural Tires 20.5-16 |
Optional wide tyres | Vacuum Tires 14-17.5 |
Warranty :one year
During the warranty,we will send the parts soon.
We have spare parts center in Germany, you can get the parts easily,and more technology support.

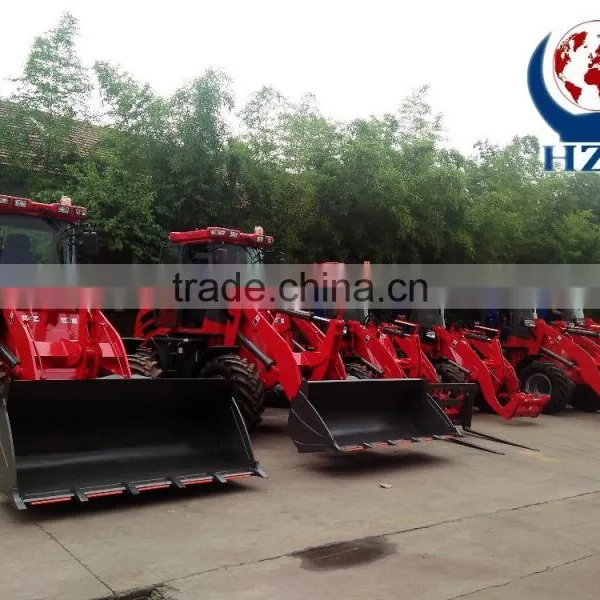

Qingzhou Huizhong Machinery CO.,Ltd is a professional manufacturer for wheel loader.Most wheel loader passed CE,EPA,FOPS/ROPS.With many years’ experience in manufacturing and exporting,we can make sure good quality and reliable after service.Now our wheel loader can be found in more than 30 countries.
