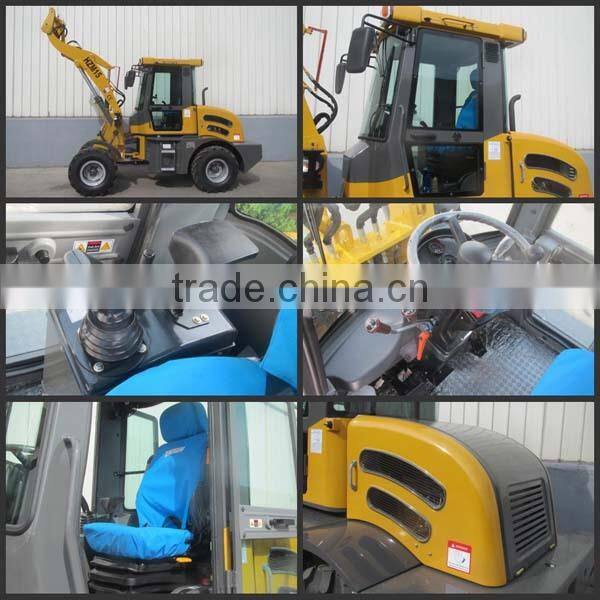

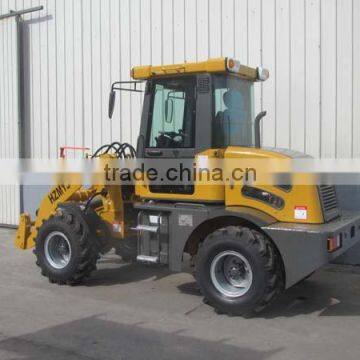

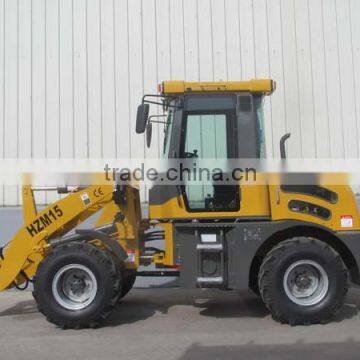

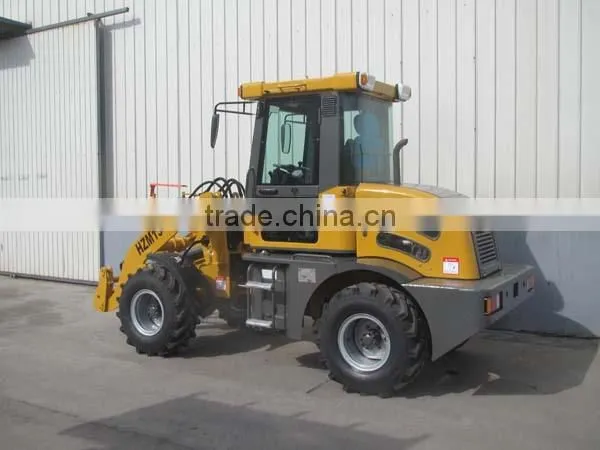

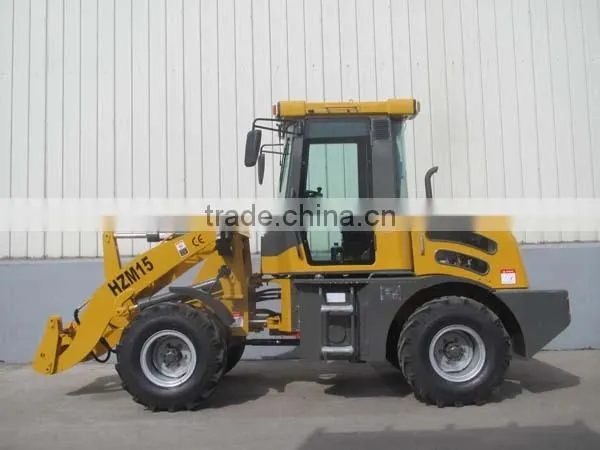

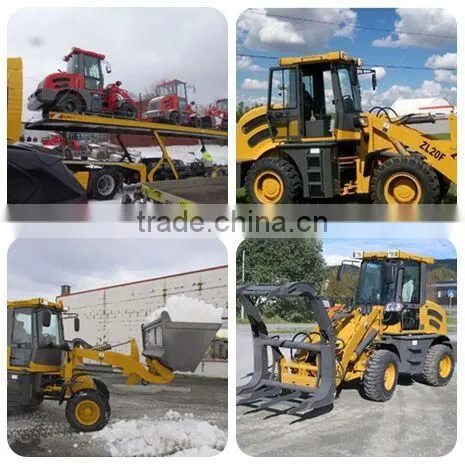

Help CenterER 15 III Stages Mini Wheel Loader Made in China
Related Products
-
ZL15F Tractor Loader Attachments Log Loader and Pallet Fork LoaderNegotiableMOQ: 1 Set -
ZL15F Wheel Loader Attachments Log Loader and Pallet Fork LoaderNegotiableMOQ: 1 Set
-
Wheel Loader China High Quality HZM915NegotiableMOQ: 1 Set
-
HZM 1.5ton Zl15 Small Loader With Xinchai490bpg EngineNegotiableMOQ: 1 Set
-
Articulated Farm Mini Wheel Loader ZL08 for SaleNegotiableMOQ: 1 Set
Specification |
overall weight(kg) |
3600 |
L×W×H(mm) |
4760×1680×2550 |
|
rated bucket capacity(m3) |
0.7 |
|
Rated load(kg) |
1500 |
|
Maximum dump height (mm) |
2750 |
|
Bucket indicator |
Yes |
|
Max. breakout force(KN) |
43 |
|

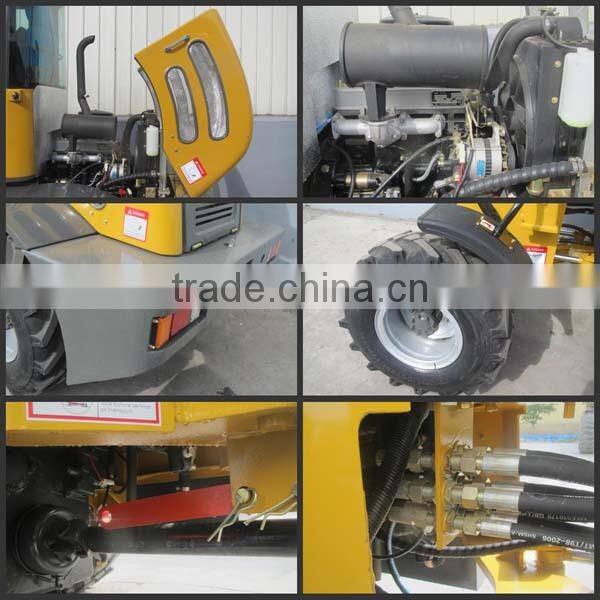

Engine |
Model |
Xichai4DW91-45 / Xinchai490 (EuroIII) Engine |
Type |
In-line arrangement,water cooling, four-stroke |
|
|
Rated power(kw) |
33KW/36.8KW |
|
Rated speed(r/min) |
2200 |
|
Transmission system |
Model of torque converter |
YJ240 |
Type |
single-phase single-stage radial-inward turbine triplex |
|
Gearbox type |
Fixed-spindle power shift |
|
Gear shift |
2 gears ahead,2 gear astern |
|
Hydraulic system |
Distribution of work valve |
ZL20B |
Working pump |
CBGj1045,CBGq1018 |
|
Steering system |
Type |
Articulated hydraulic steering |
Max. turning angle |
27±1° |
|
Min turning radius(mm) |
3000 |
|
Brake system |
Brake type |
Oil brake(Vacuum booster) |
Tyres |
Standard tyres |
1200-16 |
Optional wide tyres |
Snow tires / Agricultural tires |

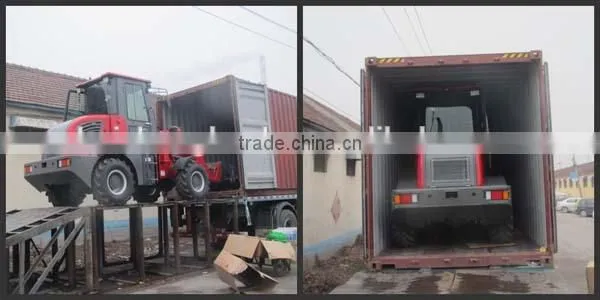

1 Unit 20GP Container Hold 1 Unit HZM915 Wheel Loader
1 Unit 40HC Container Hold 3 Units HZM915 Wheel Loaders
HZM906 / HZM908 / HZM910 / HZM912 / HZM912L / HZM915 / HZM916 / HZM916L / HZM918 /HZM920A / HZM920 /
HZM922 / HZM930 / HZM932 / HZM933 / HZM936 / HZM953 / HZM956 ,these are our main models export to different
Countries .we are assembled by two parts factories , one is made frame / structures / attachments , another is made
Wheel loaders and export ,so we have the whole produce line in China and same city . our wheel loaders with CE /
ISO / BV / FOPS&ROPS / NOISE PAPER and so on , every year ,we will have 400 units about to Europe market / 100Units
To Africa / 100 units to Southeast Asia / 2000 units to Russia / 100 units to Canada and so on market .
Our brand is "HZM" and "JN" in different market ,also there have many customers stick their brands on our wheel loaders .
We build in 2008 year for Export wheel loaders business ,specifically produce different wheel loaders and attachments .

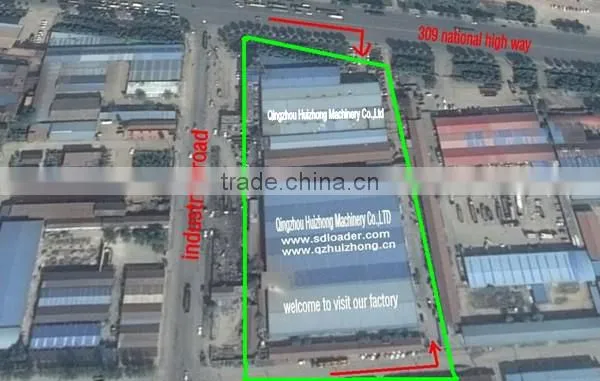

welcome to visit our factory when you free ,our address is : Yuhua Industrial park ,North Ring road , Qingzhou city ,Shandong
Province , China ,262500 .
You could arrvie Jinan national airport ,we will arrange worker to pick you up ,thanks very much .
