ZL15F wheel loader attachments log loader and pallet fork loader

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	HZM
Model Number	ZL15F	Place of Origin	Shandong, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	4760x1680x2550mm	Rated Load	1500kg
Certification	CE / ROPS / SELO / ISO / BV and so on	Warranty	1 years after received wheel loader, one year
After-sales Service Provided	Overseas service center available

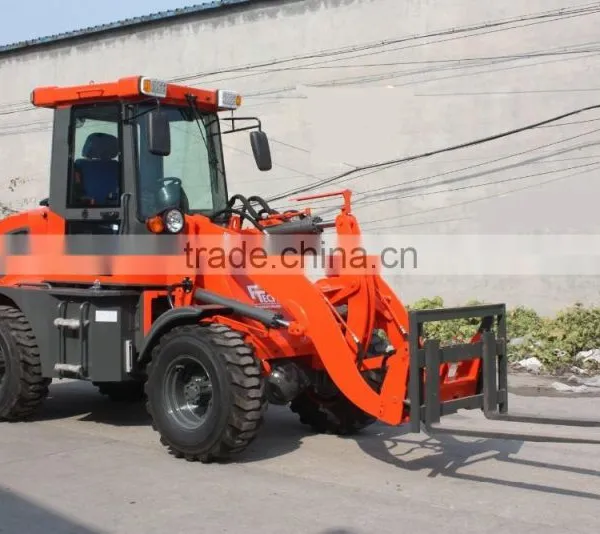

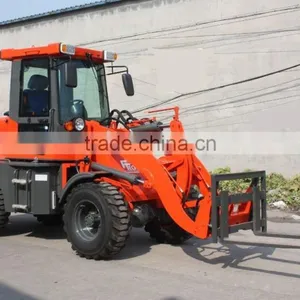

ZL15F wheel loader with log fork and pallet fork,hot sale for Europe market

l Xinchai490 engine, 37kw,Euro3 standard

l 3 Control circuit

l Floating function

l joystick

l Rearview camera

l Heater in cabin

l 220v preheater , LED light

Packaging & Shipping

1pcs/20GP

3pcs/40HC

Specification	overall weight(kg)	3600
	L×W×H(mm)	4760×1680×2550
	rated bucket capacity(m³)	0.7
	Rated load(kg)	1500
	Maximum dump height (mm)	2750
	Bucket indicator	Yes
	Max. breakout force(KN)	43
Engine	Model	Xinchai EUROIII Engine
	Type	In-line arrangement, Water cooling, four-stroke
	Rated power(kw)	36.8kw
	Rated speed(r/min)	2200
Transmission system	Model of torque converter	YJ240
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	ZL20B
Hydraulic system	Working pump	CBGj1045,CBGq1018
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	27±1°
	Min turning radius(mm)	3000
Brake system	Brake type	Oil brake(Vacuum booster)
Tyres	Standard tyres	Agricultural Tires 20.5-16
Tyres	Optional wide tyres	Vacuum Tires 14-17.5

Our Services

Warranty :one year

During the warranty,we will send the parts soon.

We have spare parts center in Germany, you can get the parts easily,and more technology support.

welcome to visit our factory for checking wheel loader
