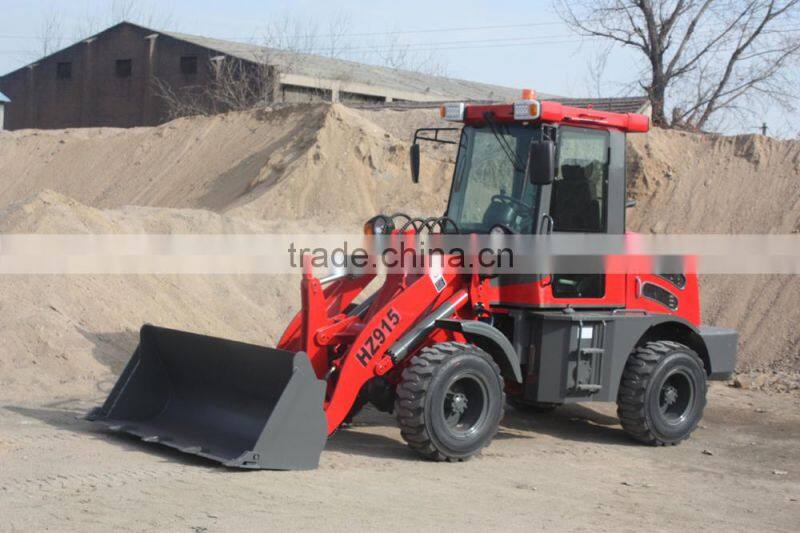

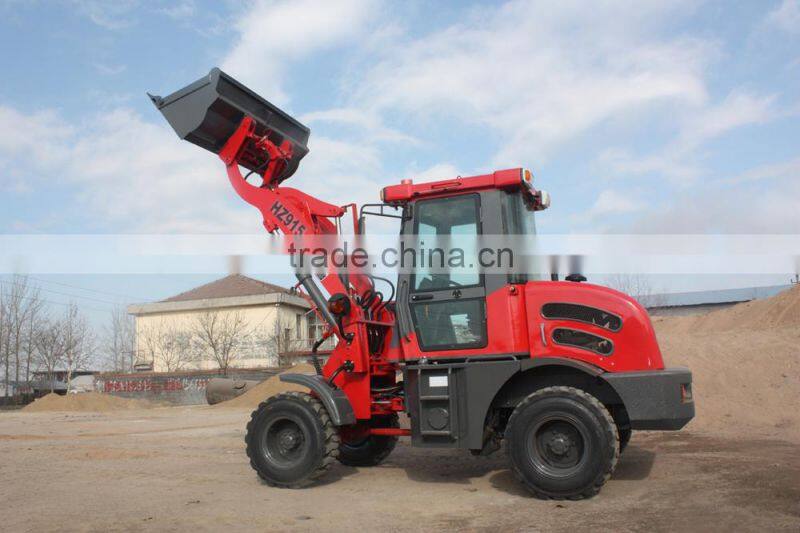

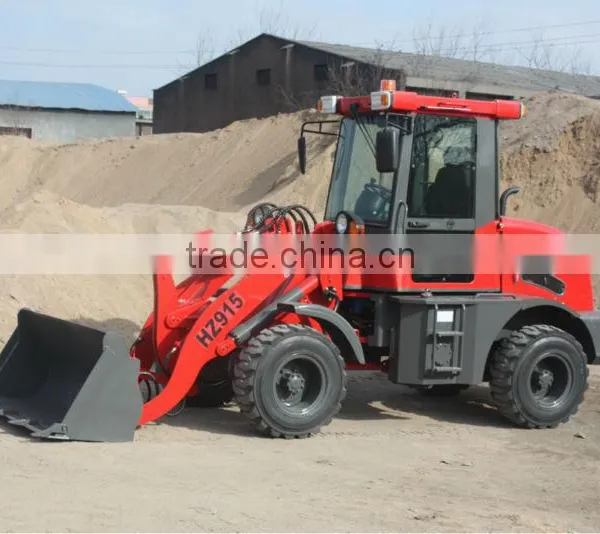

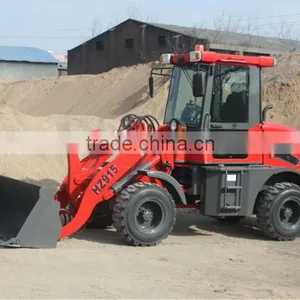

HZM 1.5ton Zl15 Small Loader With Xinchai490bpg Engine

Name: HZM 1.5ton Zl15 Small Loader With Xinchai490bpg Engine
Brand: HUIZHONG
SKU: 143315310
Availability: InStock

Qingzhou Huizhong Machinery Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

HUIZHONG

Model Number:

zl15

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HUIZHONG

Model Number zl15

Place of Origin Shandong, China

Type Mini Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4760X1680X2550

Rated Load 1500kg

Certification CE

Warranty 1year

Specifications

EURO III approved diesel engine
Hydaulic quick change
various optional tools meet all need
new luxury cab

Specification	overall weight(kg)	3500
	L×W×H(mm)	4760×1680×2550
	rated bucket capacity(m³)	0.7
	Rated load(kg)	1500
	Maximum dump height (mm)	2750
	Bucket indicator	Yes
	Max. breakout force(KN)	43
Engine	Model	Xinchai49bpg
	Type	In-line arrangement, Water cooling, four-stroke
	Rated power(kw)	36.8kw
	Rated speed(r/min)	2200
Transmission system	Model of torque converter	YJ240
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	ZL20B
Hydraulic system	Working pump	CBGj1045,CBGq1018
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	27±1°
	Min turning radius(mm)	3000
Brake system	Brake type	Oil brake(Vacuum booster)
Tyres	Standard tyres	12-16.5
Tyres	Optional wide tyres	14-17.5
