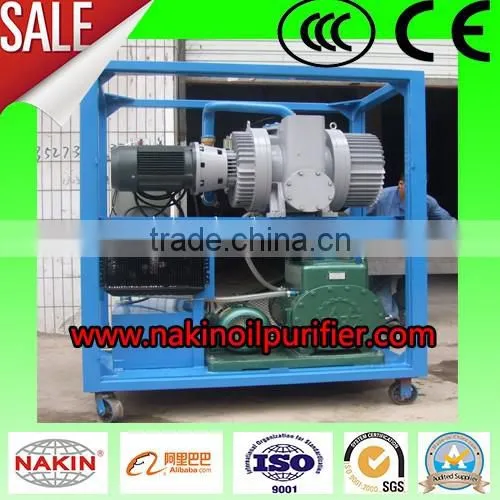

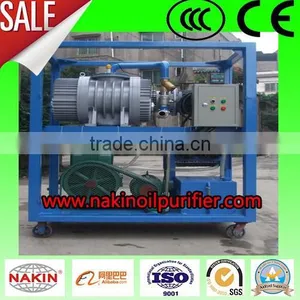

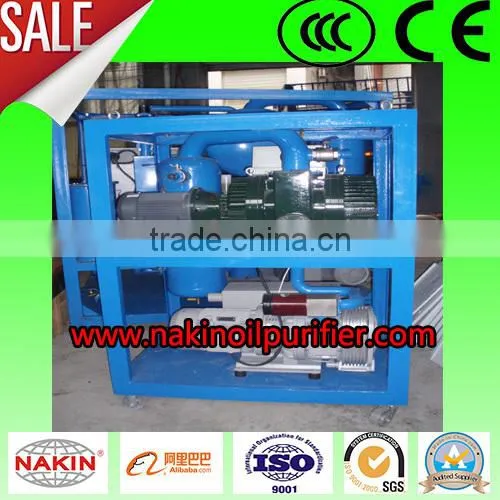

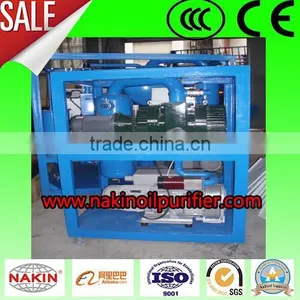

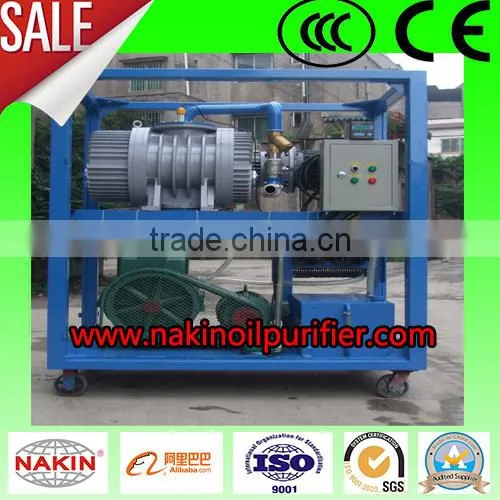

We make and assemble the vacuum pump sets as per the user’s option, the vacuum pump can be Germany LEYBOLD, also the China brand vacuum pump .
Application:
Series NKVW vacuum pumping system is composed of vacuum pump and roots pump. The roots pump
automatically works by the controlling of relays or electrical-contact vacuum gauge.
NKVW equips an electrical control system and a cooling water system. It is quick start, big capacity of vacuum evacuating etc, widely used in vacuum smelting, welding, chemical, pharmaceutical and electric power system, particularly suitable for transformer vacuum operation.
Technical parameters:
Index |
NKVW-30 |
NKVW-70 |
NKVW-150 |
NKVW-300 |
Speed (L/S) |
30 |
70 |
150 |
300 |
Ultimate pressure (Pa) |
7 |
|||
Working vacuum (Pa) |
133 |
|||
Power (kW) |
1.85 |
3.7 |
7 |
9.5 |
Power supply |
380V 3Ph 50Hz (As per user’s option) |
|||
Weight (kg) |
240 |
400 |
580 |
1000 |
Dimension (mm) |
700*500*1200 |
880*600*1300 |
1000*700*1500 |
1350*720*1600 |
