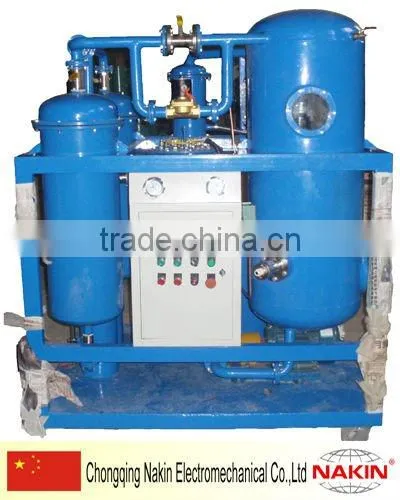

Model TY Vacuum Turbine Oil Filter <on site work with hydroturbine>
TY vacuum turbine oil filter Application:
Series TY vacuum turbine oil filter mainly be used for purifying unqualified turbine oil, especially for serious emulsion turbine oil, it can quickly and efficiently break emulsification, separate water, gas, particles from oil. So that makes sure quality of treated oil to achieve new oil’s standard, ensure whole turbine system work safely. This equipment use a special polymer materials as filter medium combined with vacuum separating technology to break emulsification, dewater, degas, remove acid and particles, make the badly turbid turbine oil becomes clear transparent. Series TY vacuum turbine oil filter is a perfect turbine oil purifier for live line work; also it can purify low viscosity hydraulic oil and lube oil.
Features:
1. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles
2. Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
3. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technology.
4. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
5. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
6. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
7. Work online with stream turbine, hydraulic turbine.
TY vacuum turbine oil filter Technical Parameters:
Index Name |
Unit |
TY-10 |
TY-20 |
TY-30 |
TY-50 |
TY-100 |
TY-150 |
TY-200 |
TY-300 |
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
Working vacuum |
MPa |
-0.06~-0.095 |
||||||||
Working pressure |
MPa |
≤ 0.4 |
||||||||
Temperature range |
°C |
20 ~80 |
||||||||
Demulsifying value |
min |
≤ 15/min(GB/F7035) |
||||||||
Water content |
ppm |
≤ 80 |
||||||||
Gas content |
% |
≤ 0.1 |
||||||||
Cleanness |
|
≤ NAS 6 grade |
||||||||
Power supply |
|
380V 50HZ 3Ph (As per user’s option) |
||||||||
Working noise |
dB(A) |
≤65~80 |
||||||||
Heating power |
Kw |
12 |
15 |
18 |
24 |
45 |
60 |
72 |
84 |
|
Total power |
Kw |
14 |
17 |
20 |
27 |
48 |
66 |
81 |
97 |
|
Inlet(Outlet) |
mm |
Φ25 |
Φ25 |
Φ25 |
Φ32 |
Φ42 |
Φ50 |
Φ50 |
Φ60 |
|
Weight |
kg |
400 |
450 |
500 |
600 |
800 |
1000 |
1100 |
1550 |
|
Dimension |
L |
mm |
1280 |
1350 |
1350 |
1350 |
1500 |
1500 |
1600 |
1650 |
W |
mm |
750 |
900 |
950 |
1000 |
1000 |
1200 |
1350 |
1350 |
|
H |
mm |
1450 |
1450 |
1500 |
1800 |
1800 |
1800 |
1800 |
1850 |
|
NAKIN Company products list as following:
ZY-high effective vacuum transformer oil purifier, oil filtration
ZYD-Double stages Vacuum insulating/transformer oil purifier, oil treatment, oil purification
ZYM-Mobile/trailer type Vacuum transformer oil treatment, oil filtration machine
TY-Vacuum Turbine oil purifier, oil treatment Plant
TJ-Coalescence and separating light/fuel/gasoline oil filter, oil purifier machine
TYA-Vacuum Lubricating oil purifier/hydraulic oil purification
TYK- Phosphate ester fire-resistant oil purifier, oil filtration machine
JZS-Engine oil regeneration system, waste oil recycling
JZC-Waste Oil Distillation System
JYWL-Horizontal-closed type filtration device
TPF-Waste cooking oil recycling machine
BZ-Transformer oil regeneration device, oil purifier
PF-Plate pressure turbine/transformer/engine/diesel/hydraulic oil filter, oil purifier machine
JL-Portable turbine/lube/insulating oil purifier, oil filtering, oil filter
NKVW-Vacuum pump system
IIJ-II-BDV oil tester, insulating oil dielectric strength tester
NKEE-Oil moisture sensor, water content sensor
