Home > Products > Transformer oil regeneration device > ZY Little capacity transformer oil purifier /Oil purification
ZY Little capacity transformer oil purifier /Oil purification
- 30 Unit / Units per Month
- shanghai
- T/T
Product Details
Place of Origin: | Chongqing, China | Brand Name: | NAKIN | Model Number: | ZY10 |
Type: | Oil Purifier |
Product Description

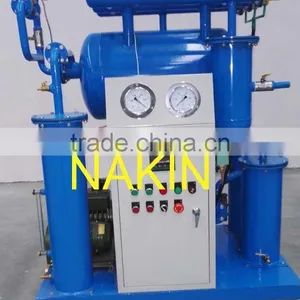

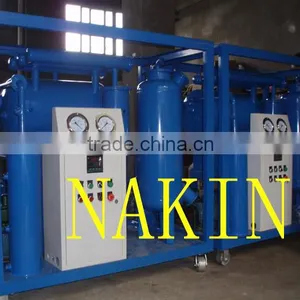

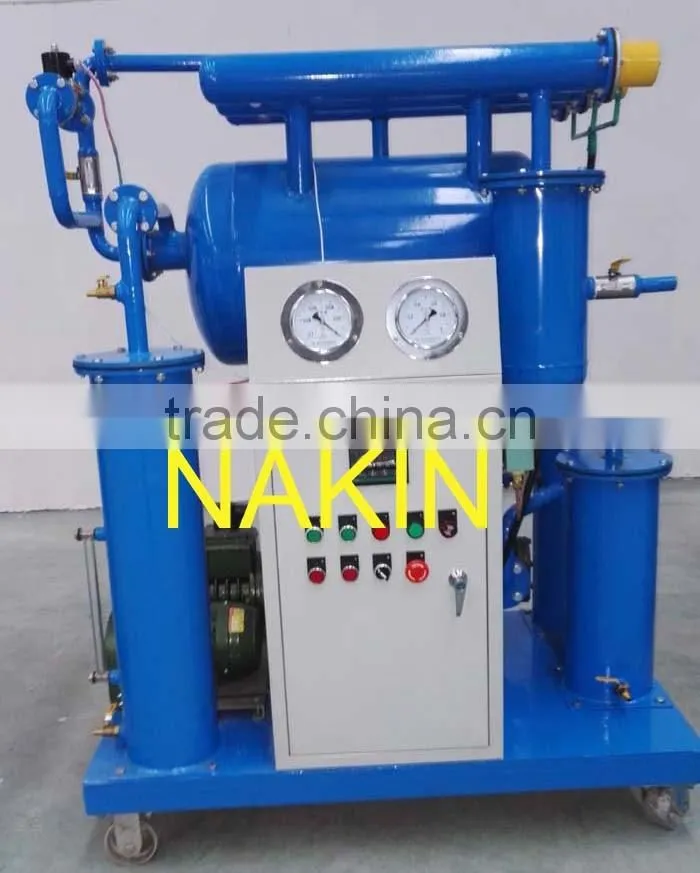

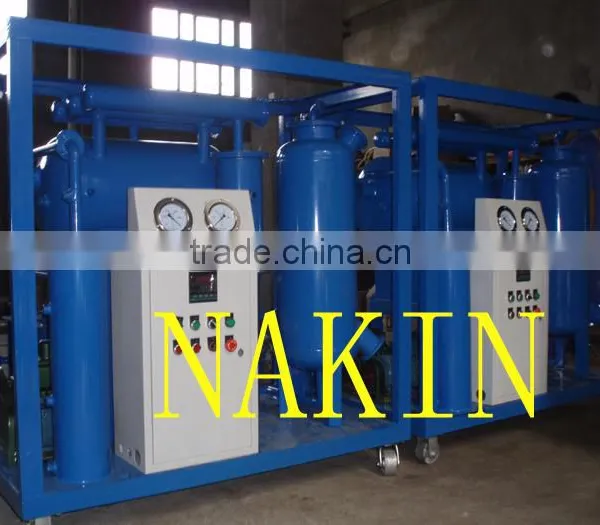

ZY single vacuum tranformer oil purifier machine can improve oil dielectric strength,purifying water ,gas , paricles from transformer oil effectively. And also this oil filtration machine can be used to vacuum oiling and vacuum drying for power equipment. The oil recycling equipment is often used for industrial ,power station, and mining enterprises purifying the unqualified insulating oil ,switch oil etc.
Features:
1.Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
2. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
3. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
4. Double-infrared liquid level sensor, pressure protective system to ensure the machine operation easy and safely.
5. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
6. Working with BZ insulating oil regeneration device to decolor (remove acid, oxide, free carbon) and lower dielectric loss, making the treated oil more limpidity.
Advantages:
ZY is efficient and economical insulating oil purifier. Duplex-Stereo film evaporation technology, unique and advanced dewatering, degassing components, making working efficiency is 3-5 times than traditional oil purifier. Machine adopts interlocked protective system, double-infrared liquid level sensor and pressure protective system to make sure the machine work unattended, operation easy, safe and reliable.
Technical Parameters:
Index name | Unit | ZY-10 | ZY-20 | ZY-30 | ZY-50 | ZY-100 | ZY-150 | ZY-200 | ZY-300 | ||
Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | ||
Particles size | mm | < 3 | |||||||||
Power supplier |
| 380v 50Hz,3Ph (As per user’s option) | |||||||||
Working noise | dB(A) | <=65-85 | |||||||||
Heating power | Kw | 15 | 15 | 15 | 30 | 48 | 60 | 72 | 90 | ||
Total power | Kw | 16.5 | 16.5 | 16.5 | 33.5 | 53 | 65 | 76 | 98 | ||
Working vacuum | MPa | -0.06 - -0.095 | |||||||||
Working pressure | MPa | < 0.4 | |||||||||
Temperature range | C | 20 -80 | |||||||||
Dielectric strength | KV | > 65 | |||||||||
Water Content | ppm | < 5 | |||||||||
Gas content | % | < 0.1 |
Our products list as following:
High effective vacuum transformer oil purifier, oil filtration
Double stages insulating oil purifier,oil treatment,oil purification
Mobile/trailer type transformer oil treatment,oil filtration mnachine
Air dryer for dring electric equipments
Turbine oil purifier,oil treatment
Coalescence and separating oil filter,oil purifier machine
Lubricating oil purifier/hydraulic oil purification
Phosphate ester fire-resistant oil purifier, oil filtration machine
Engine oil regeneration system, waste oil recycling
Transformer oil regeneration device,oil pruifier
Plate pressure oil filter, oil purifier machine
Portable oil piurifier,oil filtering,oil filter
BDV oil tester,insulating oil dielectric strength tester
Oil moisture sensor,water content tester
Our Certificates
Workshop:
Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting experience
Our After-sales:
Engineer is available for local installation.
24 months warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience
Packing and delivery way:
Wooden case Suitable for sea transportation and air transportation
How to Contact Us?
1.Whatsapp/Tel: +86 15215080377
2.Skype:wu.jianglan
3.Wechats:15215080377
4.Telephone: 0086-23-85575926 Fax: 0086-23-85575930
If you want to know more details, please feel free to contact us
