ZYM Industrial Univolt refinery, oil purifier machine
Application
ZYM Industrial Univolt refinery, oil purifier machine is special for user’s requirements,,this machine is mainly used for dealing with unqualified transformer oil, switch oil, mutual inductor oil, it can rapidly remove water, gas, particles from oil, improving insulating oil’s properties. Besides all functions of series ZYD, the best advantage of ZYM is that can move long distance working in field.
Features:
1. Mobile (trailer) type, completely closed structure, waterproof, dustproof, move easy.
2. Installation of car types, Bridge shock absorber, braking system and steel welding of entire trailer guarantee 60km/h speed.
3. Dealing with unqualified insulating oils, rapidly remove water, gas, particles from oil
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Advantages:
Mobile (trailer) type, completely closed structure, waterproof, dustproof, it can move long distance working in field.
Technical Parameters:
Index name |
Unit |
ZYM-30 |
ZYM-50 |
ZYM-65 |
ZYM-100 |
ZYM-150 |
||
Flow rate |
L/H |
1800 |
3000 |
4000 |
6000 |
9000 |
||
Working noise |
dB(A) |
<=-85 |
||||||
Heating power |
Kw |
30 |
30 |
78 |
95 |
110 |
||
Total power |
Kw |
35.5 |
37.5 |
87 |
104 |
121 |
||
Working vacuum |
MPa |
-0.08--0.099 |
||||||
Working pressure |
MPa |
<0.4 |
||||||
Temperature range |
C |
20 -80 |
||||||
Dielectric strength |
KV |
> 70 |
||||||
Water content |
ppm |
< 3 |
||||||
Gas content |
% |
< 0.1 |
||||||
Particles size |
u |
<1 |
||||||
Power supply |
|
380V 50HZ 3Ph (As per user’s option) |
||||||

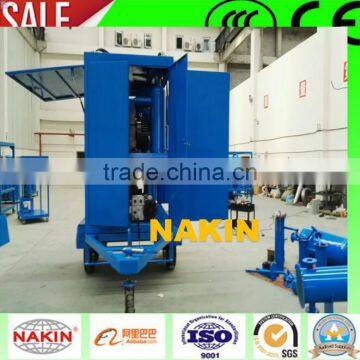

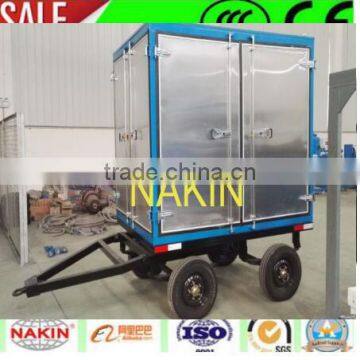

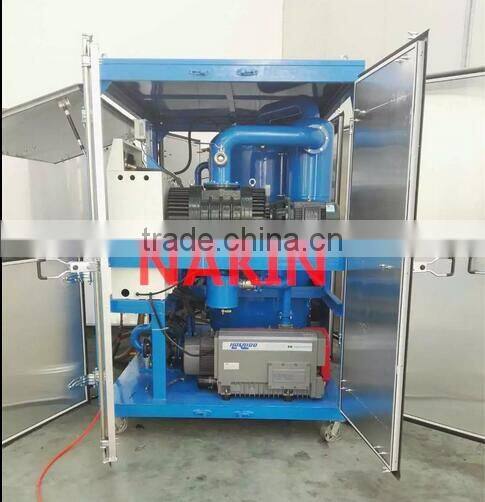

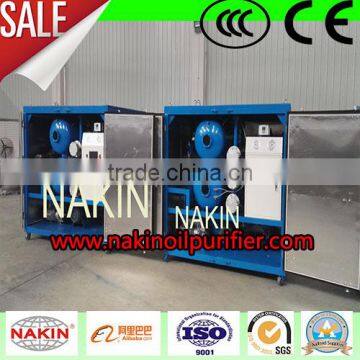

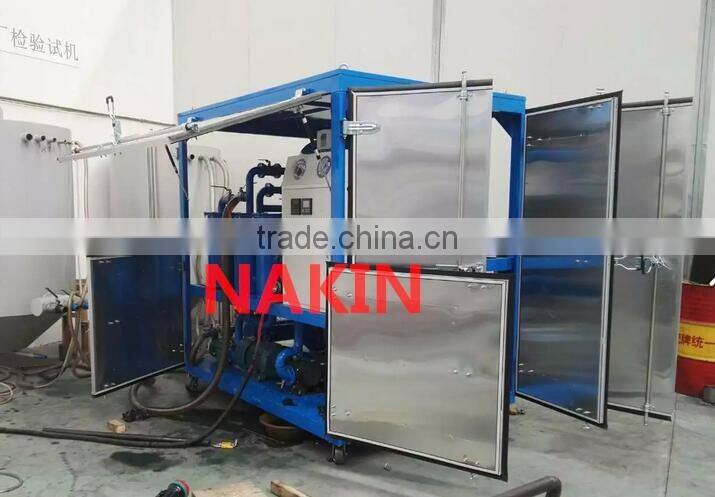

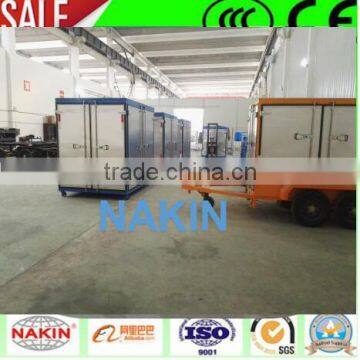

Machine photos show

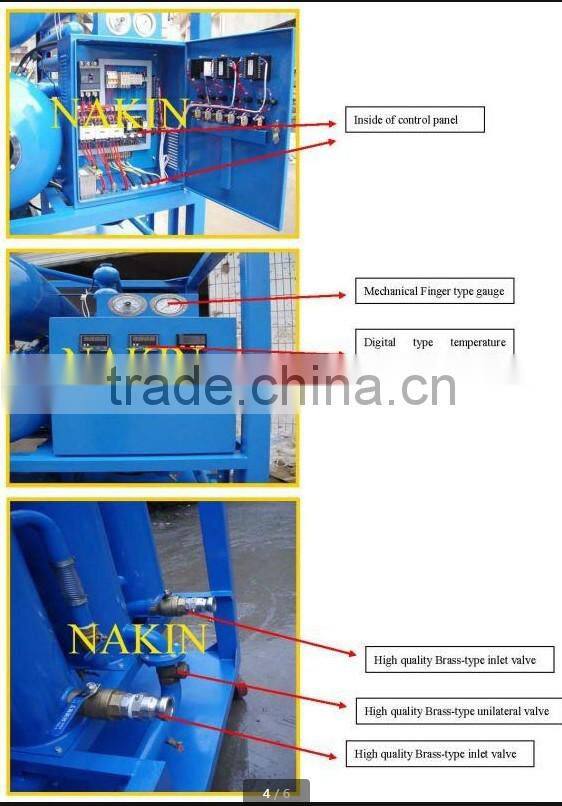

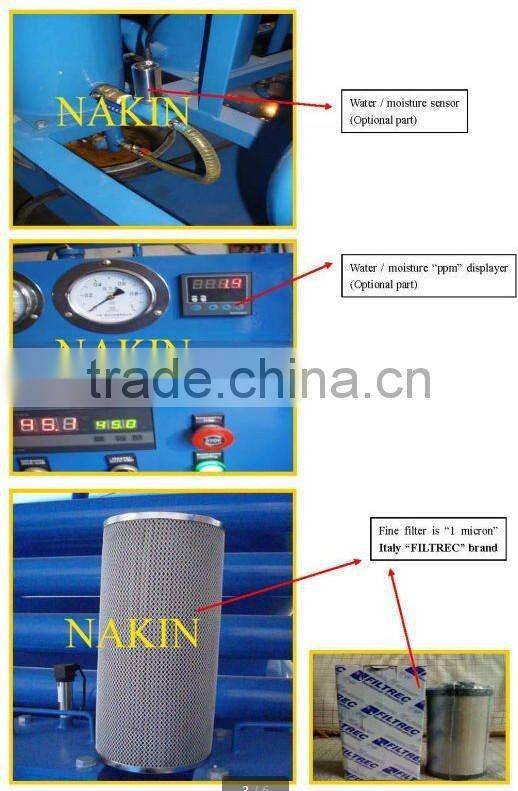

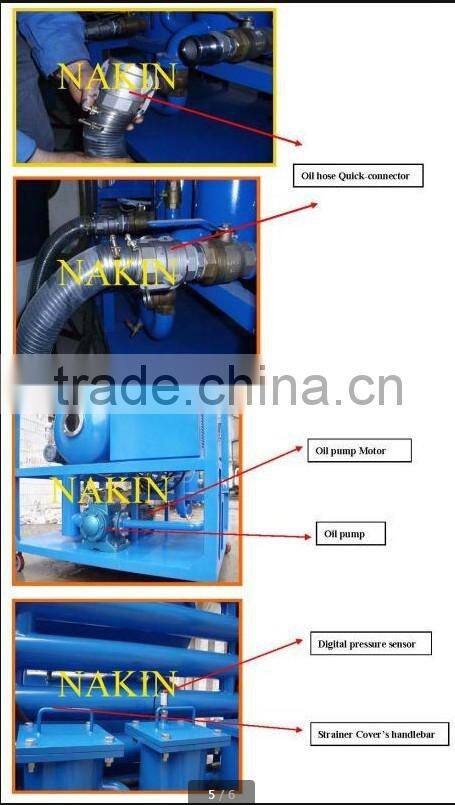

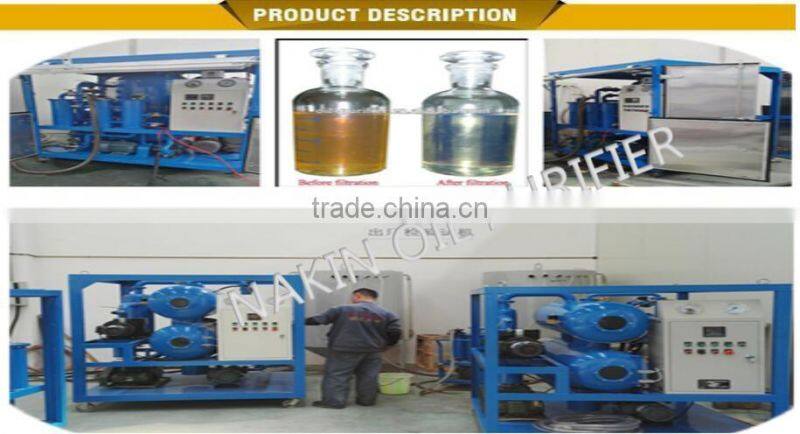

Oil Purifier Parts
Our products list as following:
High effective vacuum transformer oil purifier, oil filtration
Double stages insulating oil purifier,oil treatment,oil purification
Mobile/trailer type transformer oil treatment,oil filtration mnachine
Air dryer for dring electric equipments
Turbine oil purifier,oil treatment
Coalescence and separating oil filter,oil purifier machine
Lubricating oil purifier/hydraulic oil purification
Phosphate ester fire-resistant oil purifier, oil filtration machine
Engine oil regeneration system, waste oil recycling
Transformer oil regeneration device,oil pruifier
Plate pressure oil filter, oil purifier machine
Portable oil piurifier,oil filtering,oil filter
BDV oil tester,insulating oil dielectric strength tester
Oil moisture sensor,water content tester
Our Certificates

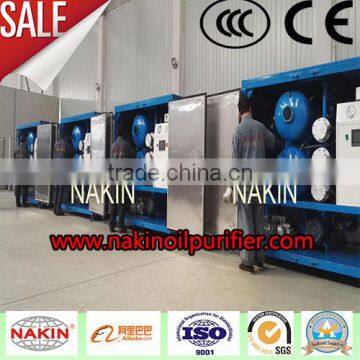

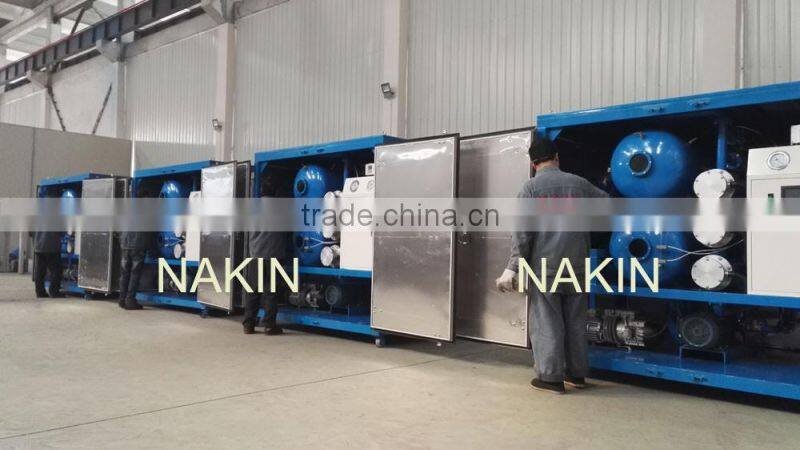

Workshop:
Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting experience
Our After-sales:
Engineer is available for local installation.
24 months warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience
Packing and delivery way:
Wooden case Suitable for sea transportation and air transportation
