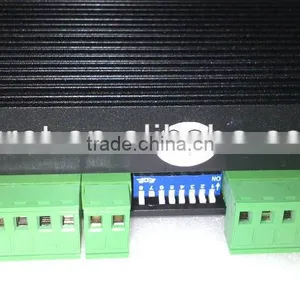

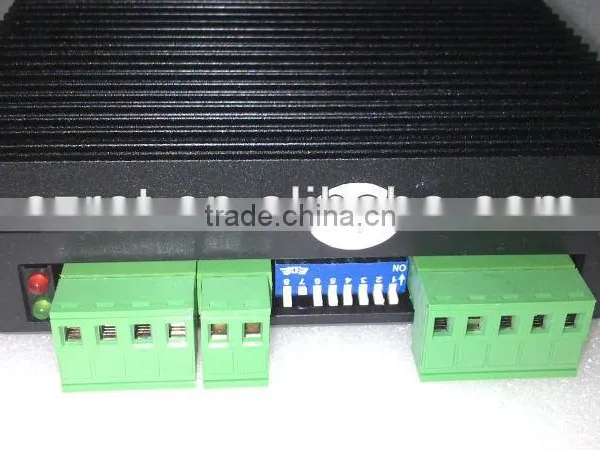

Laser leadshine step Motor driver M420 suit for mtor 57hs09Ultra low noise
High ratio of performance to price
high quality

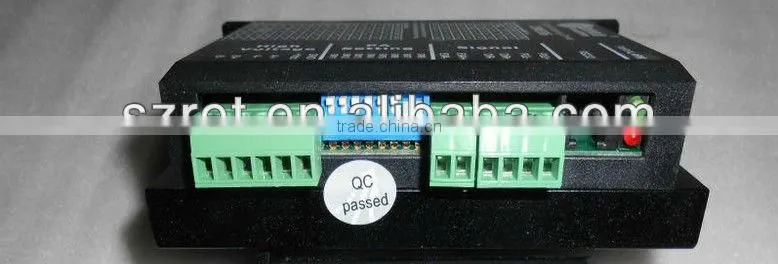

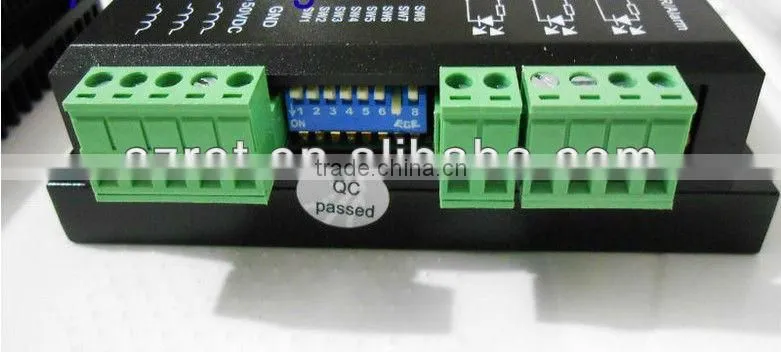

< Laser leadshine step Motor driver M420 suit for mtor 57hs09 >
driver 3ND583
Electrical Specifications
instructions |
unit |
min |
Typ |
max |
Output Current |
A |
2.1 |
- |
8.3 |
Input supply voltage |
VDC |
18 |
36 |
50 |
Control signal input current |
mA |
7 |
- |
16 |
Step pulse frequency |
KHz |
0 |
- |
400 |
Pulse low time |
μs |
1.2 |
|
|
Insulation resistance |
MΩ |
500 |
|
|
Operating current setting
Output Current - Peak |
Output rms current |
SW1 |
SW2 |
SW3 |
SW4 |
2.1 A |
1.5A |
off |
off |
off |
off |
2.5 A |
1.8A |
on |
off |
off |
off |
2.9 A |
2.1A |
off |
on |
off |
off |
3.2 A |
2.3A |
on |
on |
off |
off |
3.6 A |
2.6A |
off |
off |
on |
off |
4.0 A |
2.9A |
on |
off |
on |
off |
4.5 A |
3.2A |
off |
on |
on |
off |
4.9 A |
3.5A |
on |
on |
on |
off |
5.3 A |
3.8A |
off |
off |
off |
on |
5.7 A |
4.1A |
on |
off |
off |
on |
6.2 A |
4.4A |
off |
on |
off |
on |
6.4 A |
4.6A |
on |
on |
off |
on |
6.9 A |
4.9A |
off |
off |
on |
on |
7.3 A |
5.2A |
on |
off |
on |
on |
7.7 A |
5.5A |
off |
on |
on |
on |
8.3 A |
5.9A |
on |
on |
on |
on |
Micro-step breakdown of set
Number steps/turn |
SW6 |
SW7 |
SW8 |
200 |
on |
on |
on |
400 |
off |
on |
on |
500 |
on |
off |
on |
1000 |
off |
off |
on |
2000 |
on |
on |
off |
4000 |
off |
on |
off |
5000 |
on |
off |
off |
10000 |
off |
off |
off |
Laser engraving & cutting machine spare parts
1.laser tube
2.RECI laser tube :RECI W2.W4,W6,W8.
3.laser mirror and focus lens : made in China and imported from UAS.
4.Laser common and RECI power supply:DY10,DY13,DY20.
5.Any kind of laser engraving and cutting parts that you need.
