Help CenterChinese Brands Botten AC Drive A900plus Series Frequency Converter 220V/380V Applicate in Plastic Production Machine Industrial
Product Spotlights
2. Applicate different industrial production machine-like plastic, soap machine production, mixer.
3. Electrial motor running energy and bill saving.
4. Production machine accurate control and protection maintenance.
Related Products
-
Botten Variable Frequency Drive in 0.75 to 400kw Power 380V for Water Pump and Ventilation FansUS$ 60MOQ: 1 Piece -
A910 Frequency Converter Botten Brands 0.75kw to 5.5kw for 220V Single Phase 380V for Compressor Motor ControlUS$ 47MOQ: 1 Unit
-
HXWEI-A100H Series Mini VFD in 0.4KW to 5.5kw Power Easy Operation for Fan Water Pump Conveying MachineryUS$ 38MOQ: 1 Piece
-
HXWEI VFD Industrial Electrical Control Cabinet for Water Supply Tunnel Fan Agricultural Irrigation ApplicationUS$ 500MOQ: 1 Set
-
Botten DS200 Electro-hydraulic Servo Drive 11KW to 132KW for Injection Machine Metal Baler Hydraulic Press IndustrialUS$ 285MOQ: 1 Pack
Chinese brands Botten AC Drive A900plus series frequency converter 220V/380V applicate in Plastic production machine industrial
Botten A900plus is a high‑performance Chinese‑brand vector AC drive/VFD/VSD/frequency converter, available in 220V single‑phase and 380V three‑phase voltage grades.It supports SVC sensor‑less vector control and V/F control, delivering strong low‑speed torque, stable speed regulation and reliable overload capacity, perfectly matching plastic production machinery such as injection molding machines, extruders and plastic granulators,soap machine production, mixer.

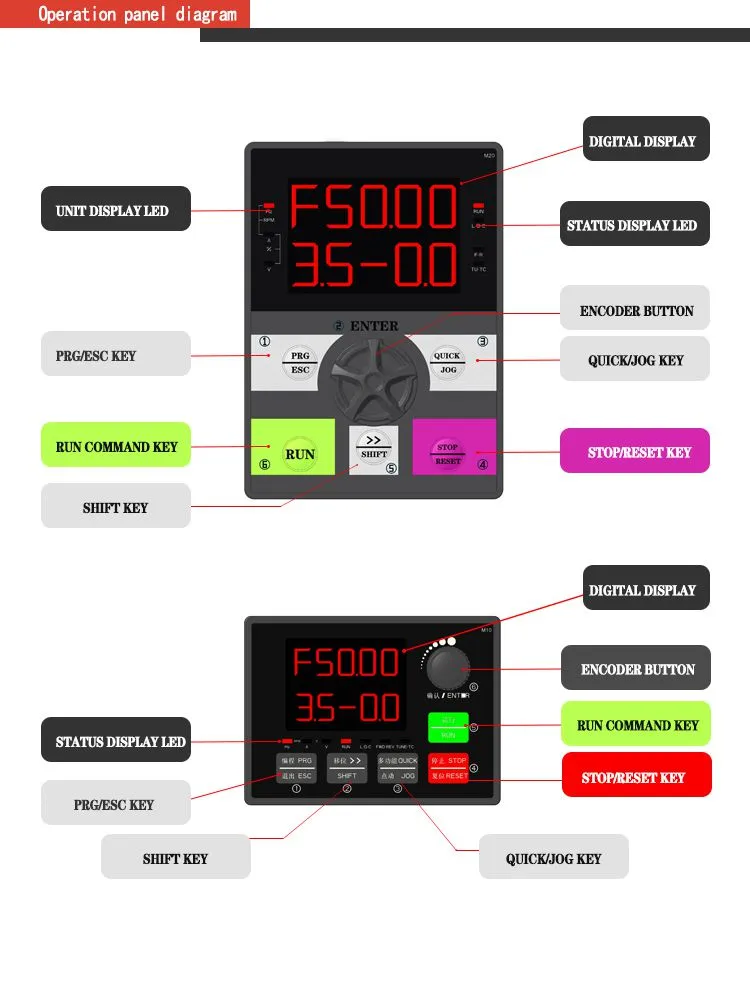

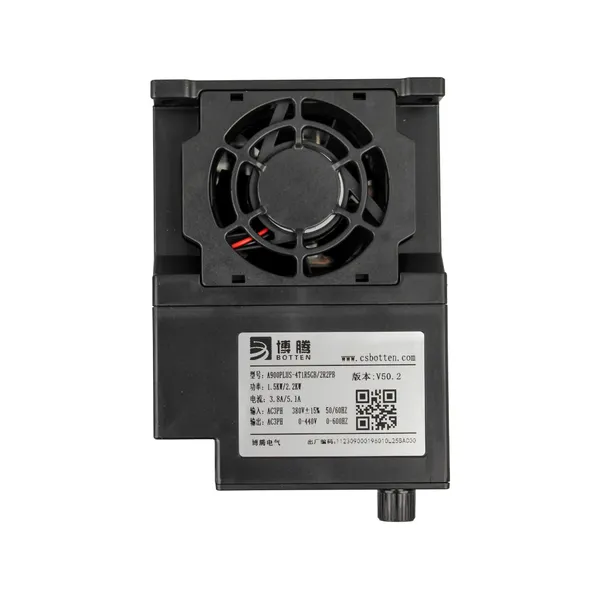

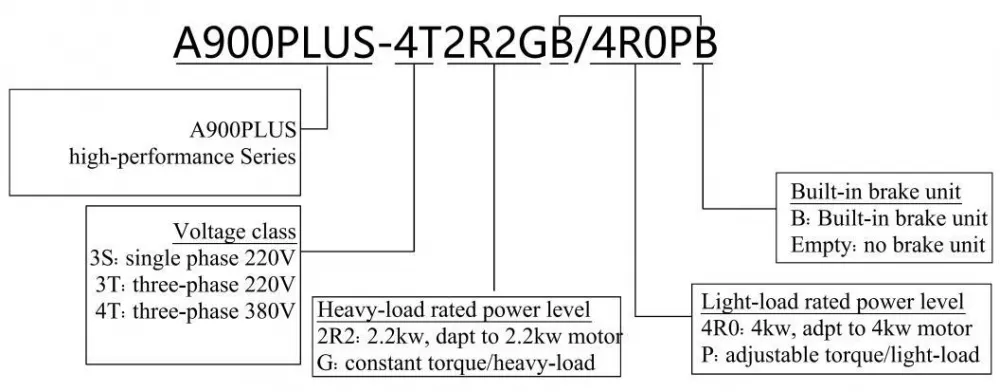

Botten A900Plus VFD/VSD/AC Drive/Frequency Converter Control Design and Nameplate

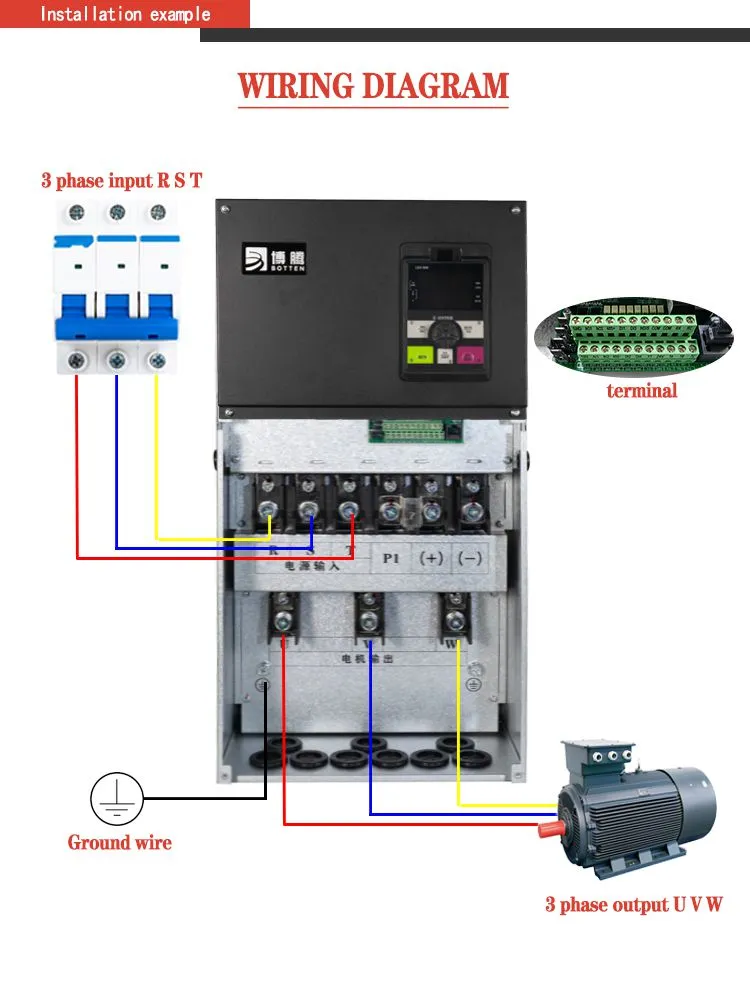

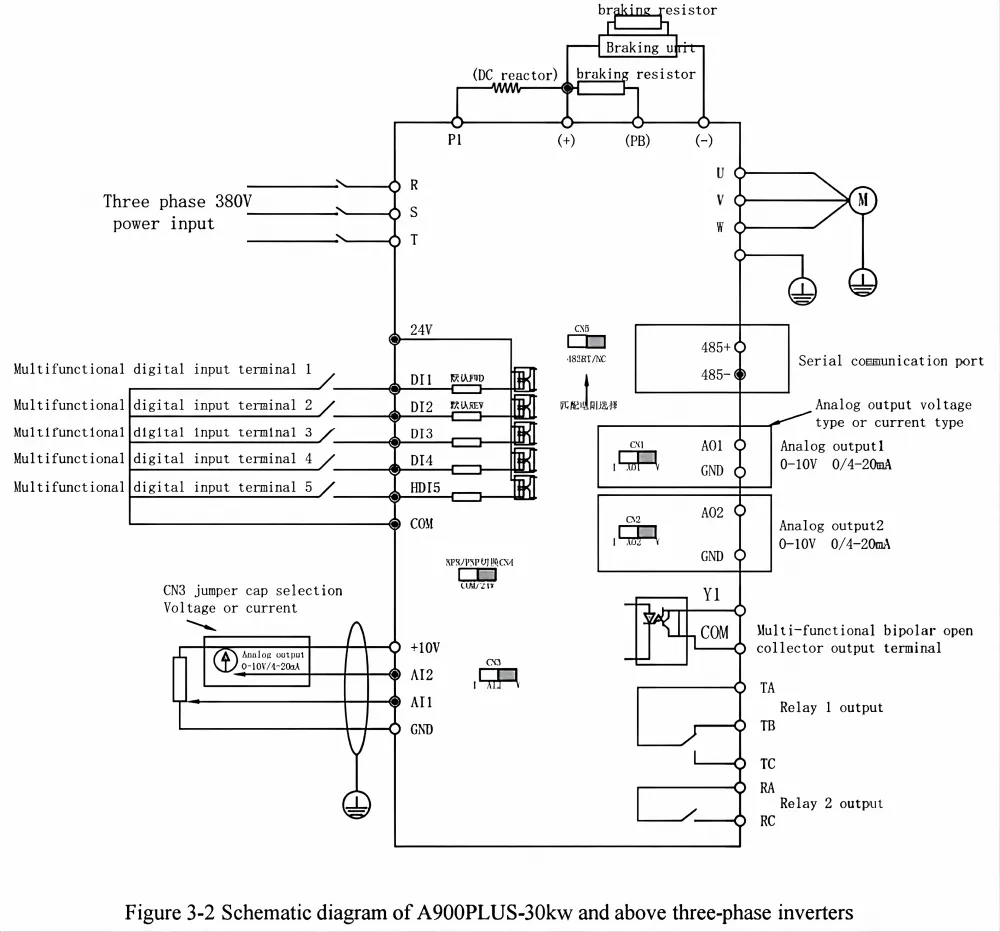

Botten A900Plus VFD/VSD/AC Drive/Frequency Converter Wire and Connection

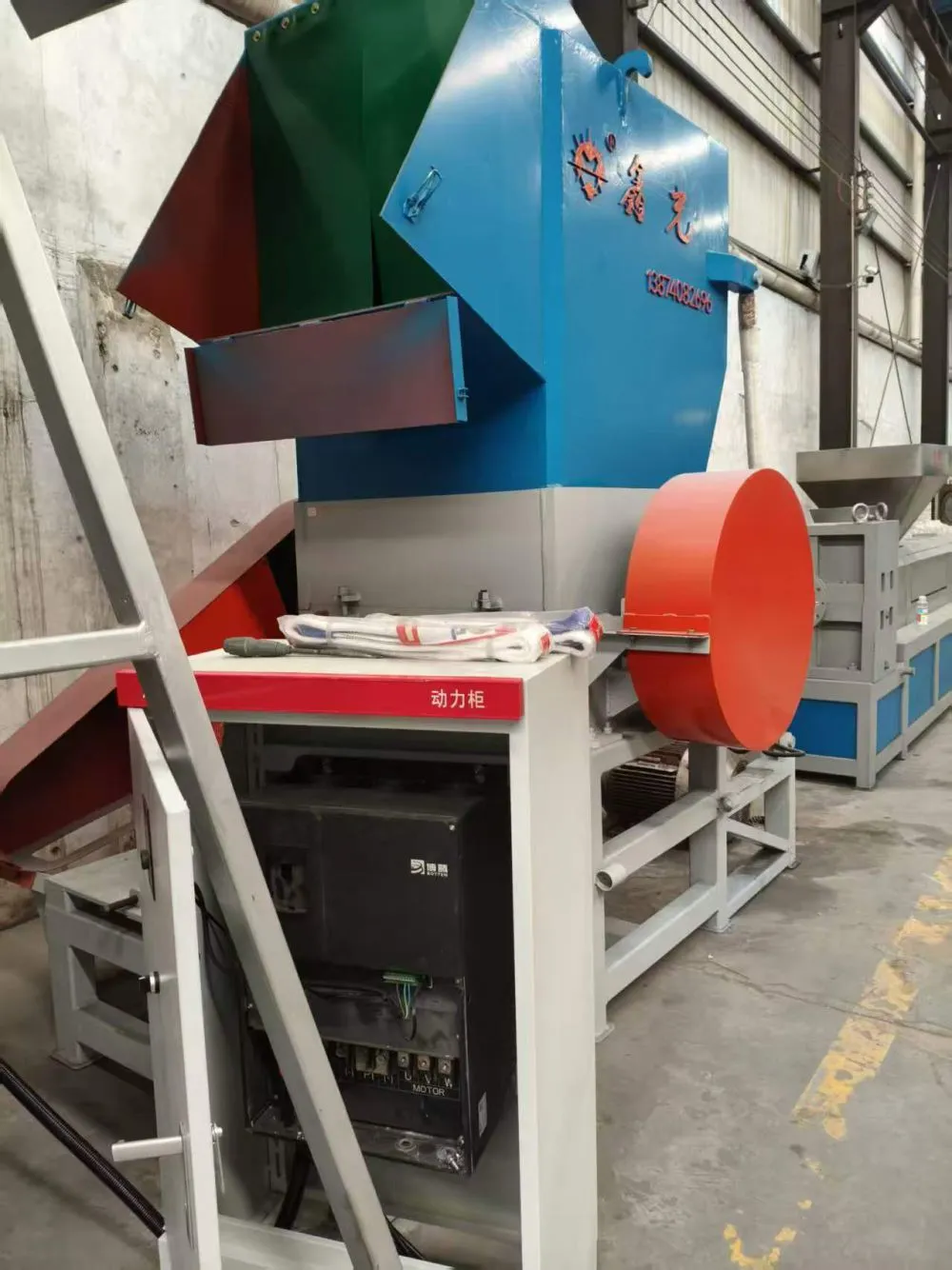

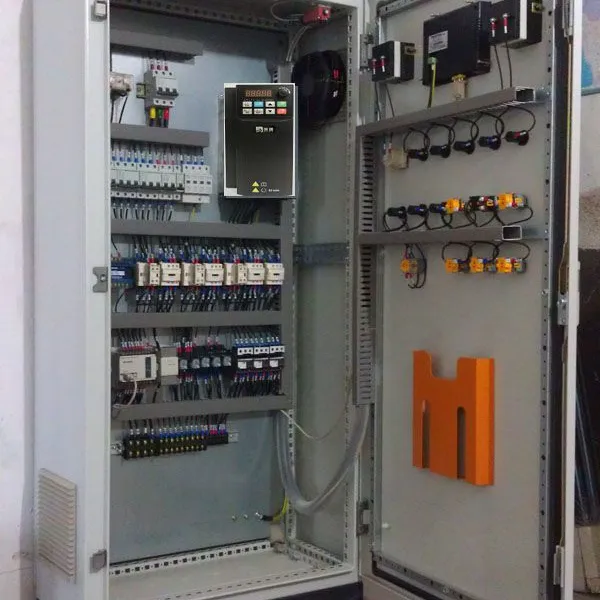

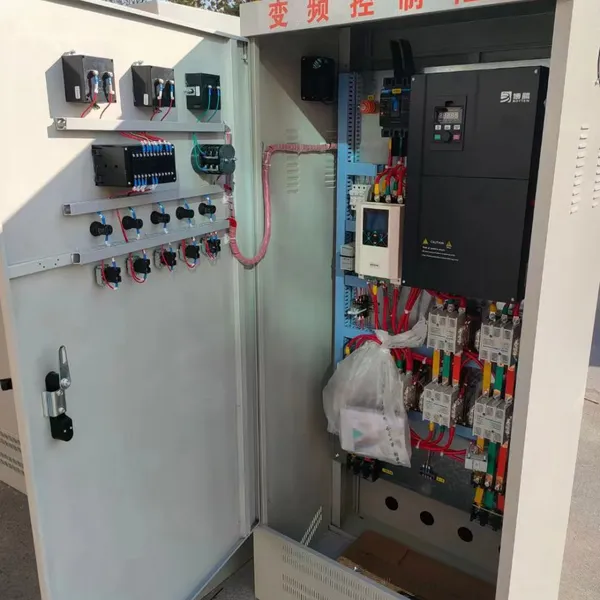

Botten A900Plus VFD/VSD/AC Drive/Frequency Converter Application for Motor Connection

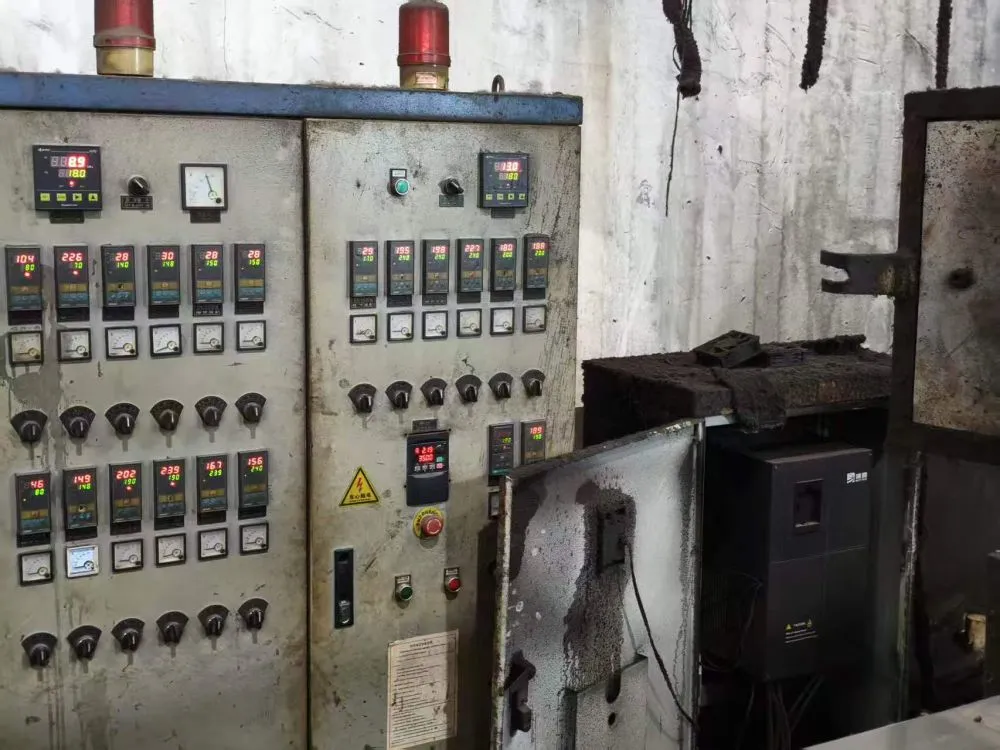

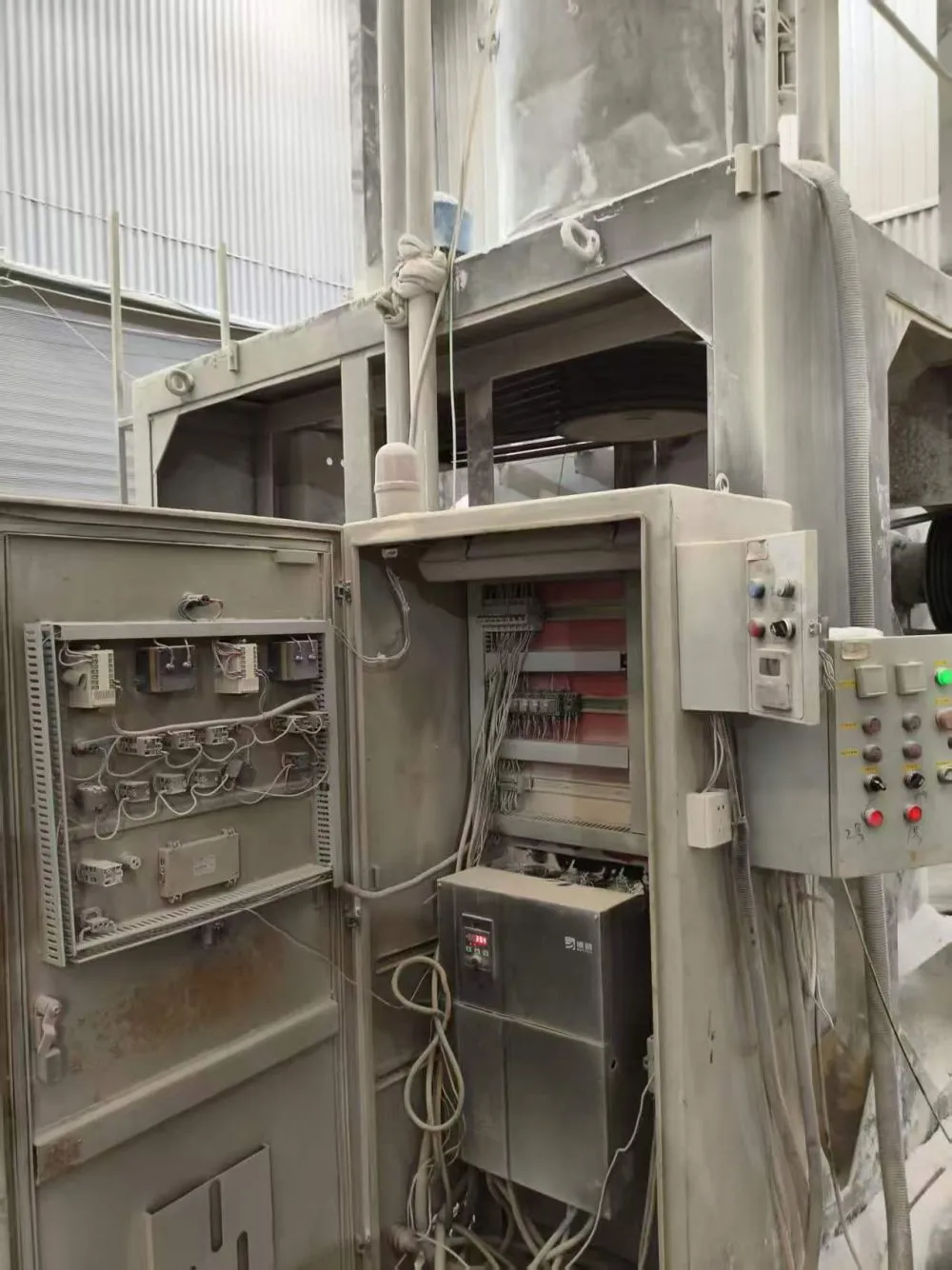

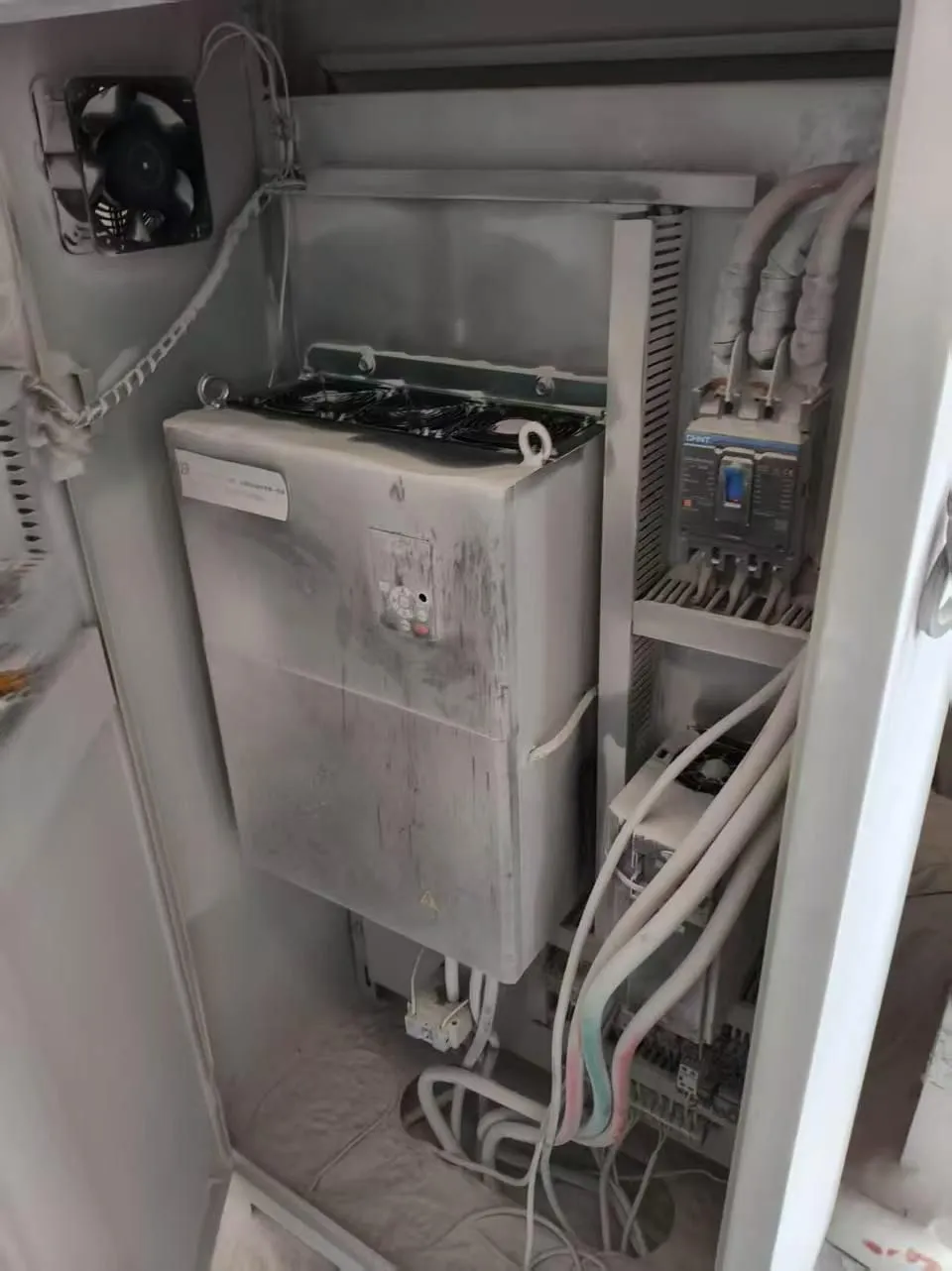

Botten A900Plus VFD/VSD/AC Drive/Frequency Converter Service Case
Botten A900Plus VFD/VSD/AC Drive/Frequency Converter Products List
| Power (KW) | Model | Voltage | Power (KW) | Model | Voltage |
| 4kw/5.5kw | A900PLUS-3T4R0GB/5R5PB |
Input: 220±15% VAC,3-phase, 50/60Hz Output: 220±15% VAC,3-phase, 50/60Hz |
18.5kw/22kw | A900PLUS-4T018GB/022PB |
Input: 380±15% VAC,3-phase, 50/60Hz Output: 380±15% VAC,3-phase, 50/60Hz |
| 5.5kw/7.5KW | A900PLUS-3T5R5GB/7R5PB | 22kw/30kw | A900PLUS-4T022GB/030PB | ||
| 7.5kw/11KW | A900PLUS-3T7R5GB/011PB | 30kw/37kw | A900PLUS-4T030G/037P | ||
| 11kw/15KW | A900PLUS-3T011GB/015PB | 37kw/45kw | A900PLUS-4T037G/045P | ||
| 15kw/18.5KW | A900PLUS-3T015GB/018PB | 45kw/55kw | A900PLUS-4T045G/055P | ||
| 18.5kw/22KW | A900PLUS-3T018GB/022PB | 55kw/75kw | A900PLUS-4T055G/075P | ||
| 22kw/30KW | A900PLUS-3T022GB/030PB | 75kw/93kw | A900PLUS-4T075G/093P | ||
| 30kw/37KW | A900PLUS-3T030G/037P | 93kw/110kw | A900PLUS-4T093G/110P | ||
| 37kw/45KW | A900PLUS-3T037G/045P | 110kw/132kw | A900PLUS-4T110G/132P | ||
| 45kw/55KW | A900PLUS-3T045G/055P | 132kw/160kw | A900PLUS-D4T132G/160P | ||
| 55kw/75KW | A900PLUS-3T055G/075P | 160kw/185kw | A900PLUS-4T160G/185P | ||
| 0.75kw/1.5kw | A900PLUS-4TR75GB/1R5PB |
Input: 380±15% VAC,3-phase, 50/60Hz Output: 380±15% VAC,3-phase, 50/60Hz |
185kw/200kw | A900PLUS-Q4T185G/200P | |
| 1.5kw/2.2kw | A900PLUS-4T1R5GB/2R2PB | 200kw/220kw | A900PLUS-Q4T200G/220P | ||
| 2.2kw/4.0kw | A900PLUS-4T2R2GB/4R0PB | 220kw/250kw | A900PLUS-Q4T220G/250P | ||
| 4.0kw/5.5kw | A900PLUS-4T4R0GB/5R5PB | 250kw/280kw | A900PLUS-Q4T250G/280P | ||
| 5.5kw/7.5kw | A900PLUS-4T5R5GB/7R5PB | 280kw/315kw | A900PLUS-Q4T280G/315P | ||
| 7.5kw/11kw | A900PLUS-4T7R5GB/011PB | 315kw/355kw | A900PLUS-Q4T315G/355P | ||
| 11kw/15kw | A900PLUS-4T011GB/015PB | 355kw/400kw A | A900PLUS-Q4T355/400P | ||
| 15kw/18.5kw | A900PLUS-4T015GB/018PB | 400kw/450kw | A900PLUS-Q4T400/450P |

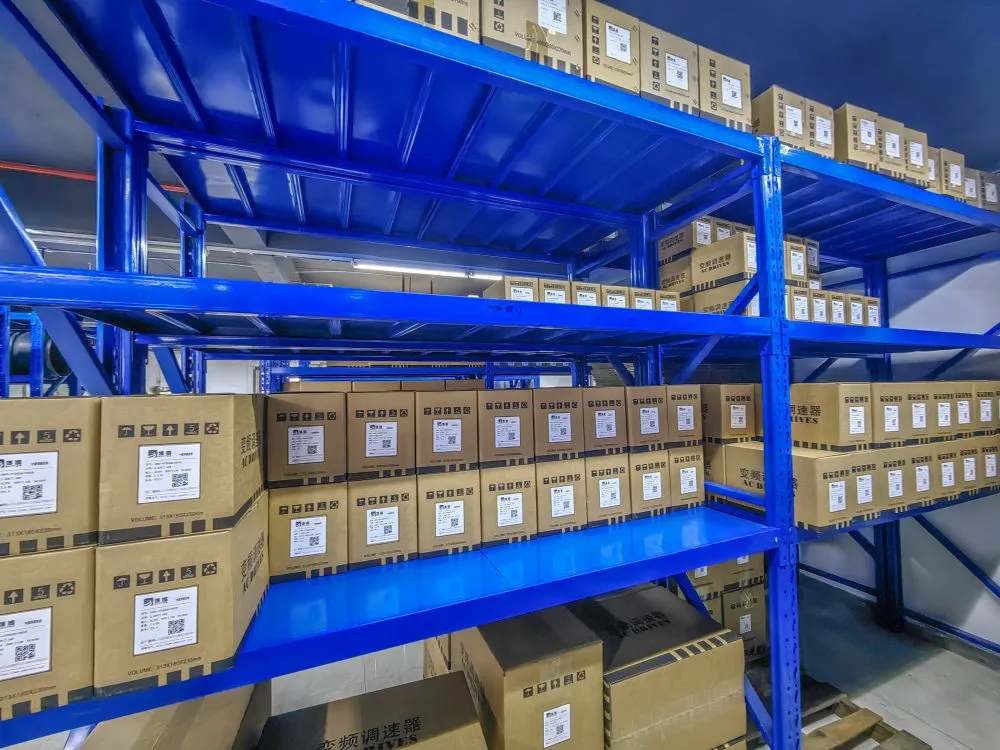

Botten A900Plus VFD/VSD/AC Drive/Frequency Converter Package and Shipping
Botten A900plus variable frequency drive certification:
