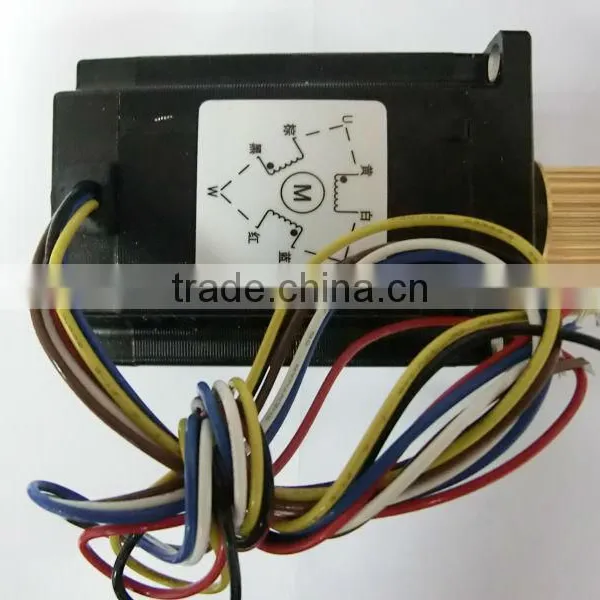

Laser leadshine stepper motor Motor 573s15

Specifications

Laser leadshine stepper motor Motor 573s15 of co2 laser
Ultra low noise
High ratio of performance to price



< Laser leadshine stepper motor Motor 573s15 of co2 laser  >



Technical Specifications

Model No.	phase	Step angle	Hold Torque	Rated current	Phase inductance	Phase resistance	Lead number	Rotor inertia	Positioning torque	Weight	Body length
		(°)	N.M	A	mH	Ohm		g.cm2	Kg.cm	Kg	mm
573S05	3	1.2	0.45	5.2	1.4	1.3	6	110	0.21	0.4	42
573S09	3	1.2	0.9	3.5	1.7	0.8	6	300	0.4	0.75	56
573S15	3	1.2	1.5	5.2	1.35	0.9	6	480	0.68	1.1	79



instructions	unit	min	Typ	max
Output Current	A	2.1	-	8.3
Input supply voltage	VDC	18	36	50
Control signal input current	mA	7	-	16
Step pulse frequency	KHz	0	-	400
Pulse low time	μs	1.2
Insulation resistance	MΩ	500



 Laser engraving & cutting machine spare parts



1.laser tube difference power as:~,60W,70W,80W,100W,110W,130W.etc.

2.RECI laser tube :RECI W2.W4,W6,W8.

3.Water cooling systerm: air pump and water chiller. (CW 3000 water    chiller,CW5000 water chiller etc)

4.laser mirror and focus lens : made in China and imported from UAS.

5.Laser common and RECI power supply:DY10,DY13,DY20.

6.Laser control system such as:MPC6535,6565,AWC608

7.mechanical parts and optical parts.

8.Any kind of laser engraving and cutting parts that you need.
