Specifications

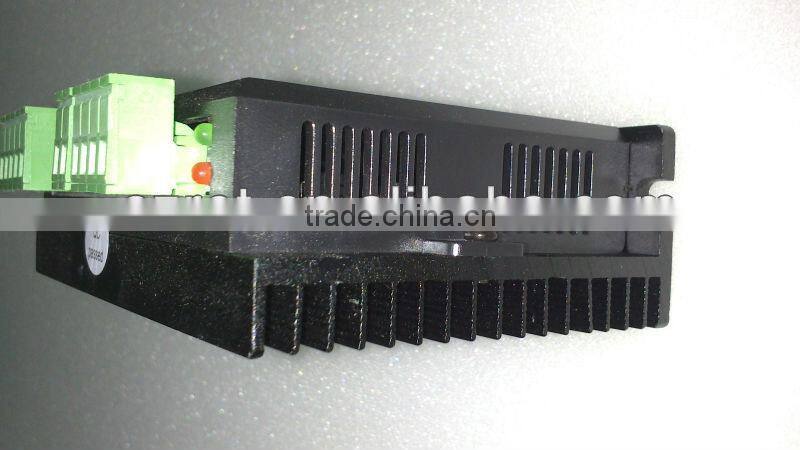

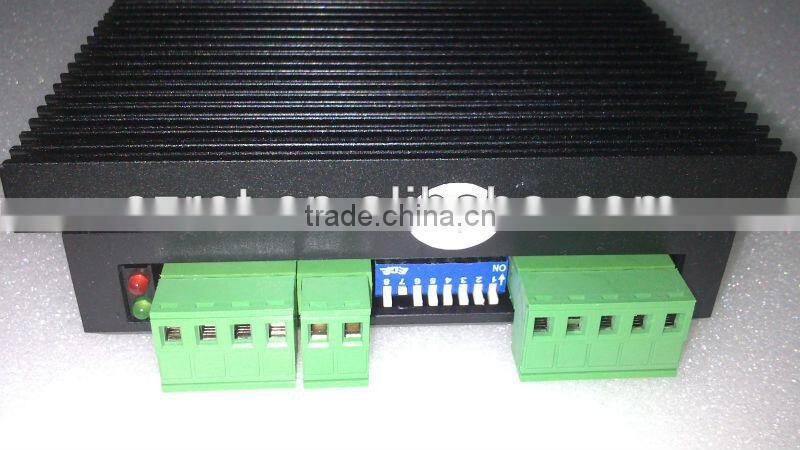

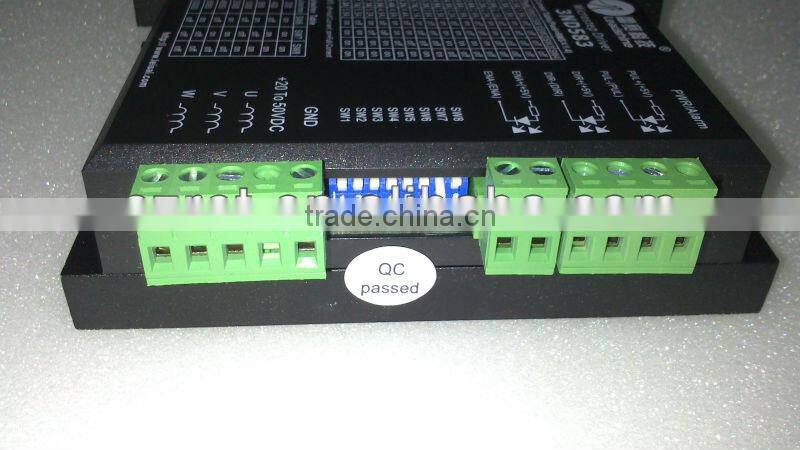

Laser leadshine brand Motor driver 3nd583 suit for driver 3nd583Ultra low noise
High ratio of performance to price
< Laser leadshine brand Motor driver 3nd583 suit for driver 3nd583 >

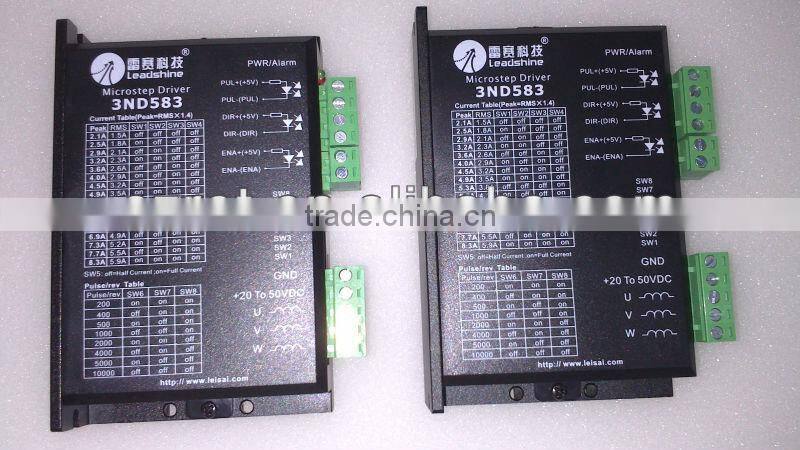

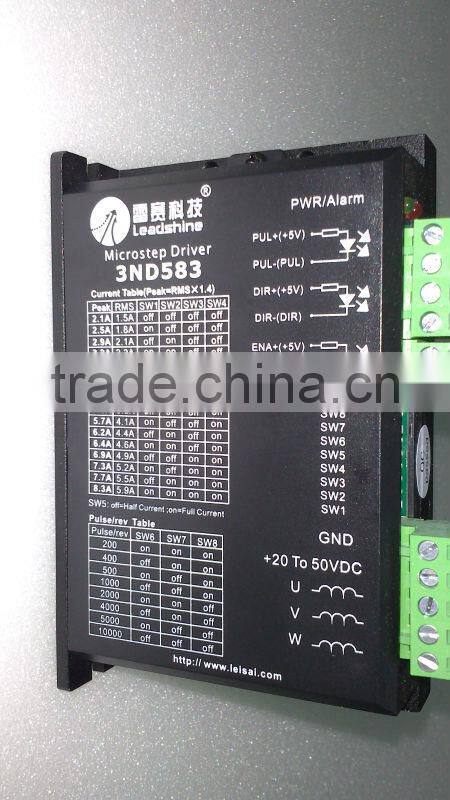

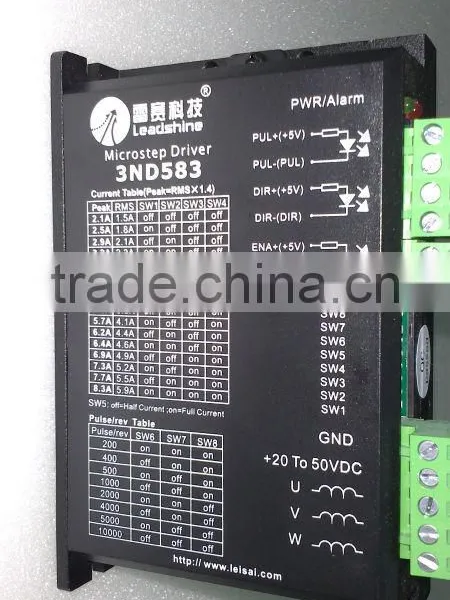

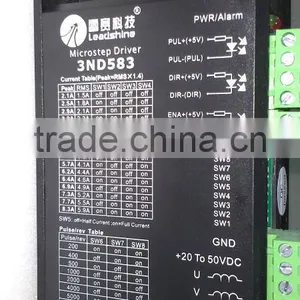

driver 3ND583
Electrical Specifications
instructions | unit | min | Typ | max |
Output Current | A | 2.1 | - | 8.3 |
Input supply voltage | VDC | 18 | 36 | 50 |
Control signal input current | mA | 7 | - | 16 |
Step pulse frequency | KHz | 0 | - | 400 |
Pulse low time | μs | 1.2 |
|
|
Insulation resistance | MΩ | 500 |
|
|
Operating current setting
Output Current - Peak | Output rms current | SW1 | SW2 | SW3 | SW4 |
2.1 A | 1.5A | off | off | off | off |
2.5 A | 1.8A | on | off | off | off |
2.9 A | 2.1A | off | on | off | off |
3.2 A | 2.3A | on | on | off | off |
3.6 A | 2.6A | off | off | on | off |
4.0 A | 2.9A | on | off | on | off |
4.5 A | 3.2A | off | on | on | off |
4.9 A | 3.5A | on | on | on | off |
5.3 A | 3.8A | off | off | off | on |
5.7 A | 4.1A | on | off | off | on |
6.2 A | 4.4A | off | on | off | on |
6.4 A | 4.6A | on | on | off | on |
6.9 A | 4.9A | off | off | on | on |
7.3 A | 5.2A | on | off | on | on |
7.7 A | 5.5A | off | on | on | on |
8.3 A | 5.9A | on | on | on | on |
Micro-step breakdown of set
Number steps/turn | SW6 | SW7 | SW8 |
200 | on | on | on |
400 | off | on | on |
500 | on | off | on |
1000 | off | off | on |
2000 | on | on | off |
4000 | off | on | off |
5000 | on | off | off |
10000 | off | off | off |
Laser engraving & cutting machine spare parts
1.laser tube
2.RECI laser tube :RECI W2.W4,W6,W8.
3.laser mirror and focus lens : made in China and imported from UAS.
4.Laser common and RECI power supply:DY10,DY13,DY20.
5.Any kind of laser engraving and cutting parts that you need.
